Gregorian telescope

The Gregorian telescope is a type of reflecting telescope designed by Scottish mathematician and astronomer James Gregory in the 17th century, and first built in 1673 by Robert Hooke. James Gregory was a contemporary of Isaac Newton. Both often worked simultaneously on similar projects. Gregory's design was published in 1663 and pre-dates the first practical reflecting telescope, the Newtonian telescope, built by Sir Isaac Newton in 1668.[1] However, Gregory's design was only a theoretical description, and he never actually constructed the telescope. It was not successfully built until five years after Newton's first reflecting telescope.

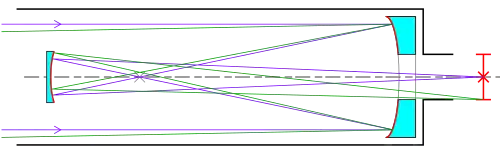

Diagram of the lightpath through a Gregorian telescope

History

The Gregorian telescope is named after the James Gregory design, which appeared in his 1663 publication Optica Promota (The Advance of Optics). Similar theoretical designs have been found in the writings of Bonaventura Cavalieri (Lo Specchio Ustorio (On Burning Mirrors), 1632[2]) and Marin Mersenne (L'harmonie universalle, 1636[3]). Gregory's early attempts to build the telescope failed, since he had no practical skill himself and could find no optician capable of actually constructing one.[4] It was not until ten years after Gregory's publication, aided by the interest of experimental scientist Robert Hooke, that a working instrument was created. The early Scottish optician and telescope maker James Short built Gregorian telescopes with parabolic mirrors made from the highly reflective speculum metal.

Design

The Gregorian telescope consists of two concave mirrors: the primary mirror (a concave paraboloid) collects the light and brings it to a focus before the secondary mirror (a concave ellipsoid), where it is reflected back through a hole in the centre of the primary, and thence out the bottom end of the instrument, where it can be viewed with the aid of the eyepiece.

The Gregorian design solved the problem of viewing the image in a reflector by allowing the observer to stand behind the primary mirror. This design of telescope renders an upright image, making it useful for terrestrial observations. It also works as a telephoto lens in that the tube is much shorter than the system's actual focal length.

The design was largely superseded by the Cassegrain telescope. It is still used for some spotting scopes because this design creates an erect image without the need for prisms. The Steward Observatory Mirror Lab has been making mirrors for large Gregorian telescopes at least since 1985.

In the Gregorian design, the primary mirror creates a real image before the secondary mirror. This allows for a field stop to be placed at this location, so that the light from outside the field of view does not reach the secondary mirror. This is a major advantage for solar telescopes, where a field stop (Gregorian stop) can reduce the amount of heat reaching the secondary mirror and subsequent optical components. The Solar Optical Telescope on the Hinode satellite is one example of this design.

For amateur telescope makers the Gregorian can be less difficult to fabricate than a Cassegrain because the concave secondary is Foucault-testable like the primary, which is not the case with the Cassegrain's convex secondary.

  • A Gregorian telescope circa 1735
  • Side view
  • 1873 diagram of a Gregorian telescope

Examples

See also

References
  1. "Isaac Newton: adventurer in thought", by Alfred Rupert Hall, page 67.
  2. Stargazer, the Life and Times of the Telescope, by Fred Watson, p. 134.
  3. Stargazer, p. 115.
  4. "A Biographical Dictionary of Eminent Scotsmen" by Robert Chambers, Thomas, page 175.
