Helmholtz equation

In mathematics, the eigenvalue problem for the Laplace operator is known as the Helmholtz equation. It corresponds to the linear partial differential equation:

${\displaystyle \nabla ^{2}f=-k^{2}f}$

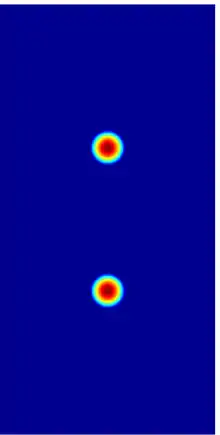

Two sources of radiation in the plane, given mathematically by a function ƒ, which is zero in the blue region

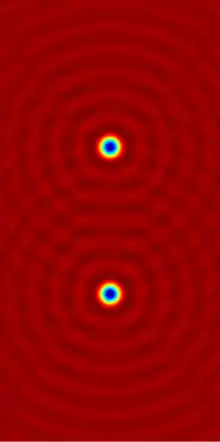

The real part of the resulting field A, A is the solution to the inhomogeneous Helmholtz equation (∇² − k²) A = −f.

where ∇² is the Laplace operator (or "Laplacian"), k² is the eigenvalue, and f is the (eigen)function. When the equation is applied to waves, k is known as the wave number. The Helmholtz equation has a variety of applications in physics, including the wave equation and the diffusion equation, and it has uses in other sciences.

Motivation and uses

The Helmholtz equation often arises in the study of physical problems involving partial differential equations (PDEs) in both space and time. The Helmholtz equation, which represents a time-independent form of the wave equation, results from applying the technique of separation of variables to reduce the complexity of the analysis.

For example, consider the wave equation

${\displaystyle \left(\nabla ^{2}-{\frac {1}{c^{2}}}{\frac {\partial ^{2}}{\partial t^{2}}}\right)u(\mathbf {r} ,t)=0.}$

Separation of variables begins by assuming that the wave function u(r, t) is in fact separable:

${\displaystyle u(\mathbf {r} ,t)=A(\mathbf {r} )T(t).}$

Substituting this form into the wave equation and then simplifying, we obtain the following equation:

${\displaystyle {\frac {\nabla ^{2}A}{A}}={\frac {1}{c^{2}T}}{\frac {\mathrm {d} ^{2}T}{\mathrm {d} t^{2}}}.}$

Notice that the expression on the left side depends only on r, whereas the right expression depends only on t. As a result, this equation is valid in the general case if and only if both sides of the equation are equal to a constant value. This argument is key in the technique of solving linear partial differential equations by separation of variables. From this observation, we obtain two equations, one for A(r), the other for T(t):

${\displaystyle {\frac {\nabla ^{2}A}{A}}=-k^{2}}$

${\displaystyle {\frac {1}{c^{2}T}}{\frac {\mathrm {d} ^{2}T}{\mathrm {d} t^{2}}}=-k^{2},}$

where we have chosen, without loss of generality, the expression −k² for the value of the constant. (It is equally valid to use any constant k as the separation constant; −k² is chosen only for convenience in the resulting solutions.)

Rearranging the first equation, we obtain the Helmholtz equation:

${\displaystyle \nabla ^{2}A+k^{2}A=(\nabla ^{2}+k^{2})A=0.}$

Likewise, after making the substitution ω = kc, where k is the wave number, and ω is the angular frequency, the second equation becomes

${\displaystyle {\frac {\mathrm {d} ^{2}T}{\mathrm {d} t^{2}}}+\omega ^{2}T=\left({\frac {\mathrm {d} ^{2}}{\mathrm {d} t^{2}}}+\omega ^{2}\right)T=0.}$

We now have Helmholtz's equation for the spatial variable r and a second-order ordinary differential equation in time. The solution in time will be a linear combination of sine and cosine functions, whose exact form is determined by initial conditions, while the form of the solution in space will depend on the boundary conditions. Alternatively, integral transforms, such as the Laplace or Fourier transform, are often used to transform a hyperbolic PDE into a form of the Helmholtz equation.

Because of its relationship to the wave equation, the Helmholtz equation arises in problems in such areas of physics as the study of electromagnetic radiation, seismology, and acoustics.

Solving the Helmholtz equation using separation of variables

The solution to the spatial Helmholtz equation:

${\displaystyle \nabla ^{2}A=-k^{2}A}$

can be obtained for simple geometries using separation of variables.

Vibrating membrane

The two-dimensional analogue of the vibrating string is the vibrating membrane, with the edges clamped to be motionless. The Helmholtz equation was solved for many basic shapes in the 19th century: the rectangular membrane by Siméon Denis Poisson in 1829, the equilateral triangle by Gabriel Lamé in 1852, and the circular membrane by Alfred Clebsch in 1862. The elliptical drumhead was studied by Émile Mathieu, leading to Mathieu's differential equation.

If the edges of a shape are straight line segments, then a solution is integrable or knowable in closed-form only if it is expressible as a finite linear combination of plane waves that satisfy the boundary conditions (zero at the boundary, i.e., membrane clamped).

If the domain is a circle of radius a, then it is appropriate to introduce polar coordinates r and θ. The Helmholtz equation takes the form

${\displaystyle A_{rr}+{\frac {1}{r}}A_{r}+{\frac {1}{r^{2}}}A_{\theta \theta }+k^{2}A=0.}$

We may impose the boundary condition that A vanish if r = a; thus

${\displaystyle A(a,\theta )=0.}$

The method of separation of variables leads to trial solutions of the form

${\displaystyle A(r,\theta )=R(r)\Theta (\theta ),}$

where Θ must be periodic of period 2π. This leads to

${\displaystyle \Theta ''+n^{2}\Theta =0,}$

${\displaystyle r^{2}R''+rR'+r^{2}k^{2}R-n^{2}R=0.}$

It follows from the periodicity condition that

${\displaystyle \Theta =\alpha \cos n\theta +\beta \sin n\theta ,}$

and that n must be an integer. The radial component R has the form

${\displaystyle R(r)=\gamma J_{n}(\rho ),\,}$

where the Bessel function J_n(ρ) satisfies Bessel's equation

${\displaystyle \rho ^{2}J_{n}''+\rho J_{n}'+(\rho ^{2}-n^{2})J_{n}=0,}$

and ρ = kr. The radial function J_n has infinitely many roots for each value of n, denoted by ρ_m,n. The boundary condition that A vanishes where r = a will be satisfied if the corresponding wavenumbers are given by

${\displaystyle k_{m,n}={\frac {1}{a}}\rho _{m,n}.}$

The general solution A then takes the form of a generalized Fourier series of terms involving products of J_n(k_m,nr) and the sine (or cosine) of nθ. These solutions are the modes of vibration of a circular drumhead.

Three-dimensional solutions

In spherical coordinates, the solution is:

${\displaystyle A(r,\theta ,\varphi )=\sum _{\ell =0}^{\infty }\sum _{m=-\ell }^{\ell }\left(a_{\ell m}j_{\ell }(kr)+b_{\ell m}y_{\ell }(kr)\right)Y_{\ell }^{m}(\theta ,\varphi ).}$

This solution arises from the spatial solution of the wave equation and diffusion equation. Here j_ℓ(kr) and y_ℓ(kr) are the spherical Bessel functions, and Y^m
_ℓ(θ, φ) are the spherical harmonics (Abramowitz and Stegun, 1964). Note that these forms are general solutions, and require boundary conditions to be specified to be used in any specific case. For infinite exterior domains, a radiation condition may also be required (Sommerfeld, 1949).

Writing r₀ = (x, y, z) function A(r₀) has asymptotics

${\displaystyle A(r_{0})={\frac {e^{ikr_{0}}}{r_{0}}}f\left({\frac {\mathbf {r} _{0}}{r_{0}}},k,u_{0}\right)+o\left({\frac {1}{r_{0}}}\right){\text{ as }}r_{0}\to \infty }$

where function f is called scattering amplitude and u₀(r₀) is the value of A at each boundary point r₀.

Paraxial approximation

In the paraxial approximation of the Helmholtz equation,[1] the complex amplitude A is expressed as

${\displaystyle A(\mathbf {r} )=u(\mathbf {r} )e^{ikz}}$

where u represents the complex-valued amplitude which modulates the sinusoidal plane wave represented by the exponential factor. Then under a suitable assumption, u approximately solves

${\displaystyle \nabla _{\perp }^{2}u+2ik{\frac {\partial u}{\partial z}}=0,}$

where ∇²
_⊥ ≝ ∂²/∂x² + ∂²/∂y² is the transverse part of the Laplacian.

This equation has important applications in the science of optics, where it provides solutions that describe the propagation of electromagnetic waves (light) in the form of either paraboloidal waves or Gaussian beams. Most lasers emit beams that take this form.

The assumption under which the paraxial approximation is valid is that the z derivative of the amplitude function u is a slowly varying function of z:

${\displaystyle {\bigg |}{\partial ^{2}u \over \partial z^{2}}{\bigg |}\ll {\bigg |}{k{\partial u \over \partial z}}{\bigg |}.}$

This condition is equivalent to saying that the angle θ between the wave vector k and the optical axis z is small: θ ≪ 1.

The paraxial form of the Helmholtz equation is found by substituting the above-stated expression for the complex amplitude into the general form of the Helmholtz equation as follows:

${\displaystyle \nabla ^{2}(u\left(x,y,z\right)e^{ikz})+k^{2}u\left(x,y,z\right)e^{ikz}=0.}$

Expansion and cancellation yields the following:

${\displaystyle \left({\frac {\partial ^{2}}{\partial x^{2}}}+{\frac {\partial ^{2}}{\partial y^{2}}}\right)u(x,y,z)e^{ikz}+\left({\frac {\partial ^{2}}{\partial z^{2}}}u(x,y,z)\right)e^{ikz}+2\left({\frac {\partial }{\partial z}}u(x,y,z)\right)ik{e^{ikz}}=0.}$

Because of the paraxial inequality stated above, the ∂²u/∂z² term is neglected in comparison with the k·∂u/∂z term. This yields the paraxial Helmholtz equation. Substituting u(r) = A(r) e^−ikz then gives the paraxial equation for the original complex amplitude A:

${\displaystyle \nabla _{\perp }^{2}A+2ik{\frac {\partial A}{\partial z}}=0.}$

The Fresnel diffraction integral is an exact solution to the paraxial Helmholtz equation.[2]

There is even a subject named "Helmholtz optics" based on the equation, named in honour of Helmholtz.[3][4][5]

Inhomogeneous Helmholtz equation

The inhomogeneous Helmholtz equation is the equation

${\displaystyle \nabla ^{2}A(x)+k^{2}A(x)=-f(x)\ {\text{ in }}\mathbb {R} ^{n},}$

where ƒ : Rⁿ → C is a function with compact support, and n = 1, 2, 3. This equation is very similar to the screened Poisson equation, and would be identical if the plus sign (in front of the k term) is switched to a minus sign.

In order to solve this equation uniquely, one needs to specify a boundary condition at infinity, which is typically the Sommerfeld radiation condition

${\displaystyle \lim _{r\to \infty }r^{\frac {n-1}{2}}\left({\frac {\partial }{\partial r}}-ik\right)A(r{\hat {x}})=0}$

uniformly in ${\displaystyle {\hat {x}}}$ with ${\displaystyle |{\hat {x}}|=1}$, where the vertical bars denote the Euclidean norm.

With this condition, the solution to the inhomogeneous Helmholtz equation is the convolution

${\displaystyle A(x)=(G*f)(x)=\int \limits _{\mathbb {R} ^{n}}\!G(x-y)f(y)\,\mathrm {d} y}$

(notice this integral is actually over a finite region, since f has compact support). Here, G is the Green's function of this equation, that is, the solution to the inhomogeneous Helmholtz equation with ƒ equaling the Dirac delta function, so G satisfies

${\displaystyle \nabla ^{2}G(x)+k^{2}G(x)=-\delta (x)\in \mathbb {R} ^{n}.\,}$

The expression for the Green's function depends on the dimension n of the space. One has

${\displaystyle G(x)={\frac {ie^{ik|x|}}{2k}}}$

for n = 1,

${\displaystyle G(x)={\frac {i}{4}}H_{0}^{(1)}(k|x|)}$

for n = 2,[6] where H⁽¹⁾
₀ is a Hankel function, and

${\displaystyle G(x)={\frac {e^{ik|x|}}{4\pi |x|}}}$

for n = 3. Note that we have chosen the boundary condition that the Green's function is an outgoing wave for |x| → ∞.

See also

• Laplace's equation (a particular case of the Helmholtz equation)
