Himmelblau's function

In mathematical optimization, Himmelblau's function is a multi-modal function, used to test the performance of optimization algorithms. The function is defined by:

${\displaystyle f(x,y)=(x^{2}+y-11)^{2}+(x+y^{2}-7)^{2}.\quad }$

Himmelblau's function

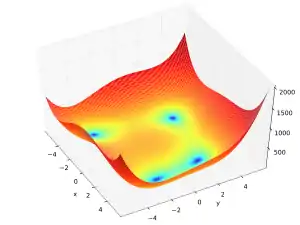

In 3D

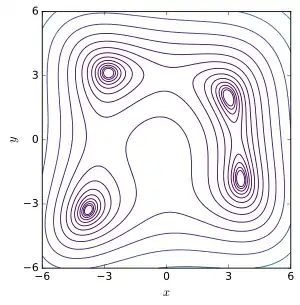

Log-spaced level curve plot

It has one local maximum at ${\displaystyle x=-0.270845}$ and ${\displaystyle y=-0.923039}$ where ${\displaystyle f(x,y)=181.617}$, and four identical local minima:

• ${\displaystyle f(3.0,2.0)=0.0,\quad }$
• ${\displaystyle f(-2.805118,3.131312)=0.0,\quad }$
• ${\displaystyle f(-3.779310,-3.283186)=0.0,\quad }$
• ${\displaystyle f(3.584428,-1.848126)=0.0.\quad }$

The locations of all the minima can be found analytically. However, because they are roots of cubic polynomials, when written in terms of radicals, the expressions are somewhat complicated.

The function is named after David Mautner Himmelblau (1924–2011), who introduced it.[1]

See also

• Test functions for optimization

References

1. Himmelblau, D. (1972). Applied Nonlinear Programming. McGraw-Hill. ISBN 0-07-028921-2.
