Magnetic reconnection

Magnetic reconnection is a physical process occurring in highly conducting plasmas in which the magnetic topology is rearranged and magnetic energy is converted to kinetic energy, thermal energy, and particle acceleration. Magnetic reconnection occurs on timescales intermediate between slow resistive diffusion of the magnetic field and fast Alfvénic timescales.

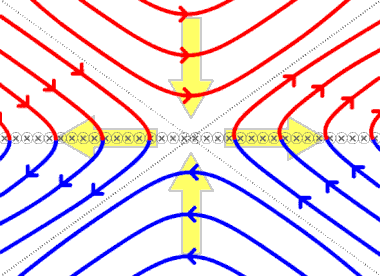

Magnetic reconnection: This view is a cross-section through four magnetic domains undergoing separator reconnection. Two separatrices (see text) divide space into four magnetic domains with a separator at the center of the figure. Field lines (and associated plasma) flow inward from above and below the separator, reconnect, and spring outward horizontally. A current sheet (as shown) may be present but is not required for reconnection to occur. This process is not well understood: once started, it proceeds many orders of magnitude faster than predicted by standard models.

According to simple resistive magnetohydrodynamics (MHD) theory, reconnection happens because the plasma's electrical resistivity near the boundary layer opposes the currents necessary to sustain the change in the magnetic field. The need for such a current can be seen from one of Maxwell's equations,

${\displaystyle \nabla \times \mathbf {B} =\mu \mathbf {J} +\mu \epsilon {\frac {\partial \mathbf {E} }{\partial t}}.}$

The resistivity of the current layer allows magnetic flux from either side to diffuse through the current layer, cancelling outflux from the other side of the boundary. When this happens, the plasma is pulled out by magnetic tension along the direction of the magnetic field lines. The resulting drop in pressure pulls more plasma and magnetic flux into the central region, yielding a self-sustaining process.

A current problem in plasma physics is that observed reconnection happens much faster than predicted by MHD in high Lundquist number plasmas (i.e. fast magnetic reconnection). Solar flares, for example, proceed 13–14 orders of magnitude faster than a naive calculation would suggest, and several orders of magnitude faster than current theoretical models that include turbulence and kinetic effects. One possible mechanism to explain the discrepancy is that the electromagnetic turbulence in the boundary layer is sufficiently strong to scatter electrons, raising the plasma's local resistivity. This would allow the magnetic flux to diffuse faster.

Properties

Physical interpretation

The qualitative description of the reconnection process is such that magnetic field lines from different magnetic domains (defined by the field line connectivity) are spliced to one another, changing their patterns of connectivity with respect to the sources. It is a violation of an approximate conservation law in plasma physics, called Alfvén's theorem, and can concentrate mechanical or magnetic energy in both space and time. Solar flares, the largest explosions in the Solar System, may involve the reconnection of large systems of magnetic flux on the Sun, releasing, in minutes, energy that has been stored in the magnetic field over a period of hours to days. Magnetic reconnection in Earth's magnetosphere is one of the mechanisms responsible for the aurora, and it is important to the science of controlled nuclear fusion because it is one mechanism preventing magnetic confinement of the fusion fuel.

In an electrically conductive plasma, magnetic field lines are grouped into 'domains'— bundles of field lines that connect from a particular place to another particular place, and that are topologically distinct from other field lines nearby. This topology is approximately preserved even when the magnetic field itself is strongly distorted by the presence of variable currents or motion of magnetic sources, because effects that might otherwise change the magnetic topology instead induce eddy currents in the plasma; the eddy currents have the effect of canceling out the topological change.

Types of reconnection

In two dimensions, the most common type of magnetic reconnection is separator reconnection, in which four separate magnetic domains exchange magnetic field lines. Domains in a magnetic plasma are separated by separatrix surfaces: curved surfaces in space that divide different bundles of flux. Field lines on one side of the separatrix all terminate at a particular magnetic pole, while field lines on the other side all terminate at a different pole of similar sign. Since each field line generally begins at a north magnetic pole and ends at a south magnetic pole, the most general way of dividing simple flux systems involves four domains separated by two separatrices: one separatrix surface divides the flux into two bundles, each of which shares a south pole, and the other separatrix surface divides the flux into two bundles, each of which shares a north pole. The intersection of the separatrices forms a separator, a single line that is at the boundary of the four separate domains. In separator reconnection, field lines enter the separator from two of the domains, and are spliced one to the other, exiting the separator in the other two domains (see the first figure).

In three dimensions, the geometry of the field lines become more complicated than the two-dimensional case and it is possible for reconnection to occur in regions where a separator does not exist, but with the field lines connected by steep gradients.[2] These regions are known as quasi-separatrix layers (QSLs), and have been observed in theoretical configurations[3] and solar flares.[4][5]

Theoretical descriptions

Slow reconnection: Sweet–Parker model

The first theoretical framework of magnetic reconnection was established by Peter Sweet and Eugene Parker at a conference in 1956. Sweet pointed out that by pushing two plasmas with oppositely directed magnetic fields together, resistive diffusion is able to occur on a length scale much shorter than a typical equilibrium length scale.[6] Parker was in attendance at this conference and developed scaling relations for this model during his return travel.[7]

The Sweet–Parker model describes time-independent magnetic reconnection in the resistive MHD framework when the reconnecting magnetic fields are antiparallel (oppositely directed) and effects related to viscosity and compressibility are unimportant. The initial velocity is simply an ${\displaystyle E\times B}$ velocity, so

${\displaystyle E_{y}=v_{\text{in}}B_{\text{in}}}$

where ${\displaystyle E_{y}}$ is the out-of-plane electric field, ${\displaystyle v_{\text{in}}}$ is the characteristic inflow velocity, and ${\displaystyle B_{\text{in}}}$ is the characteristic upstream magnetic field strength. By neglecting displacement current, the low-frequency Ampere's law, ${\displaystyle \mathbf {J} ={\frac {1}{\mu _{0}}}\nabla \times \mathbf {B} }$, gives the relation

${\displaystyle J_{y}\sim {\frac {B_{\text{in}}}{\mu _{0}\delta }},}$

where ${\displaystyle \delta }$ is the current sheet half-thickness. This relation uses that the magnetic field reverses over a distance of ${\displaystyle \sim 2\delta }$. By matching the ideal electric field outside of the layer with the resistive electric field ${\displaystyle \mathbf {E} ={\frac {1}{\sigma }}\mathbf {J} }$ inside the layer (using Ohm's law), we find that

${\displaystyle v_{\text{in}}={\frac {E_{y}}{B_{\text{in}}}}\sim {\frac {1}{\mu _{0}\sigma \delta }}={\frac {\eta }{\delta }},}$

where ${\displaystyle \eta }$ is the magnetic diffusivity. When the inflow density is comparable to the outflow density, conservation of mass yields the relationship

${\displaystyle v_{\text{in}}L\sim v_{\text{out}}\delta ,}$

where ${\displaystyle L}$ is the half-length of the current sheet and ${\displaystyle v_{\text{out}}}$ is the outflow velocity. The left and right hand sides of the above relation represent the mass flux into the layer and out of the layer, respectively. Equating the upstream magnetic pressure with the downstream dynamic pressure gives

${\displaystyle {\frac {B_{\text{in}}^{2}}{2\mu _{0}}}\sim {\frac {\rho v_{\text{out}}^{2}}{2}}}$

where ${\displaystyle \rho }$ is the mass density of the plasma. Solving for the outflow velocity then gives

${\displaystyle v_{\text{out}}\sim {\frac {B_{\text{in}}}{\sqrt {\mu _{0}\rho }}}\equiv v_{A}}$

where ${\displaystyle v_{A}}$ is the Alfvén velocity. With the above relations, the dimensionless reconnection rate ${\displaystyle R}$ can then be written in two forms, the first in terms of ${\displaystyle (\eta ,\delta ,v_{A})}$ using the result earlier derived from Ohm's law, the second in terms of ${\displaystyle (\delta ,L)}$ from the conservation of mass as

${\displaystyle R={\frac {v_{\text{in}}}{v_{\text{out}}}}\sim {\frac {\eta }{v_{A}\delta }}\sim {\frac {\delta }{L}}.}$

Since the dimensionless Lundquist number ${\displaystyle S}$ is given by

${\displaystyle S\equiv {\frac {Lv_{A}}{\eta }},}$

the two different expressions of ${\displaystyle R}$ are multiplied by each other and then square-rooted, giving a simple relation between the reconnection rate ${\displaystyle R}$ and the Lundquist number ${\displaystyle S}$

${\displaystyle R~\sim {\sqrt {\frac {\eta }{v_{A}L}}}={\frac {1}{S^{\frac {1}{2}}}}.}$

Sweet–Parker reconnection allows for reconnection rates much faster than global diffusion, but is not able to explain the fast reconnection rates observed in solar flares, the Earth's magnetosphere, and laboratory plasmas. Additionally, Sweet–Parker reconnection neglects three-dimensional effects, collisionless physics, time-dependent effects, viscosity, compressibility, and downstream pressure. Numerical simulations of two-dimensional magnetic reconnection typically show agreement with this model.[8] Results from the Magnetic Reconnection Experiment (MRX) of collisional reconnection show agreement with a generalized Sweet–Parker model which incorporates compressibility, downstream pressure and anomalous resistivity.[9][10]

Fast reconnection: Petschek model

One of the reasons why Sweet–Parker reconnection is slow is that the aspect ratio of the reconnection layer is very large in high Lundquist number plasmas. The inflow velocity, and thus the reconnection rate, must then be very small. In 1964, Harry Petschek proposed a mechanism where the inflow and outflow regions are separated by stationary slow mode shocks.[11] The aspect ratio of the diffusion region is then of order unity and the maximum reconnection rate becomes

${\displaystyle {\frac {v_{\text{in}}}{v_{A}}}\approx {\frac {\pi }{8\ln S}}.}$

This expression allows for fast reconnection and is almost independent of the Lundquist number.

Simulations of resistive MHD reconnection with uniform resistivity showed the development of elongated current sheets in agreement with the Sweet–Parker model rather than the Petschek model. When a localized anomalously large resistivity is used, however, Petschek reconnection can be realized in resistive MHD simulations. Because the use of an anomalous resistivity is only appropriate when the particle mean free path is large compared to the reconnection layer, it is likely that other collisionless effects become important before Petschek reconnection can be realized.

Anomalous resistivity and Bohm diffusion

In the Sweet–Parker model, the common assumption is that the magnetic diffusivity is constant. This can be estimated using the equation of motion for an electron with mass ${\displaystyle m}$ and electric charge ${\displaystyle e}$:

${\displaystyle {d{\mathbf {v} } \over dt}={e \over m}\mathbf {E} -\nu \mathbf {v} ,}$

where ${\displaystyle \nu }$ is the collision frequency. Since in the steady state, ${\displaystyle d{\mathbf {v} }/dt=0}$, then the above equation along with the definition of electric current, ${\displaystyle {\mathbf {J} }=en{\mathbf {v} }}$, where ${\displaystyle n}$ is the electron number density, yields

${\displaystyle \eta =\nu {c^{2} \over \omega _{pi}^{2}}.}$

Nevertheless, if the drift velocity of electrons exceeds the thermal velocity of plasma, a steady state cannot be achieved and magnetic diffusivity should be much larger than what is given in the above. This is called anomalous resistivity, ${\displaystyle \eta _{\text{anom}}}$, which can enhance the reconnection rate in the Sweet–Parker model by a factor of ${\displaystyle \eta _{\text{anom}}/\eta }$.

Another proposed mechanism is known as the Bohm diffusion across the magnetic field. This replaces the Ohmic resistivity with ${\displaystyle v_{A}^{2}(mc/eB)}$, however, its effect, similar to the anomalous resistivity, is still too small compared with the observations.[12]

Stochastic reconnection

In stochastic reconnection,[13] magnetic field has a small scale random component arising because of turbulence.[14] For the turbulent flow in the reconnection region, a model for magnetohydrodynamic turbulence should be used such as the model developed by Goldreich and Sridhar in 1995.[15] This stochastic model is independent of small scale physics such as resistive effects and depends only on turbulent effects.[16] Roughly speaking, in stochastic model, turbulence brings initially distant magnetic field lines to small separations where they can reconnect locally (Sweet-Parker type reconnection) and separate again due to turbulent super-linear diffusion (Richardson diffusion [17]). For a current sheet of the length ${\displaystyle L}$, the upper limit for reconnection velocity is given by

${\displaystyle v=v_{\text{turb}}\;\operatorname {min} \left[\left({L \over l}\right)^{\frac {1}{2}},\left({l \over L}\right)^{\frac {1}{2}}\right],}$

where ${\displaystyle v_{\text{turb}}=v_{l}^{2}/v_{A}}$. Here ${\displaystyle l}$, and ${\displaystyle v_{l}}$are turbulence injection length scale and velocity respectively and ${\displaystyle v_{A}}$is the Alfvén velocity. This model has been successfully tested by numerical simulations.[18][19]

Non-MHD process: Collisionless reconnection

On length scales shorter than the ion inertial length ${\displaystyle c/\omega _{pi}}$ (where ${\displaystyle \omega _{pi}\equiv {\sqrt {\frac {n_{i}Z^{2}e^{2}}{\epsilon _{0}m_{i}}}}}$ is the ion plasma frequency), ions decouple from electrons and the magnetic field becomes frozen into the electron fluid rather than the bulk plasma. On these scales, the Hall effect becomes important. Two-fluid simulations show the formation of an X-point geometry rather than the double Y-point geometry characteristic of resistive reconnection. The electrons are then accelerated to very high speeds by Whistler waves. Because the ions can move through a wider "bottleneck" near the current layer and because the electrons are moving much faster in Hall MHD than in standard MHD, reconnection may proceed more quickly. Two-fluid/collisionless reconnection is particularly important in the Earth's magnetosphere.

Observations of magnetic reconnection in nature and the laboratory

Solar atmosphere

Magnetic reconnection occurs during solar flares, coronal mass ejections, and many other events in the solar atmosphere. The observational evidence for solar flares includes observations of inflows/outflows, downflowing loops, and changes in the magnetic topology. In the past, observations of the solar atmosphere were done using remote imaging; consequently, the magnetic fields were inferred or extrapolated rather than observed directly. However, the first direct observations of solar magnetic reconnection were gathered in 2012 (and released in 2013) by the High Resolution Coronal Imager.[20]

Earth's magnetosphere

Magnetic reconnection events that occur in the Earth's magnetosphere (in the dayside magnetopause and in the magnetotail) were observed by spacecraft such as Cluster II[21] and the Magnetospheric Multiscale Mission.[22] Cluster II is a four-spacecraft mission, with the four spacecraft arranged in a tetrahedron to separate the spatial and temporal changes as the suite flies through space. It has observed numerous reconnection events in which the Earth's magnetic field reconnects with that of the Sun (i.e. the Interplanetary Magnetic Field). These include 'reverse reconnection' that causes sunward convection in the Earth's ionosphere near the polar cusps; 'dayside reconnection', which allows the transmission of particles and energy into the Earth's vicinity and 'tail reconnection', which causes auroral substorms by injecting particles deep into the magnetosphere and releasing the energy stored in the Earth's magnetotail. The Magnetospheric Multiscale Mission, launched on 13 March 2015, improved the spatial and temporal resolution of the Cluster II results by having a tighter constellation of spacecraft. This led to a better understanding of the behavior of the electrical currents in the electron diffusion region.

On 26 February 2008, THEMIS probes were able to determine the triggering event for the onset of magnetospheric substorms.[23] Two of the five probes, positioned approximately one third the distance to the Moon, measured events suggesting a magnetic reconnection event 96 seconds prior to auroral intensification.[24] Dr. Vassilis Angelopoulos of the University of California, Los Angeles, who is the principal investigator for the THEMIS mission, claimed, "Our data show clearly and for the first time that magnetic reconnection is the trigger.".[25]

Laboratory plasma experiments

Magnetic reconnection has also been observed in numerous laboratory experiments. For example, studies on the LArge Plasma Device (LAPD) at UCLA have observed and mapped quasi-sepratrix layers near the magnetic reconnection region of a two flux rope system,[26][27] while experiments on the Magnetic Reconnection Experiment (MRX) at the Princeton Plasma Physics Laboratory (PPPL) have confirmed many aspects of magnetic reconnection, including the Sweet–Parker model in regimes where the model is applicable.[28]

The confinement of plasma in devices such as tokamaks, spherical tokamaks, and reversed field pinches requires the presence of closed magnetic flux surfaces. By changing the magnetic topology, magnetic reconnection degrades confinement by disrupting these closed flux surfaces, allowing the hot central plasma to mix with cooler plasma closer to the wall.
