Spontaneous parametric down-conversion

Spontaneous parametric down-conversion (also known as SPDC, parametric fluorescence or parametric scattering) is a nonlinear instant optical process that converts one photon of higher energy (namely, a pump photon), into a pair of photons (namely, a signal photon, and an idler photon) of lower energy, in accordance with the law of conservation of energy and law of conservation of momentum. It is an important process in quantum optics, for the generation of entangled photon pairs, and of single photons.

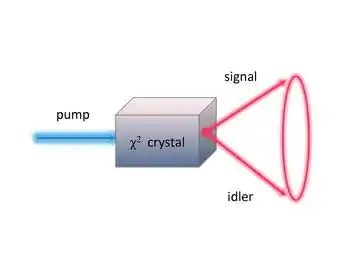

Schematic of SPDC process. Note that conservation laws are with respect to energy and momentum inside the crystal.

Basic process
An SPDC scheme with the Type I output

A nonlinear crystal is used to split photon beams into pairs of photons that, in accordance with the law of conservation of energy and law of conservation of momentum, have combined energies and momenta equal to the energy and momentum of the original photon and crystal lattice. Because the index of refraction changes with frequency, only certain triplets of frequencies will be phase-matched so that simultaneous energy and momentum conservation can be achieved. Phase-matching is most commonly achieved using birefringent nonlinear materials, whose index of refraction changes with polarization. As a result of this, different types of SPDC are categorized by the polarizations of the input photon (the pump) and the two output photons (signal and idler). If the signal and idler photons share the same polarization with each other and with the destroyed pump photon it is deemed Type-0 SPDC;[1] if the signal and idler photons share the same polarization to each other, but are orthogonal to the pump polarization, it is Type-I SPDC. If the signal and idler photons have perpendicular polarizations, it is deemed Type II SPDC[2]

The conversion efficiency of SPDC is typically very low, with the highest efficiency obtained on the order of 4 pairs per 106 incoming photons for PPLN in waveguides.[3] However, if one half of the pair (the "signal") is detected at any time then its partner (the "idler") is known to be present. The degenerate portion of the output of a Type I down converter is a squeezed vacuum that contains only even photon number terms. The degenerate output of the Type II down converter is a two-mode squeezed vacuum.

Example

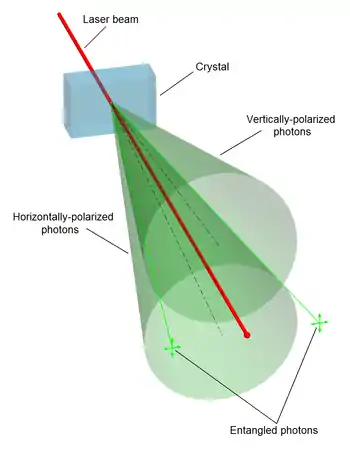

An SPDC scheme with the Type II output

In a commonly used SPDC apparatus design, a strong laser beam, termed the "pump" beam, is directed at a BBO (beta-barium borate) or Lithium niobate crystal. Most of the photons continue straight through the crystal. However, occasionally, some of the photons undergo spontaneous down-conversion with Type II polarization correlation, and the resultant correlated photon pairs have trajectories that are constrained along the edges of two cones, whose axes are symmetrically arranged relative to the pump beam. Also, due to the conservation of momentum, the two photons are always symmetrically located along the edges of the cones, relative to the pump beam. Importantly, the trajectories of the photon pairs may exist simultaneously in the two lines where the cones intersect. This results in entanglement of the photon pairs whose polarizations are perpendicular.[4][5]:205

Another crystal is KDP (potassium dihydrogen phosphate) which is mostly used in Type I down conversion, where both photons have the same polarization.[6]

History

SPDC was described as early as 1970 by David Klyshko and coauthors,[7] and D. C. Burnham and D. L. Weinberg.[8][9] It was first applied to experiments related to coherence by two independent pairs of researchers in the late 1980s: Carroll Alley and Yanhua Shih, and Rupamanjari Ghosh and Leonard Mandel.[10][11] The duality between incoherent (Van Cittert–Zernike theorem) and biphoton emissions was found.[12]

Applications

SPDC allows for the creation of optical fields containing (to a good approximation) a single photon. As of 2005, this is the predominant mechanism for an experimenter to create single photons (also known as Fock states).[13] The single photons as well as the photon pairs are often used in quantum information experiments and applications like quantum cryptography and Bell test experiments.

SPDC is widely used to create pairs of entangled photons with a high degree of spatial correlation.[14] Such pairs are used in ghost imaging, in which information is combined from two light detectors: a conventional, multi-pixel detector that doesn't view the object, and a single-pixel (bucket) detector that does view the object.

Alternatives

The newly observed effect of two-photon emission from electrically driven semiconductors has been proposed as a basis for more efficient sources of entangled photon pairs.[15] Other than SPDC-generated photon pairs, the photons of a semiconductor-emitted pair usually are not identical but have different energies.[16] Until recently, within the constraints of quantum uncertainty, the pair of emitted photons were assumed to be co-located: they are born from the same location. However, a new nonlocalized mechanism for the production of correlated photon pairs in SPDC has highlighted that occasionally the individual photons that constitute the pair can be emitted from spatially separated points.[17][18]
