Type-II superconductor

In superconductivity, a type-II superconductor is a superconductor which exhibits an intermediate phase of mixed ordinary and superconducting properties at intermediate temperature and fields above the superconducting phases. It also features the formation of magnetic field vortices with an applied external magnetic field. This occurs above a certain critical field strength Hc1. The vortex density increases with increasing field strength. At a higher critical field Hc2, superconductivity is destroyed. Type-II superconductors do not exhibit a complete Meissner effect. [2]

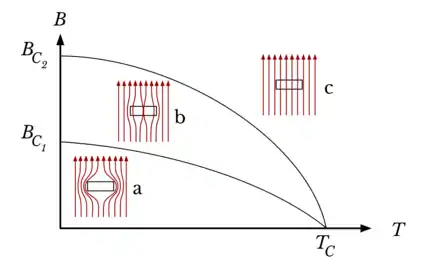

Superconductive behavior under varying magnetic field and temperature. The graph shows magnetic flux B as a function of absolute temperature T. Critical magnetic flux densities BC1 and BC2 and the critical temperature TC are labeled. In the lower region of this graph, both Type-I and Type-II superconductors display the Meissner effect (a). A mixed state (b), in which some field lines are captured in magnetic field vortices, occurs only in Type-II superconductors within a limited region of the graph. Beyond this region, the superconductive property breaks down, and the material behaves as a normal conductor (c).
Vortices in a 200-nm-thick YBCO film imaged by scanning SQUID microscopy[1]

History

In 1935, Rjabinin and Shubnikov[3][4] experimentally discovered the Type-II superconductors. In 1950, the theory of the two types of superconductors was further developed by Lev Landau and Vitaly Ginzburg in their paper on Ginzburg–Landau theory.[5] In their argument, a type-I superconductor had positive free energy of the superconductor-normal metal boundary. Ginzburg and Landau pointed out the possibility of type-II superconductors that should form inhomogeneous state in strong magnetic fields. However, at that time, all known superconductors were type-I, and they commented that there was no experimental motivation to consider precise structure of type-II superconducting state. The theory for the behavior of the Type-II superconducting state in magnetic field was greatly improved by Alexei Alexeyevich Abrikosov, who was elaborating on the ideas by Lars Onsager and Richard Feynman of quantum vortices in superfluids. Quantum vortex solution in a superconductor is also very closely related to Fritz London's work on magnetic flux quantization in superconductors. The Nobel Prize in Physics was awarded for the theory of Type-II superconductivity in 2003.[6]

Vortex state

Ginzburg–Landau theory defines two parameters: The superconducting coherence length and the London magnetic field penetration depth. In a type-II superconductor, the coherence length is smaller than the penetration depth. This leads to negative energy of the interface between superconducting and normal phases. The existence of the negative interface energy was known since the mid-1930s from the early works by the London brothers. A negative interface energy suggests that the system should be unstable against maximizing the number of such interfaces, which was not observed in first experiments on superconductors, before the experiments of Shubnikov in 1936 where two critical fields were found. In 1952 observation of type-II superconductivity was also reported by Zavaritskii. As was later discussed by A. A. Abrikosov, these interfaces manifest as lines of magnetic flux passing through the material, turning a region of the superconductor normal. This normal region is separated from the rest of the superconductor by a circulating supercurrent. In analogy with fluid dynamics, the swirling supercurrent creates what is known as a vortex, or an Abrikosov vortex, after Alexei Alexeyevich Abrikosov. In the limit of very short coherence length the vortex solution is identical to London's fluxoid, where vortex core is approximated by sharp cutoff rather than gradually vanishing of superconducting condensate near the vortex center. Abrikosov found that the vortices arrange themselves into a regular array known as a vortex lattice.[6]

Flux pinning

In the vortex state, a phenomenon known as flux pinning becomes possible. This is not possible with type-I superconductors, since they cannot be penetrated by magnetic fields.[7]

If a superconductor is cooled in a field, the field can be trapped, which can allow the superconductor to be suspended over a magnet, with the potential for a frictionless joint or bearing. The worth of flux pinning is seen through many implementations such as lifts, frictionless joints, and transportation. The thinner the superconducting layer, the stronger the pinning that occurs when exposed to magnetic fields.

Irreversibility field

The flux tubes can form a lattice. When the field strength exceeds an irreversibilty field (HIrr or H*) the flux tubes in a conductor can move (and cause resistive losses).[8][9]:Section3 HIrr as a function of temperature, can be plotted as an irreversibility line.[10] This irreversibility field (when flux tubes start moving) can be a limit for high current applications.[9]

Materials

Type-II superconductors are usually made of metal alloys or complex oxide ceramics. All high temperature superconductors are type-II superconductors. While most elemental superconductors are type-I, niobium, vanadium, and technetium are elemental type-II superconductors. Boron-doped diamond and silicon are also type-II superconductors. Metal alloy superconductors also exhibit type-II behavior (e.g. niobium-titanium and niobium-tin).

Other type-II examples are the cuprate-perovskite ceramic materials which have achieved the highest superconducting critical temperatures. These include La1.85Ba0.15CuO4, BSCCO, and YBCO (Yttrium-Barium-Copper-Oxide), which is famous as the first material to achieve superconductivity above the boiling point of liquid nitrogen (77 K). Due to strong vortex pinning, the cuprates are close to ideally hard superconductors.

Important uses

Strong superconducting electromagnets (used in MRI scanners, NMR machines, and particle accelerators) often use coils wound of niobium-titanium wires or, for higher fields, niobium-tin wires. These materials are type-II superconductors with substantial upper critical field Hc2, and in contrast to, for example, the cuprate superconductors with even higher Hc2, they can be easily machined into wires. Recently, however, 2nd generation superconducting tapes are allowing replacement of cheaper niobium-based wires with much more expensive, but superconductive at much higher temperatures and magnetic fields "2nd" generation tapes.
