Type 81 (rocket launcher)

The Type 81 is a self-propelled 122 mm multiple rocket launcher (SPMRL) produced by the People's Republic of China for the People's Liberation Army Ground Force.[2] It is a variant of the Soviet BM-21 Grad.[3] The Type 81 was the first in a family of Chinese self-propelled 122 mm rocket launchers.[2]

Type 81 rocket launcher[1]
TypeSelf-propelled rocket launcher
Rocket artillery
Place of originChina
Production history
Designed1987
Produced1989 – present
Specifications
Mass18 to 30 tons
Length9.8 m (32 ft 2 in)
Width3.24 m (10 ft 8 in)
Height3.50 m (11 ft 6 in) with AAMG
Crew5
Caliber122 mm (4.8 in) (missiles)
Barrels40
Traverse360°
Main
armament
122 mm rockets
Secondary
armament
12.7 mm anti-aircraft machine gun
EngineWR4B-12V150LB 12-cyl diesel
520 hp (382 kW)
Suspensiontorsion bar
Operational
range
450 km (280 mi)
Maximum speed 55 km/h (35 mph)

The spin-stabilized rocket fired by the Type 81 may be armed with a high explosive warhead or a steel fragmentation warhead.[2]

Variants

Type 81

The Type 81 mounts a 40-round launcher on an OQ261 Honyan 6X6 truck chassis.[2]

Type 83

The Type 83 mounts a 24-round launcher on a 6x6 truck chassis.[2]

Type 89

The Type 89, designated PHZ-89 in the PLA, mounts a 40-round launcher on the armoured tracked chassis of the Type 83 self-propelled gun. The rockets may be fired in 20 seconds. The launcher is mounted at the rear with a reload pack in front.[2]

Type 90

The Type 90 mounts a 40-round launcher on a Tiema SC2030 6X6 truck. The truck also carries a reload pack of 40 additional rockets; the launcher to be reloaded within 3 minutes.[2]

Type 90A

The Type 90A is an upgrade of the Type 90. The 40-round launcher is mounted on a Tienna XC2200 6×6 truck, has improved fire control, and a battery may be remotely controlled by a command vehicle. It is manufactured by Norinco.[4]

Type 90B

The Type 90B is an upgrade of the Type 90A. The 40-round launchers are mounted on a Beifang Benchi 2629 6×6 trucks. The system adds WZ551 reconnaissance vehicles, and the command vehicle has improved command and fire control systems.[5]

PR50 SPMRL

Latest version of the series, with fire power increased by 25% to 50 round from the original 40 rounds. Incorporate features of WS SPMRL series so that the operating cost and overall life cycle cost for both. Also incorporated is a feature originated in Type 90B, which is the adoption of rockets of different ranges, so PR50 has a wide range of 20 km to 40 km. The Chinese name for PR50 SPMRL is Sha Chen Bao (沙尘暴), meaning Sandstorm, and the system made its public debut in 2006 at the 6th China International Aviation & Aerospace Exhibition.[6]

WS-22
Weishi WS-22

WS-22 is a guided version of 122 mm PR50 SPMRL with simple cascade inertial terminal guidance, with standard range of 45 km.[7]

SR-4

Development of the Type 81, featuring 40 tubes arranged into two pods. The range is 50 km.[8]

SR-5

SR-5 MRL is a self-propelled MLS which first made its public debut in 2012 Eurosatory, similar to the HIMARS. SR-5 is a fully computerized and digitized system with modular design concept to enable both the 122 mm rocket series and 220 mm rocket series to be adopted on a single chassis, using the same fire control and support systems, hence greatly reduces the operational cost.[9]

The SR-5 has been exported to Algeria, Bahrain and Venezuela.[10][11]

SR-7

The SR-7 is a scaled-down variant, with either one pod of twenty 122 mm rockets or six 220 mm rockets. The maximum range is 50 km for the 122 mm rocket and 70 km for the 220 mm rocket.[12]

Operators

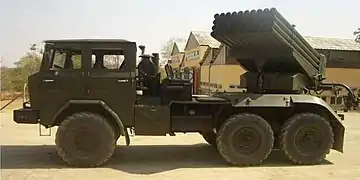

Type-81 MLRS of Myanmar Army.
 Bangladesh
 People's Republic of China
 Myanmar
 Peru
 Indonesia
