Vertical deflection

The vertical deflection (VD), also known as deflection of the plumb line and astro-geodetic deflection, at a point on the Earth is a measure of how far the gravity direction (plumb line) has been shifted by local mass anomalies such as nearby mountains. They are widely used in geodesy, for surveying networks and for geophysical purposes.

For the CRT rastering method, see Cathode ray tube.

The vertical deflection are the angular components between the true zenith (plumb line) and the line perpendicular to the surface of the reference ellipsoid chosen to approximate the Earth's sea-level surface. VDs are caused by mountains and by underground geological irregularities and can amount to angles of 10″ (flat areas) or 20–50″ (alpine terrain).

The deflection of the vertical has a north-south component ξ (xi) and an east-west component η (eta). The value of ξ is the difference between the astronomic latitude minus the geodetic latitude (taking north latitudes to be positive and south latitudes to be negative); the latter is usually calculated by geodetic network coordinates. The value of η is the astronomic longitude minus the longitude (taking east longitudes to be positive and west longitudes to be negative). When a new mapping datum replaces the old, with new geodetic latitudes and longitudes on a new ellipsoid, the calculated vertical deflections will change too.

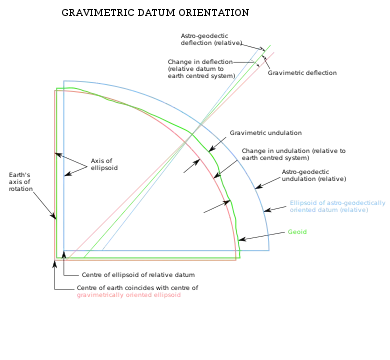

Earth's ellipsoid, geoid, and two types of vertical deflection

Determination

The deflections reflect the undulation of the geoid and gravity anomalies, for they depend on the gravity field and its inhomogeneities.

VDs are usually determined astronomically. The true zenith is observed astronomically with respect to the stars, and the ellipsoidal zenith (theoretical vertical) by geodetic network computation, which always takes place on a reference ellipsoid. Additionally, the very local variations of the VD can be computed from gravimetric survey data and by means of digital terrain models (DTM), using a theory originally developed by Vening-Meinesz.

VDs are used in astro-geodetic levelling, a geoid determination technique. As a vertical deflection describes the difference between the geoidal and ellipsoidal normals, it represents the horizontal gradient of the undulations of the geoid (i.e., the separation between geoid and reference ellipsoid). Given a starting value for the geoid undulation at one point, determining geoid undulations for an area becomes a matter for simple integration.

In practice, the deflections are observed at special points with spacings of 20 or 50 kilometers. The densification is done by a combination of DTM models and areal gravimetry. Precise VD observations have accuracies of ±0.2″ (on high mountains ±0.5″), calculated values of about 1–2″.

The maximal VD of Central Europe seems to be a point near the Großglockner (3,798 m), the highest peak of the Austrian Alps. The approx. values are ξ = +50″ and η = −30″. In the Himalaya region, very asymmetric peaks may have VDs up to 100″ (0.03°). In the rather flat area between Vienna and Hungary the values are less than 15", but scatter by ±10″ for irregular rock densities in the subsurface.

More recently, a combination of digital camera and tiltmeter have also been used, see zenith camera.[1]

Application

Vertical deflections are principally used in four matters:

  1. For precise calculation of survey networks. The geodetic theodolites and levelling instruments are oriented with respect to the true vertical, but its deflection exceeds the geodetic measuring accuracy by a factor of 5 to 50. Therefore, the data have to be corrected exactly with respect to the global ellipsoid. Without these reductions, the surveys may be distorted by some centimeters or even decimeters per km.
  2. For the geoid determination (mean sea level) and for exact transformation of elevations. The global geoidal undulations amount to 50–100 m, and their regional values to 10–50 m. They are adequate to the integrals of VD components ξ,η and therefore can be calculated with cm accuracy over distances of many kilometers.
  3. For GPS surveys. The satellites measurements refer to a pure geometrical system (usually the WGS84 ellipsoid), whereas the terrestrial heights refer to the geoid. We need accurate geoid data to combine the different types of measurements.
  4. For geophysics. Because VD data are affected by the physical structure of the Earth's crust and mantle, geodesists are engaged in models to improve our knowledge of the Earth's interior. Additionally and similar to applied geophysics, the VD data can support the future exploration of raw materials, oil, gas or ores.

Historical implications

VD were used to measure Earth's density in the Schiehallion experiment.

VD is the reason why modern prime meridian passes more than 100 m to the east of the historical astronomic prime meridian in Greenwich.[2]

The meridian arc surveyed by Nicolas-Louis de Lacaille north of Cape Town in 1752 was affected by VD.[3] The resulting discrepancy with Northern Hemisphere measurements was not explained until a visit to the area by George Everest in 1820.[4]

Apparent errors in the meridian arc of Delambre and Méchain determination, which affected the original definition of the metre,[5] were later found to be caused by VD.[6]
