Britten-Norman Defender

The Britten-Norman Defender is a multi-role utility transport aircraft, manufactured by Britten-Norman of the United Kingdom. It is the military version of the Britten-Norman Islander, developed for roles such as utility transport, casualty evacuation, counter-insurgency and light attack, forward air control, patrol and reconnaissance. The term 'Britten-Norman Defender' relates to all militarised variants of the BN-2 product line including the BN-2 Piston Defender, BN-2T Turbine Defender (sometimes known as the Defender 2000), the BN-2T-4R Defender (also known as AEW Defender and highlighted by its large bulbous nose) and the stretched variant BN-2T-4S, designated Defender 4000 (sometimes known as D4K).[1]

Defender
Britten-Norman Defender AL2 of the British Army Air Corps
Role Transport, patrol, reconnaissance
National origin United Kingdom
Manufacturer Britten-Norman
First flight May 1970
Developed from Britten-Norman Islander

Development

First flown in May 1970, the Defender was based on the civilian Islander, and has a larger airframe with four underwing hardpoints for pylons to attach 2,500 pounds (1,100 kg) of fuel tanks, bombs, missiles, 7.62-mm (0.3-inch) machine-gun pods, rocket pods, flares, sensors and other stores.

The BN-2B (piston version) and BN-2T (turbine version) are used in military, coastguard, and police operations in several countries.

Defender 4000
Defender of the Greater Manchester Police, England

The BN-2T-4S Defender 4000 is an enhanced version of the BN-2T Defender intended for the aerial surveillance role. Compared to earlier Defenders, it has a stretched fuselage, the enlarged wing from the Trislander, a new nose structure capable of accommodating an EO/IR sensor and radar, and an increased payload.[2] The prototype Defender 4000 first flew in 1995 and entered production from 1997.[3]

Operational history

Law enforcement use

The FBI deployed one Defender for electronic aerial surveillance on the Branch Davidians' compound during the siege of Waco in 1993.[4]

In August 2017, in an attempt to calm a gang war in Copenhagen, the Danish police force used at least one of the Danish National Guard's two Defenders to fly reconnaissance missions over the city.[5]

Military use

The Mauritanian Air Force employed six BN-2A-21 Defenders in the Western Sahara War against POLISARIO forces in 1976, losing two of them in action.[6]

A Rhodesian Air Force Alouette III, configured as a gunship or 'K-Car' (20mm cannon), shot down a Botswana Defence Force Air Wing Islander on 9 August 1979.[7]

In 1996, the Royal Cambodian Air Force deployed its three BN-2 Defenders in support of the dry season offensive against Khmer Rouge insurgents. The Defenders were armed with machine guns and rockets, and even dropped mortar rounds. One Defender was lost during the operation.[8]

In 2014 the Philippine Navy sent one of its Defenders to assist a multinational search and rescue party led by the government of Malaysia in search of the missing Malaysia Airlines Flight 370.[9]

United Kingdom

In January 2004, the British Army placed an urgent order for four BN-2T-4S Defender 4000 aircraft designated the AL Mk 1 for ISTAR missions in Iraq.[10] The Defender was to be configured similar to the Army Islander AL Mk 1 and Defenders in use with Hampshire Constabulary and Greater Manchester Police.[10] In October 2004, the first aircraft was delivered to No. 1 Flight AAC and deployed to Iraq that month.[10] The final Mk 1 was delivered in September 2006 to No. 651 Squadron AAC which had been reformed to operate the Defender.[10] The Mk 1 was fitted with a Wescam MX-15 Electro-Optical Infrared (EO/IR) turret under the nose, cabin-mounted cameras, COMINT and C2 equipment.[11][12][10] During the fleet's bi-annual return to the UK for in-depth servicing new ISTAR equipment was fitted.[10]

A second order was placed for four fully re-designed aircraft designated the Mk 2 and a trainer.[10] In September 2008, the first Mk 2 aircraft and also one Mk 1 upgraded to Mk 2 standard were delivered.[10] The Mk 2 was fitted with TCAS, EGPWS, improved DAS, improved avionics suite and had ISTAR equipment enhancements.[10] The Mk 2 had a longer endurance to the Mk 1 being able to carry more fuel and was also able to operate at a lower height.[10] The training variant was also delivered in September 2008 designated the T Mk 3.[10] The final Mk 2 aircraft was to be delivered by 2012 together with the three Mk 1s upgraded to Mk 2 standard.[10]

In June 2009, the Defender's deployment to Iraq ended with 651 Squadron serving continuously since October 2004 in which time it had provided over 8,000 hours in support of UK Forces.[10] In January to February 2010, the Defender was trialled in the Middle East with a Counter-IED capability for potential use in Afghanistan.[10] Defenders deployed to Afghanistan from November 2010 through to 2012.[10][13] In 2012, Defenders flew daily missions prior to and during the London 2012 Summer Olympics.[13]

In April 2019, the Defender was transferred from the Army to the Royal Air Force with No. 1 Group.[14][15] The aircraft was re-designated from AL2 (prefix AL for Army liaison) to R2 (prefix R for Reconnaissance).[16][17][18]

Variants
Defender
Multi-role utility transport aircraft.
Maritime Defender
Armed maritime patrol and reconnaissance aircraft.
Defender 4000
Enhanced Defender for the urban surveillance, counter-terrorism and maritime surveillance roles.
AEW Defender
Airborne Early Warning aircraft

Operators
 Denmark
Air Force Home Guard - 2 x BN-2A-26[19]
 Ireland
Maltese Air Force Defender
 Malta
 Mauritius
 Morocco
Royal Moroccan Gendarmerie 13 x BN-2T[22]
 Pakistan
 Philippines

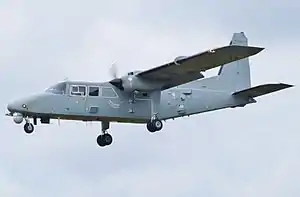

Defender AL2 of 651 Squadron of the Army Air Corps
 United Kingdom
 United States

Specifications (Defender 4000)

Data from Jane's All The World's Aircraft 2003–2004,[27] Britten-Norman[1]

General characteristics

  • Crew: 2 (flight crew)
  • Capacity: Up to 16 troops in transport role
  • Length: 12.20 m (40 ft 0 in)
  • Wingspan: 16.15 m (53 ft 0 in)
  • Height: 4.4 m (14 ft 5 in)
  • Wing area: 16.2 m2 (174 sq ft)
  • Aspect ratio: 8.0:1
  • Airfoil: NACA 23012
  • Empty weight: 2,223 kg (4,900 lb) (empty equipped)
  • Max takeoff weight: 3,856 kg (8,500 lb)
  • Fuel capacity: 1,131 L (299 US gal; 249 imp gal)
  • Powerplant: 2 × Rolls-Royce 250 B17F turboprops, 300 kW (400 shp) each

Performance

  • Maximum speed: 326 km/h (203 mph, 176 kn) (Max cruise, at 3050 m (10000 ft))
  • Cruise speed: 280 km/h (170 mph, 150 kn) (72% power, at 1525 m (5000 ft))
  • Stall speed: 87 km/h (54 mph, 47 kn) (flaps down)
  • Range: 1,863 km (1,158 mi, 1,006 nmi) (VFR reserves)
  • Endurance: 8 hr 30 minutes
  • Service ceiling: 7,600 m (25,000 ft) (absolute ceiling)
  • Rate of climb: 6.4 m/s (1,250 ft/min)
  • Take-off run to 15 m (50 ft): 565 m (1,854 ft)
  • Landing run from 15 m (50 ft): 589 m (1,932 ft)
