Distributed shared memory

In computer science, distributed shared memory (DSM) is a form of memory architecture where physically separated memories can be addressed as one logically shared address space. Here, the term "shared" does not mean that there is a single centralized memory, but that the address space is "shared" (same physical address on two processors refers to the same location in memory).[1]:201 Distributed global address space (DGAS), is a similar term for a wide class of software and hardware implementations, in which each node of a cluster has access to shared memory in addition to each node's non-shared private memory.

"DGAS" redirects here. For the DGA awards, see Directors Guild of America Award.

A distributed-memory system, often called a multicomputer, consists of multiple independent processing nodes with local memory modules which is connected by a general interconnection network. Software DSM systems can be implemented in an operating system, or as a programming library and can be thought of as extensions of the underlying virtual memory architecture. When implemented in the operating system, such systems are transparent to the developer; which means that the underlying distributed memory is completely hidden from the users. In contrast, software DSM systems implemented at the library or language level are not transparent and developers usually have to program them differently. However, these systems offer a more portable approach to DSM system implementations. A distributed shared memory system implements the shared-memory model on a physically distributed memory system.

Methods of achieving DSM

There are usually two methods of achieving distributed shared memory:

  • hardware, such as cache coherence circuits and network interfaces
  • software

Software DSM implementation

There are three ways of implementing a software distributed shared memory:

  • page based approach using the system’s virtual memory;
  • shared variable approach using some routines to access shared variables;
  • object based approach ideally accessing shared data through object-oriented discipline.

Message Passing vs. DSM
Message passing Distributed shared memory
Variables have to be marshalled Variables are shared directly
Cost of communication is obvious Cost of communication is invisible
Processes are protected by having private address space Processes could cause error by altering data
Processes should execute at the same time Executing the processes may happen with non-overlapping lifetimes

Software DSM systems also have the flexibility to organize the shared memory region in different ways. The page based approach organizes shared memory into pages of fixed size. In contrast, the object based approach organizes the shared memory region as an abstract space for storing shareable objects of variable sizes. Another commonly seen implementation uses a tuple space, in which the unit of sharing is a tuple.

Shared memory architecture may involve separating memory into shared parts distributed amongst nodes and main memory; or distributing all memory between nodes. A coherence protocol, chosen in accordance with a consistency model, maintains memory coherence.

Abstract view

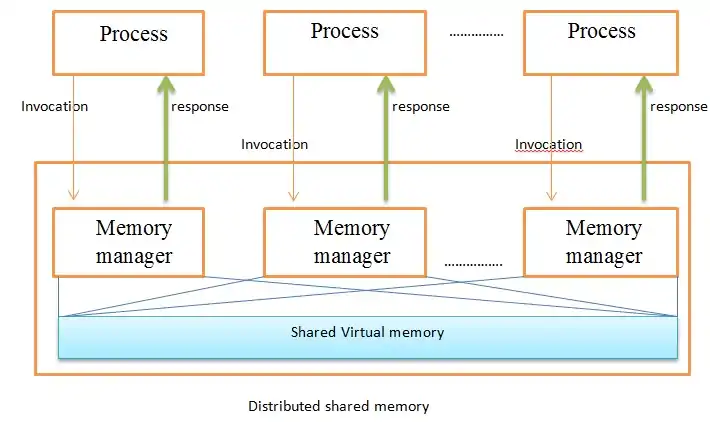

DSM FIGURE

Advantages
  • Scales well with a large number of nodes
  • Message passing is hidden
  • Can handle complex and large databases without replication or sending the data to processes
  • Generally cheaper than using a multiprocessor system
  • Provides large virtual memory space
  • Programs are more portable due to common programming interfaces
  • Shield programmers from sending or receiving primitives

Disadvantages
  • Generally slower to access than non-distributed shared memory
  • Must provide additional protection against simultaneous accesses to shared data
  • May incur a performance penalty
  • Little programmer control over actual messages being generated
  • Programmers need to understand consistency models, to write correct programs
  • DSM implementations use asynchronous message-passing, and hence cannot be more efficient than message-passing implementations

Directory memory coherence

Memory coherence is necessary such that the system which organizes the DSM is able to track and maintain the state of data blocks in nodes across the memories comprising the system. A directory is one such mechanism which maintains the state of cache blocks moving around the system.

States

A basic DSM will track at least three states among nodes for any given block in the directory.[2] There will be some state to dictate the block as uncached (U), a state to dictate a block as exclusively owned or modified owned (EM), and a state to dictate a block as shared (S). As blocks come into the directory organization, they will transition from U to EM (ownership state) in the initial node, then state can transition to S when other nodes begin reading the block.

There are a two primary methods for allowing the system to track where blocks are cached and in what condition across each node. Home-centric request-response uses the home to service requests and drive states, whereas requester-centric allows each node to drive and manage its own requests through the home.

State diagram of a block of memory in a DSM. A block is "owned" if one of the nodes has the block in state EM.

Home-centric request and response

In a home-centric system, the DSM will avoid having to handle request-response races between nodes by allowing only one transaction to occur at a time until the home node has decided that the transaction is finished—usually when home has received all responding processor's response to the request. An example of this is Intel's QPI home-source mode.[3]

Advantages
  • Data races are impossible
  • Simple to implement

Disadvantages
  • Slow, buffered request-response strategy, limited by the home node

Requester-centric request and response

In a requester-centric system, the DSM will allow nodes to talk at will to each other through the home. This means that multiple nodes can attempt to start a transaction, but this requires additional considerations to ensure coherence. For example: when one node is processing a block, if it receives a request for that block from another node it will send a NAck (Negative Acknowledgement) to tell the initiator that the processing node can't fulfill that request right away. An example of this is Intel's QPI snoop-source mode.[3]

Advantages
  • Fast

Disadvantages
  • Does not naturally prevent race conditions
  • Generates more bus traffic

Consistency models

The DSM must follow certain rules to maintain consistency over how read and write order is viewed among nodes, called the system's consistency model.

Suppose we have n processes and Mi memory operations for each process i, and that all the operations are executed sequentially. We can conclude that (M1 + M2 + … + Mn)!/(M1! M2!… Mn!) are possible interleaves of the operations. The issue with this conclusion is determining the correctness of the interleaved operations. Memory coherence for DSM defines which interleaves are permitted.

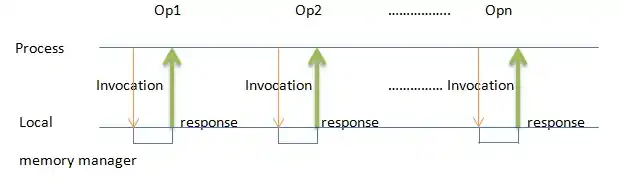

Sequential invocations and responses in DSM

Replication

There are two types of replication Algorithms. Read replication and Write replication. In Read replication multiple nodes can read at the same time but only one node can write. In Write replication multiple nodes can read and write at the same time. The write requests are handled by a sequencer. Replication of shared data in general tends to:

  • Reduce network traffic
  • Promote increased parallelism
  • Result in fewer page faults

However, preserving coherence and consistency may become more challenging.

Release and entry consistency
  • Release consistency: when a process exits a critical section, new values of the variables are propagated to all sites.
  • Entry consistency: when a process enters a critical section, it will automatically update the values of the shared variables.
    • View-based Consistency: it is a variant of Entry Consistency, except the shared variables of a critical section are automatically detected by the system. An implementation of view-based consistency is VODCA which has comparable performance to MPI on cluster computers.
