Fugaku (supercomputer)

Fugaku (Japanese: 富岳) – named after an alternative name for Mount Fuji – is a claimed exascale supercomputer[4][5] (while only at petascale for mainstream benchmark), at the RIKEN Center for Computational Science in Kobe, Japan. It started development in 2014 as the successor to the K computer, and is officially scheduled to start operating in 2021.[6][7] Fugaku made its debut in 2020,[8] and became the fastest supercomputer in the world in the June 2020 TOP500 list,[9] as well as becoming the first ARM architecture-based computer to achieve this. As of January 2021, Fugaku is still the fastest supercomputer in the world.[10]

For other uses, see Fugaku.
Fugaku
ActiveFrom 2021
SponsorsMEXT
OperatorsRIKEN
LocationRIKEN Center for Computational Science (R-CCS)
Architecture
Operating systemCustom Linux-based kernel
MemoryHBM2 32 GiB/node
Storage
  • 1.6 TB NVMe SSD/16 nodes (L1)
  • 150 PB shared Lustre FS (L2)[1]
  • Cloud storage services (L3)
Speed442 PFLOPS (per TOP500 Rmax), after upgrade; higher 2.0 EFLOPS on a different mixed-precision benchmark
CostUS$1 billion (total programme cost)[2][3]
RankingTOP500: 1, June 2020
Web sitewww.r-ccs.riken.jp/en/fugaku
SourcesFugaku System Configuration

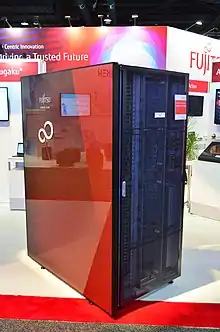

PRIMEHPC FX1000 (Fugaku node) at SC19

Hardware

The supercomputer is built with the Fujitsu A64FX microprocessor. This CPU is based on the ARM version 8.2A processor architecture, and adopts the Scalable Vector Extensions for supercomputers.[11] Fugaku was aimed to be about 100 times more powerful than the K computer (i.e. a performance target of 1 exaFLOPS) and have a high level of practicability in the world.[12][13]

The initial (June 2020) configuration of Fugaku used 158,976 A64FX CPUs joined together using Fujitsu's proprietary torus fusion interconnect.[9] An upgrade in November 2020 increased the number of processors.[14]

Software

Fugaku will use a "light-weight multi-kernel operating system" named IHK/McKernel. The operating system uses both Linux and the McKernel light-weight kernel operating simultaneously and side by side. The infrastructure that both kernels run on is termed the Interface for Heterogeneous Kernels (IHK). The high-performance simulations are run on McKernel, with Linux available for all other POSIX-compatible services.[15][16][17]

Besides the system software, the supercomputer has run many kinds of applications, including several benchmarks. Running the mainstream HPL benchmark, used by TOP500, Fugaku is at petascale and almost halfway to exascale. Additionally, Fugaku has set world records on at least three other benchmarks, including HPL-AI; at 2.0 exaflops, the system has exceeded the exascale threshold for the benchmark.[18] A description of that benchmark is as follows:

The solver method of choice is a combination of LU factorization and iterative refinement performed afterwards to bring the solution back to 64-bit accuracy. The innovation of HPL-AI lies in dropping the requirement of 64-bit computation throughout the entire solution process and instead opting for low-precision (likely 16-bit) accuracy for LU, and a sophisticated iteration to recover the accuracy lost in factorization.[19]

Performance

The reported initial performance of Fugaku was a Rmax of 416 petaFLOPS in the FP64 high performance LINPACK benchmark used by the TOP500.[9] After the November 2020 upgrade in the number of processors, Fugaku's performance increased to a Rmax of 442 petaFLOPS.[14]

Fugaku also attained top spots in other rankings that test computers on different workloads, including Graph 500, HPL-AI, and HPCG. No previous supercomputer has ever led all four rankings at once.[20]

After a small hardware upgrade, as of November 2020, "Fugaku increased its performance on the new mixed precision HPC-AI benchmark to 2.0 exaflops, besting its 1.4 exaflops mark recorded six months ago. These represent the first benchmark measurements above one exaflop for any precision on any type of hardware." (a 42% increase)[21] Interestingly, the Arm A64FX core-count was only increased by 4.5%, to 7,630,848, but the measured performance rose much more on that benchmark (and the computer doesn't use other compute capabilities, such as GPUs), and a little more on TOP500, or by 6.4%, to 442 petaflops, a new world record[22] and widening the gap to the next computer by that much. For the High-Performance Conjugate Gradient (HPCG) benchmark it's over 5.4x as fast, at 16.0 HPCG-petaflops, as the numer two system, Summit,[23] that happens to also be second on TOP500.

Fugaku's performance surpasses the combined performance of the next 4 supercomputers on the top500 list (almost next 5) and surpasses by 45% margin all the other top-10 computers on HPCG benchmark.[24]

History

On May 23, 2019, RIKEN announced that the supercomputer was to be named Fugaku.[25] In August 2019, the logo for Fugaku was unveiled; it depicts Mount Fuji, symbolising "Fugaku's high performance" and "the wide range of its users".[7][26] In November 2019, the prototype of Fugaku won first place in the Green500 list.[27][28] Shipment of the equipment racks to the RIKEN facility began on December 2, 2019,[29] and was completed on May 13, 2020.[30] In June 2020, Fugaku became the fastest supercomputer in the world in the TOP500 list, displacing the IBM Summit.[9]

Fugaku has been used for research on masks related to COVID-19 pandemic.[31][32]

Cost

In 2018, Nikkei reported the programme would cost ¥130 billion (c. US$1 billion).[3][6]

Comparison
Performance and cost comparison chart against computers ranked #1 in TOP500
Name Start year End year Performance
（PFLOPS)[note 1]		 Cost
（million USD）

(not inflation adjusted)

 TOP500 ranking CPU/GPU vendor CPU OS
Fugaku2020-4151213[3][note 2]June 2020 1stFujitsuA64FXCustom Linux-based kernel
Summit2018-148300[33]June 2018 to November 2019 1st IBM, NVIDIAPOWER9, TeslaLinux (RedHat)
Sierra2018-94November 2018 to November 2019 2nd
Sunway TaihuLight2016-93280[34]June 2016 to November 2017 1st NRCPCSunway SW26010Linux (Raise)
K20112019101045[35]June 2011 – November 2011 1stFujitsuSPARC64 VIIIfxLinux
  1. This is based on the TOP500 Rmax measurement using the LINPACK benchmark at FP64 precision.
  2. This is the total programme cost involving the creation of the technologies, rather than just for the machine.
