Line 2 (Tianjin Metro)

Line 2 of the Tianjin Metro (Chinese: 天津地铁二号线; pinyin: Tiānjīn Dìtiě Èr Hào Xiàn) is a rapid transit line running from west to east Tianjin. Opened on 1 July 2012,[1] the line is 27.157 km long and has 20 stations. It is mostly underground; all stations, with the exception of surface-level station Caozhuang, are underground.

Line 2
2
A train at Konggangjingjiqu
Overview
Status	Operational
Owner	Tianjin
Locale	Tianjin, China
Termini	Caozhuang Binhaiguojijichang
Stations	20
Service
Type	Rapid transit
System	Tianjin Metro
Services	1
Operator(s)	Tianjin Rail Transit Group Corporation
History
Opened	1 July 2012
Technical
Line length	27.157 km (16.87 mi)
Number of tracks	2
Character	Underground
Track gauge	1,435 mm (4 ft 8 ^1⁄2 in)

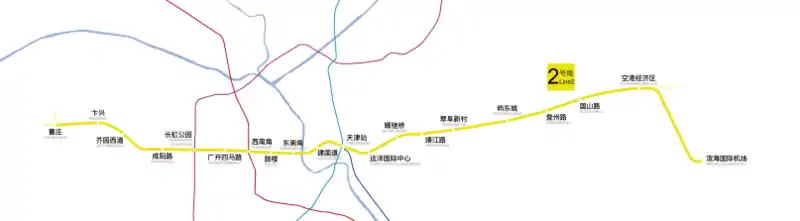

Route map Hanzi English 曹庄 Caozhuang 卞兴 Bianxing 芥园西道 Jieyuanxidao (West Jieyuan Avenue) 咸阳路 Xianyanglu (Xianyang Road) 长虹公园 Changhonggongyuan (Changhong Park)  6  广开四马路 Guangkaisimalu (Guangkai 4th Road) 西南角 Xi'nanjiao  1  鼓楼 Gulou 东南角 Dongnanjiao ( 4 ) 建国道 Jianguodao (Jianguo Road) 天津站 Tianjinzhan (Tianjin railway station)  3   9  远洋国际中心 Yuanyangguojizhongxin (Yuanyang International Center) 顺驰桥 Shunchiqiao (Shunchi Bridge) 靖江路 Jingjianglu (Jingjiang Road) ( 5 ) 翠阜新村 Cuifuxincun 屿东城 Yudongcheng ( 7 ) 登州路 Dengzhoulu (Dengzhou Road) 国山路 Guoshanlu (Guoshan Road) 空港经济区 Konggangjingjiqu (Airport Economic Area) 滨海国际机场 Binhaiguojijichang (Binhai International Airport)

In May 2011, during construction, a section of tunnel west of Tianjin railway station was flooded with water from the Hai River and collapsed, trapping one of the TBMs. It was deemed too expensive to remove the trapped TBM, so a decision to abandon the TBM and dig a new tunnel around it was made. This delayed the original opening date from late 2011 to 2012.[2] After the line opened for trial operations on 1 July 2012, it operated in two separate sections until the affected section finished reconstruction and Jianguodao Station opened on 28 August 2013, finally reconnecting the two sections.

Opening timeline

Segment	Commencement	Length	Station(s)	Name
Caozhuang — Dongnanjiao	1 July 2012	9.1 km (5.65 mi)	7	(initial phase)
Tianjinzhan — Konggangjingjiqu		11.6 km (7.21 mi)	9
Jieyuanxidao	18 November 2012	Infill station	1
Dongnanjiao — Tianjinzhan	28 August 2013	1.95 km (1.21 mi)	1	Hai River tunnel reconstruction project
Konggangjingjiqu — Binhaiguojijichang	28 August 2014	4.5 km (2.80 mi)	1	Airport extension

Stations (west to east)

Line 2 drawn to scale.

Station name		Connections	Bus Connections	Distance km		Location
English	Chinese
Caozhuang	曹庄		366 385 603 616 620 669 714 909	0.00	0.00	Xiqing
Bianxing	卞兴			1.60	1.60	Nankai
Jieyuanxidao	芥园西道		31 330 645 672 686 841 851 858 863 867	1.02	2.62
Xianyanglu	咸阳路		31 308 330 645 673 686 700 836 850 858 867	1.56	4.18
Changhong­gongyuan	长虹公园	6	47 47区 48 48区 52 191 192 645 673 686 841 848 860 867 879 903 911	1.18	5.36
Guangkai­simalu	广开四马路		191 503 645 669 673 676 687 841 852 859 860 869 903 961	1.10	6.46
Xi'nanjiao	西南角	1	2 12 191 600 628 631 639 645 669 673 676 800 837 849 860 863 903 906 952	0.85	7.31
Gulou	鼓楼		156 161 168 180 184 191 628 633 635 641 645 657 837 840 849 855 860 865	0.80	8.11
Dongnanjiao	东南角		1 5 37 156 619 634 670 671 688 693 801 804 836 837	0.79	8.90
Jianguodao	建国道		5 8 156 634 635 638 640 645 663 806 832 836 841 870 901	0.99	9.89	Hebei
Tianjinzhan	天津站	3   9  TJP  Jingjin   Jinji	96 181 182 187 190 194 195 196 197 198 199 528 607 701 749 813	0.96	10.85	Hedong
Yuanyang­guoji­zhongxin	远洋国际中心		35 96 368 461 462 516 528 574 600 635 640 663 666 681 689 803 827 828 836 856 868 905 916	1.02	11.87
Shunchiqiao	顺驰桥		42 327 340 516 635 639 660 663 665 689 842 902	1.11	12.98
Jingjianglu	靖江路	5	32 35 327 353 602 622 635 660 663 689 861 907	0.96	13.94
Cuifu­xincun	翠阜新村		32 35 353 461 462 574 602 622 635 660 663 689 861 907	1.14	15.08
Yudongcheng	屿东城		32 359 461 462 574 622 640 660 663 668 677 685 689 697 715 817 827 866 907	1.96	17.04	Dongli
Dengzhoulu	登州路		528 574 622 660 663 677 689 818	1.44	18.48
Guoshanlu	国山路		339 528 574 622 660 663 677 689 818	1.25	19.73
Konggang­jingjiqu	空港经济区		114 575 654 691 692 695 696	1.21	20.94
Binhaiguojijichang	滨海国际机场	TSN		3.94	24.88

Rolling Stock

Type	Time of manufacturing	Series	Sets	Assembly	Notes
Type B	2009 - 2011	Unknown	23	Tc+M+T+M+M+Tc	Manufactured by CNR Dalian

References

1. 天津地铁2号线7月1日起分段开通试运营 公交接驳地铁方便出行 Archived 22 December 2015 at the Wayback Machine
