List of artificial radiation belts

Artificial radiation belts are radiation belts that have been created by high altitude nuclear explosions.[1][2][3][4][5]

List of Artificial Radiation Belts
Explosion Location Date Yield (approximate) Altitude (km) Nation of Origin
Hardtack Teak Johnston Island (Pacific) 1958-08-01 3.8 megatons 76.8 United States
Hardtack Orange Johnston Island (Pacific) 1958-08-12 3.8 megatons 43 United States
Argus I South Atlantic 1958-08-27 1-2 kilotons 200 United States
Argus II South Atlantic 1958-08-30 1-2 kilotons 256 United States
Argus III South Atlantic 1958-09-06 1-2 kilotons 539 United States
Starfish Prime  Johnston Island (Pacific)  1962-07-09  1.4 megatons 400 United States
K-3 Kazakhstan 1962-10-22 300 kilotons 290 USSR
K-4 Kazakhstan 1962-10-28 300 kilotons 150 USSR
K-5 Kazakhstan 1962-11-01 300 kilotons 59 USSR

The table above only lists those high-altitude nuclear explosions for which a reference exists in the open (unclassified) English-language scientific literature to persistent artificial radiation belts resulting from the explosion.

The Starfish Prime radiation belt had, by far, the greatest intensity and duration of any of the artificial radiation belts.[1]

The Starfish Prime radiation belt damaged the United Kingdom Satellite Ariel 1 and the United States satellites, Traac, Transit 4B, Injun I and Telstar I.  It also damaged the Soviet satellite Cosmos V.  All of these satellites failed completely within several months of the Starfish detonation.[1]

Telstar I lasted the longest of the satellites damaged by the Starfish Prime radiation, with its complete failure occurring on February 21, 1963.[6]

In Los Alamos Scientific Laboratory report LA-6405, Herman Hoerlin gave the following explanation of the history of the original Argus experiment and of how the nuclear detonations lead to the development of artificial radiation belts.[1]

Before the discovery of the natural Van Allen belts in 1958, N. C. Christofilos had suggested in October 1957 that many observable geophysical effects could be produced by a nuclear explosion at high altitude in the upper atmosphere. This suggestion was reduced to practice with the sponsorship of the Advanced Research Project Agency (ARPA) of the Department of Defense and under the overall direction of Herbert York, who was then Chief Scientist of ARPA. It required only four months from the time it was decided to proceed with the tests until the first bomb was exploded. The code name of the project was Argus. Three events took place in the South Atlantic. ... Following these events, artificial belts of trapped radiation were observed.

A general description of trapped radiation is as follows. Charged particles move in spirals around magnetic-field lines. The pitch angle (the angle between the direction of the motion of the particle and direction of the field line) has a low value at the equator and increases while the particle moves down a field line in the direction where the magnetic field strength increases. When the pitch angle becomes 90 degrees, the particle must move in the other direction, up the field lines, until the process repeats itself at the other end. The particle is continuously reflected at the two mirror points — it is trapped in the field. Because of asymmetries in the field, the particles also drift around the earth, electrons towards the east. Thus, they form a shell around the earth similar in shape to the surface formed by a field line rotated around the magnetic dipole axis.

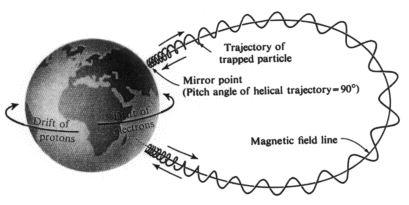

Illustration of the motion of a charged particle trapped in the Earth's magnetic field.

In 2010, the United States Defense Threat Reduction Agency issued a report that had been written in support of the United States Commission to Assess the Threat to the United States from Electromagnetic Pulse Attack. The report, entitled "Collateral Damage to Satellites from an EMP Attack," discusses in great detail the historical events that caused artificial radiation belts and their effects on many satellites that were then in orbit. The same report also projects the effects of one or more present-day high altitude nuclear explosions upon the formation of artificial radiation belts and the probable resulting effects on satellites that are currently in orbit.[7]
