Newport-class tank landing ship
Newport-class tank landing ships were an improved class of tank landing ship (LST) designed for and employed by the United States Navy from 1969 to 2002. The ships were intended to provide substantial advantages over their World War II-era predecessors. Larger and faster than any previous LST design, they carried a ramp over the bow that allowed them to surpass 20 knots (37 km/h; 23 mph), a goal of the United States amphibious forces. 27 were planned of which twenty were completed, the high number due to the demands of US force projection estimates. However, the arrival of the air-cushioned landing craft which allowed for over-the-horizon attacks made the class obsolete in the eyes of the United States Navy. Placed in reserve, twelve were eventually sold to foreign navies, while the remaining eight have since been decommissioned.
USS Newport (LST-1179) | |
Class overview | |
---|---|
Builders: | |
Operators: | |
Preceded by: | De Soto County class |
Succeeded by: | None |
Built: | 1966–1972 |
In commission: | 1969–present |
Planned: | 27 |
Completed: | 20 |
Cancelled: | 7 |
Active: | 6 |
Lost: | 1 |
Retired: | 13 |
General characteristics As built | |
Type: | Tank landing ship |
Displacement: | |
Length: | |
Beam: | 69 ft 6 in (21.2 m) |
Draft: | 17 ft 6 in (5.3 m) max |
Propulsion: |
|
Speed: | 22 knots (41 km/h; 25 mph) max |
Range: | 2,500 nmi (4,600 km; 2,900 mi) at 14 knots (26 km/h; 16 mph) |
Troops: | 431 max |
Complement: | 213 |
Sensors and processing systems: |
|
Armament: | 2 × twin 3"/50 caliber guns |
Design and description
The Newport class were designed to meet the goal put forward by the United States amphibious forces to have a tank landing ship (LST) capable of over 20 knots (37 km/h; 23 mph). However, the traditional bow door form for LSTs would not be capable. Therefore, the designers of the Newport class came up with a design of a traditional ship hull with a 112-foot (34 m) aluminum ramp slung over the bow supported by two derrick arms. The 34-long-ton (35 t) ramp was capable of sustaining loads up to 75 long tons (76 t). This made the Newport class the first to depart from the standard LST design that had been developed in early World War II.[1][2][3]
LSTs of the Newport class had a displacement of 4,793 long tons (4,870 t) when light and 8,342 long tons (8,476 t) at full load. They were 522 feet 4 inches (159.2 m) long overall and 562 ft (171.3 m) over the derrick arms which protruded past the bow.[2][3] They had a beam of 69 ft 6 in (21.2 m), a draft forward of 11 ft 5 in (3.5 m) and 17 ft 5 in (5.3 m) at the stern at full load.[4]
The first three ships of the class were fitted with six General Motors 16-645-ES diesel engines, while the remainder of the class were fitted with six Alco 16-251 diesel engines turning two shafts, three to each shaft. The system was rated at 16,500 brake horsepower (12,300 kW) and gave the ships a maximum speed of 22 knots (41 km/h; 25 mph) for short periods and could only sustain 20 knots (37 km/h; 23 mph) for an extended length of time. The LSTs carried 1,750 long tons (1,780 t) of diesel fuel for a range of 2,500 nautical miles (4,600 km; 2,900 mi) at the cruising speed of 14 knots (26 km/h; 16 mph). The ships were also equipped with a bow thruster to allow for better maneuvering near causeways and to hold position while offshore during the unloading of amphibious vehicles.[3][5]

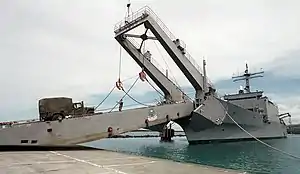

The Newport class were larger and faster than previous LSTs and were able to transport tanks, heavy vehicles and engineer groups and supplies that were too large for helicopters or smaller landing craft to carry.[6] The LSTs have a ramp forward of the superstructure that connects the lower tank deck with the main deck and a passage large enough to allow access to the parking area amidships. The vessels are also equipped with a stern gate to allow the unloading of amphibious vehicles directly into the water or to unload onto a utility landing craft (LCU) or pier. At either end of the tank deck there is a 30 ft (9.1 m) turntable that permits vehicles to turn around without having to reverse.[1][2] The Newport class has the capacity for 500 long tons (510 t) of vehicles, 19,000 sq ft (1,800 m2) of cargo area and could carry up to 431 troops.[1][7] The vessels also have davits for four vehicle and personnel landing craft (LCVPs) and could carry four pontoon causeway sections along the sides of the hull.[2][3]
The Newport class were initially armed with four Mark 33 3-inch (76 mm)/50 caliber guns in two twin turrets. They were equipped with two Mk 63 gun control fire systems (GCFS) for the 3-inch guns, but these were removed in 1977–1978.[3] They also had SPS-10 surface search radar.[8] Atop the stern gate, the vessels mounted a helicopter deck. They had a maximum complement of 213 including 11 officers.[6]
United States service
Construction and career
The first vessel of the class, Newport was ordered as part of Fiscal Year (FY) 1965. The next eight were authorized in FY 1966, followed by eleven in 1967. The first three LSTs were constructed by Philadelphia Naval Shipyard in Philadelphia, Pennsylvania and the remaining seventeen by National Steel and Shipbuilding of San Diego, California. Seven more were ordered in FY 1971, but these were later deferred, then canceled.[6][7] Beginning in FY 1981, ships of the class were transferred to the Naval Reserve Force.[9]
By 1994, the 3-inch guns had been removed. The development of LCACs which allowed the United States Navy to launch over-the-horizon amphibious landings made the Newport class obsolete.[2]
Ships in class
Newport class[8] | |||||||
Hull No. | Ship name | Builder | Laid down | Launched | Commissioned | Decommissioned | Fate |
---|---|---|---|---|---|---|---|
LST-1179 | Newport | Philadelphia Naval Shipyard, Philadelphia, Pennsylvania | 1 November 1966 | 3 February 1968 | 7 June 1969 | 1992 | Sold to Mexican Navy as ARM Papaloapan |
LST-1180 | Manitowoc | 1 February 1967 | 4 June 1969 | 24 January 1970 | 1993 | Sold to Republic of China Navy as Chung Ho | |
LST-1181 | Sumter | 14 November 1967 | 13 December 1969 | 20 June 1970 | 1993 | Sold to Republic of China Navy as Chung Ping | |
LST-1182 | Fresno | National Steel and Shipbuilding, San Diego, California | 16 December 1967 | 28 September 1968 | 22 November 1969 | 1993 | Disposed of in support of fleet training exercise, 15 September 2014 |
LST-1183 | Peoria | 22 February 1968 | 23 November 1968 | 21 February 1970 | 1994 | Disposed of in support of fleet training exercise, 7 December 2004 | |
LST-1184 | Frederick | 13 April 1968 | 8 March 1969 | 11 April 1970 | 2002 | Sold to Mexican Navy as ARM Usumacinta on 22 November 2002 | |
LST-1185 | Schenectady | 2 August 1968 | 24 May 1969 | 13 June 1970 | 1993 | Disposed of in support of fleet training exercise on 13 November 2004 | |
LST-1186 | Cayuga | 28 September 1968 | 12 July 1969 | 8 August 1970 | 1994 | Sold to Brazilian Navy as Mattoso Maia | |
LST-1187 | Tuscaloosa | 23 November 1968 | 6 September 1969 | 24 October 1970 | 1993 | Sunk as target, July 2014 | |
LST-1188 | Saginaw | 24 May 1969 | 7 February 1970 | 23 January 1971 | 1994 | Sold to Royal Australian Navy as HMAS Kanimbla, 1994 | |
LST-1189 | San Bernardino | 12 July 1969 | 28 March 1970 | 27 March 1971 | 1995 | Sold to Chilean Navy to as Valdivia | |
LST-1190 | Boulder | 6 September 1969 | 22 May 1970 | 4 June 1971 | 1994 | Awaiting disposal at Philadelphia. | |
LST-1191 | Racine | 13 December 1969 | 15 August 1970 | 9 July 1971 | 1993 | Sunk as a target on 12 July 2018 | |
LST-1192 | Spartanburg County | 7 February 1970 | 11 November 1970 | 1 September 1971 | 1994 | Sold to Royal Malaysian Navy as KD Sri Inderapura | |
LST-1193 | Fairfax County | 28 March 1970 | 19 December 1970 | 16 October 1971 | 1994 | Sold to Royal Australian Navy as HMAS Manoora, 1994 | |
LST-1194 | La Moure County | 22 May 1970 | 13 February 1971 | 18 December 1971 | 2000 | Disposed of in support of fleet training exercise on 10 July 2001 | |
LST-1195 | Barbour County | 15 August 1970 | 15 May 1971 | 12 February 1972 | 1992 | Disposed of in support of fleet training exercise on 6 April 2004 | |
LST-1196 | Harlan County | 7 November 1970 | 24 July 1971 | 8 April 1972 | 1995 | Sold to Spanish Navy as Pizarro, decommissioned in 2012 | |
LST-1197 | Barnstable County | 19 December 1970 | 2 October 1971 | 27 May 1972 | 1994 | Sold to Spanish Navy as Hernán Cortés, decommissioned in 2009 | |
LST-1198 | Bristol County | 13 February 1971 | 4 December 1971 | 5 August 1972 | 1994 | Sold to Royal Moroccan Navy as Sidi Mohammed Ben Abdallah | |
Export service
Australia
Two LSTs were acquired by the Royal Australian Navy in 1994; Sagainaw on 25 August and Fairfax County on 27 September. Renamed Kanimbla and Manoora, the two vessels underwent conversion in May 1995 at Forgacs Shipbuilding, Newcastle, New South Wales. The LSTs were significantly modified by removing their bow ramps and adding another deck over the bow of the ship, allowing for a third landing spot and increased aviation fuel capacity. Over the new deck two LCM-8 landing craft are carried when the third landing spot is not used, handled by a 70-ton crane. Improved medical facilities were constructed. A hangar was installed aft, allowing for the stowage of four Seahawk helicopters.[10][11] Both ships were based at Sydney, Australia.[11] The two vessels were taken out of service in 2011 and replaced by HMAS Choules and the Canberra-class landing helicopter docks.[12]
Ships in class
Kanimbla class[10] | ||||
Pennant No. | Ship name | Commissioned | Decommissioned | Fate |
---|---|---|---|---|
L 51 | Kanimbla | 29 August 1994 | 25 November 2011[13] | Sold for scrap and broken up at New Orleans, Louisiana in October 2013.[13][14] |
L 52 | Manoora | 25 November 1994 | 27 May 2011[14] | |
Brazil
The Brazilian Navy leased one Newport-class LST from the United States on 26 August 1994. Cayuga was renamed Mattoso Maia and arrived in October. The vessel was acquired outright on 19 September 2000. Negotiations for a second vessel, Peoria, were unsuccessfully ended in 2001.[15]
Ships in class
Mattoso Maia[15] | ||||
Pennant No. | Ship name | Commissioned | Decommissioned | Fate |
---|---|---|---|---|
G 28 | Mattoso Maia | 30 August 1994 | ||
Chile
The Chilean Navy leased one vessel of the class from the US. A second was offered, but the ship's poor condition led to it being rejected. San Bernardino was leased on 30 September 1995 and renamed Valdivia. In 1997, the LST ran aground and was damaged. Valdivia was refloated and repaired.[16] Due to the age of the vessel, Valdivia was taken out of service on 14 January 2011.[17]
Ships in class
Valdivia[16] | ||||
Pennant No. | Ship name | Commissioned | Decommissioned | Fate |
---|---|---|---|---|
93 | Valdivia | 30 September 1995 | 14 January 2011 | |
Malaysia
The Royal Malaysian Navy acquired one Newport-class LST from the United States on 16 December 1994. A second was to be leased in 1998, but the option was not taken up. Spartanburg County arrived in Malaysia in June 1995 and was renamed KRI Sri Inderapura. The vessel was refit between 1995 and 1998 at Johore. On 15 December 2002, the ship was damaged by fire.[18] On 8 October 2009, while berthed at the Lumut Naval Base, Sri Inderapura caught fire and sank. The vessel was later raised. Sri Inderapura was officially decommissioned by the Royal Malaysian Navy on 21 January 2010.[19][20]
Ships in class
Sri Inderapura[18] | ||||
Pennant No. | Ship name | Commissioned | Decommissioned | Fate |
---|---|---|---|---|
1505 | Sri Inderapura | 1995 | 21 January 2010 | Caught fire and sank on 8 October 2009. |
Mexico
Mexico acquired two ships from the United States. Newport was purchased on 18 January 2001 and renamed Sonora by the Mexican Navy, before becoming Rio Papaloapan. Frederick was purchased on 9 December 2002 and renamed Usumacinta.[21] Rio Papaloapan is based at Tampico and Usumacinta at Manzanillo.[22]
Ships in class
Newport class[21] | ||||
Hull No. | Ship name | Commissioned | Decommissioned | Fate |
---|---|---|---|---|
A411 (ex-A-04) | Rio Papaloapan (ex-Sonora) | 23 May 2001 | ||
A412 | Usumacinta | 9 December 2002 | ||
Morocco
The Royal Moroccan Navy acquired one ship from the United States as a grant transfer on 16 August 1994. Bristol County was renamed Sidi Mohammed Ben Abdallah upon entering Moroccan service. The LST was acquired to replace the aging Arrafiq. By late 1995, Sidi Mohammed Ben Abdallah was considered non-operational but was later returned to service.[23]
Ships in class
Sidi Mohammed Ben Abdallah[23] | ||||
Pennant No. | Ship name | Commissioned | Decommissioned | Fate |
---|---|---|---|---|
407 | Sidi Mohammed Ben Abdallah | 1995 | 2010 | Sunk as a target in May 2013 |
Spain
Two ships were leased by the Spanish Navy from the United States. The first, Barnstable County was recommissioned into the Spanish Navy on 26 August 1994 and renamed Hernán Cortés. The second, Harlan County, recommissioned on 14 April 1995 and was renamed Pizarro. Both ships were based at Rota, Spain.[24] Hernán Cortés was initially to be decommissioned in 2006, but continued until 2009, when the vessel was taken out of service. The LST was scrapped at Arinaga, Gran Canaria, Spain in 2014.[25][26] Pizarro was decommissioned in December 2012 and sold for scrap in February 2016 and was broken up at Cadiz beginning in March.[27]
Ships in class
Newport class[24] | ||||
Hull No. | Ship name | Commissioned | Decommissioned | Fate |
---|---|---|---|---|
L 41 | Hernán Cortés | 26 August 1994 | 2009 | Broken up for scrap at Arinaga, Gran Canaria, Spain 2014 |
L 42 | Pizarro | 14 April 1995 | December 2012 | Broken up for scrap in Cadiz, Spain in March 2016 |
Taiwan
Two ships were leased by the Republic of China Navy (ROCN) from the United States on 1 July 1995. Manitowoc and Sumter were taken to Newport News Shipbuilding and refitted before being recommissioned into the ROCN on 8 May 1997 and renamed Chung Ho and Chung Ping respectively. The two ships were purchased on 29 September 2000.[28]
Ships in class
Newport class[28] | ||||
Hull No. | Ship name | Commissioned | Decommissioned | Fate |
---|---|---|---|---|
232 | Chung Ho | 8 May 1997 | ||
233 | Chung Ping | |||
