Orthogonal frequency-division multiple access

Orthogonal frequency-division multiple access (OFDMA) is a multi-user version of the popular orthogonal frequency-division multiplexing (OFDM) digital modulation scheme. Multiple access is achieved in OFDMA by assigning subsets of subcarriers to individual users. This allows simultaneous low-data-rate transmission from several users. Channel hardening: channel hardening means that the fading channels behaves as if it was a non fading channel.The randomness is still there but its impact on the communication is still negligible. .

Multiplexing
Analog modulation
Statistical multiplexing
(variable bandwidth)
Related topics

Key points

The advantages and disadvantages summarized below are further discussed in the Characteristics and principles of operation section. See also the list of OFDM key features.

Claimed advantages over OFDM with time-domain statistical multiplexing
  • Allows simultaneous low-data-rate transmission from several users.
  • Pulsed carrier can be avoided.
  • Lower maximal transmission power for low-data-rate users.
  • Shorter delay and constant delay.
  • Contention-based multiple access (collision avoidance) is simplified.
  • Further improves OFDM robustness to fading and interference.
  • Combat narrow-band interference.

Claimed OFDMA advantages
  • Flexibility of deployment across various frequency bands with little needed modification to the air interface.[1]
  • Averaging interferences from neighbouring cells, by using different basic carrier permutations between users in different cells.
  • Interferences within the cell are averaged by using allocation with cyclic permutations.
  • Enables single-frequency network coverage, where coverage problem exists and gives excellent coverage.
  • Offers frequency diversity by spreading the carriers all over the used spectrum.
  • Allows per-channel or per-subchannel power.

Recognised disadvantages of OFDMA
  • Higher sensitivity to frequency offsets and phase noise.[1]
  • Asynchronous data communication services such as web access are characterised by short communication bursts at high data rate. Few users in a base station cell are transferring data simultaneously at low constant data rate.
  • The complex OFDM electronics, including the FFT algorithm and forward error correction, are constantly active independent of the data rate, which is inefficient from power-consumption point of view, while OFDM combined with data packet scheduling may allow FFT algorithm to hibernate during certain time intervals.
  • The OFDM diversity gain and resistance to frequency-selective fading may partly be lost if very few sub-carriers are assigned to each user, and if the same carrier is used in every OFDM symbol. Adaptive sub-carrier assignment based on fast feedback information about the channel, or sub-carrier frequency hopping, is therefore desirable.
  • Dealing with co-channel interference from nearby cells is more complex in OFDM than in CDMA. It would require dynamic channel allocation with advanced coordination among adjacent base stations.
  • The fast channel feedback information and adaptive sub-carrier assignment is more complex than CDMA fast power control.

Characteristics and principles of operation

Based on feedback information about the channel conditions, adaptive user-to-subcarrier assignment can be achieved.[2] If the assignment is done sufficiently fast, this further improves the OFDM robustness to fast fading and narrow-band cochannel interference, and makes it possible to achieve even better system spectral efficiency.

Different numbers of sub-carriers can be assigned to different users, in view to support differentiated Quality of Service (QoS), i.e. to control the data rate and error probability individually for each user.

OFDMA can be seen as an alternative to combining OFDM with time-division multiple access (TDMA) or time-domain statistical multiplexing communication. Low-data-rate users can send continuously with low transmission power instead of using a "pulsed" high-power carrier. Constant delay, and shorter delay, can be achieved.

OFDMA can also be described as a combination of frequency-domain and time-domain multiple access, where the resources are partitioned in the time–frequency space, and slots are assigned along the OFDM symbol index, as well as OFDM sub-carrier index.

OFDMA is considered as highly suitable for broadband wireless networks, due to advantages including scalability and use of multiple antennas (MIMO)-friendliness, and ability to take advantage of channel frequency selectivity.[1]

In spectrum sensing cognitive radio, OFDMA is a possible approach to filling free radio frequency bands adaptively. Timo A. Weiss and Friedrich K. Jondral of the University of Karlsruhe proposed a spectrum pooling system in which free bands sensed by nodes were immediately filled by OFDMA subbands.

Usage

OFDMA is used in:

OFDMA is also a candidate access method for the IEEE 802.22 Wireless Regional Area Networks (WRAN), a cognitive radio technology which uses white spaces in the television (TV) frequency spectrum, and the proposed access method for DECT-5G specification which aims to fulfill IMT-2020 requirements for high-throughput mobile broadband (eMMB) and ultra reliable low latency(URLLC) applications.

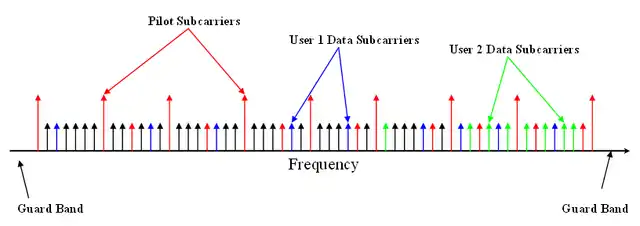

OFDMA subcarriers

See also

References
  1. Hujun Yin and Siavash Alamouti (August 2007). "OFDMA: A Broadband Wireless Access Technology". IEEE Sarnoff Symposium, 2006. IEEE: 1–4. doi:10.1109/SARNOF.2006.4534773.
  2. Guowang Miao; Guocong Song (2014). Energy and spectrum efficient wireless network design. Cambridge University Press. ISBN 1-107-03988-6.
