QF 4-inch naval gun Mk IV, XII, XXII

Ordnance QF 4 inch gun Mk IV, XII, XXII
Ordnance QF 4 inch gun Mk IV, XII, XXII
	Mk IV gun from HMS Lance at the Imperial War Museum, London
Type	Light Naval gun; Submarine gun
Place of origin	United Kingdom
Service history
In service	1911-1940s
Used by	United Kingdom
Wars	World War I; World War II
Production history
No. built	1,141[1]
Specifications
Mass	2,750 pounds (1,250 kg) barrel & breech
Barrel length	160 inches (4.064 m) bore (40 calibres)
Shell	Mk IV : Separate QF 31 pounds (14.06 kg);; Mk XII & XXII : Fixed QF 31 pounds (14.06 kg), 35 pounds (15.88 kg) from 1944[2]
Calibre	4-inch (101.6 mm)
Breech	horizontal sliding-block
Elevation	PIX Mount -10° to +20°; CPIII Mount -10° to +30°[1]
Muzzle velocity	Mk IV : 2,370 feet per second (720 m/s)[3]; Mk XII & XXII : 1,873 feet per second (571 m/s)
Maximum firing range	11,580 yards (10,590 m) at +30°[1]

The QF 4-inch gun Mk IV[note 1] was the main gun on most Royal Navy and British Empire destroyers in World War I. It was introduced in 1911 as a faster-loading light gun successor to the BL 4 inch Mk VIII gun. Of the 1,141 produced, 939 were still available in 1939.[1] Mk XII and Mk XXII variants armed many British interwar and World War II submarines.

Mk IV gun

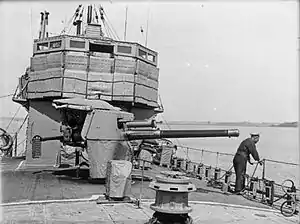

On R-class destroyer HMS Satyr circa. 1917 - 1918

Gun recoiling after firing, on Australian auxiliary anti-submarine vessel HMAS Wilcannia ca. 1943

Mk IV armed many British destroyers and some cruisers in World War I. It was used to arm merchant ships in World War II.

The guns armed the following warships :

Forward-class scout cruisers as re-gunned in 1911
Sentinel-class scout cruisers as re-gunned 1911-1912
Pathfinder-class scout cruisers as re-gunned 1911-1912
Adventure-class scout cruisers as re-gunned 1911-1912
Acasta (K)-class destroyers of 1911
Laforey (L)-class destroyers of 1913
Yarrow M-class destroyers laid down 1912 - 1915
Admiralty M-class destroyer of 1913
Thornycroft M-class destroyers laid down 1913 - 1915
Hawthorn M-class destroyer of 1914
Talisman-class destroyers of 1914
Medea-class destroyers of 1914
Faulknor-class leaders of 1914
Marksman-class destroyers of 1914
Parker class leaders of 1915
Yarrow Later M-class destroyers of 1915
R-class destroyers of 1916
S-class destroyers of 1917
Fundy-class minesweepers of 1938 (guns from decommissioned Canadian S-class destroyers)

Mk XII and XXII submarine gun

Mk XII gun on unidentified T-class submarine, during World War II

The Mk XII variant was developed for arming submarines from 1918, Mk XXII was developed to arm submarines during World War II. These submarine guns fired a heavier 35 pounds (16 kg) projectile from late 1944.[2] Shortly after the end of hostilities, the Mk XXII was superseded in new British submarines by the lighter QF 4 inch Mk XXIII.[4]

Mk XII and XXII equipped submarines

Surviving guns

The Mk IV gun from HMS Lance which fired the first British shot of World War I on 5 August 1914 is on display at the National Museum of the Royal Navy, Portsmouth.

Notes

Mk IV = Mark 4. Britain used Roman numerals to denote Marks (models) of ordnance until after World War II. This was the fourth model of 4-inch QF naval gun. Variants Mk XII = Mark 12, Mk XXII = Mark 22.

References

Campbell, Naval Weapons of WWII, p.59.
DiGiulian
2,370 ft/s for Mk IV gun with 31 lb (14 kg) projectile in WWI, using 5 lb 1 oz 12 drams cordite MD size 16 propellant (Treatise on Ammunition, 10th Edition 1915)
"Britain - 4"/33 (10.2 cm) QF Mark XXIII". www.navweaps.com. Tony DiGiulian. 22 October 2008. Retrieved 21 March 2014.

Sources

Tony DiGiulian, British 4"/40 (10.2 cm) QF Marks IV, XII and XXII
Campbell, John (1985). Naval Weapons of World War Two. Naval Institute Press. ISBN 0-87021-459-4.
