British Rail Class 220

The Class 220 Voyager is a class of diesel-electric high-speed multiple-unit trains built in Belgium by Bombardier Transportation in 2000 and 2001.

British Rail Class 220 Voyager
220 002 of Arriva CrossCountry on a Birmingham New St - Plymouth service passing Charfield, September 2010.
The interior of Standard Class aboard a CrossCountry Class 220
In service2001–present
ManufacturerBombardier Transportation
Built atBruges, Belgium & Horbury, United Kingdom
Family nameVoyager
Replaced
Constructed2000–2001
Number built34 trainsets
Number in service34 trainsets
Formation4 cars per trainset
Fleet numbers220001–220034
Capacity174 standard class, 26 first class
Operator(s)CrossCountry
Specifications
Car body constructionSteel
Car length23.85 m (driving cars) or 22.82 m (intermediate cars)
Width2.73 m (8 ft 11 in)
Articulated sectionsFlexible diaphragm (within unit only)
Maximum speed125 mph (200 km/h)
Weight185.6 t (182.7 long tons; 204.6 short tons) per trainset
Traction systemDEMU
Prime mover(s)Cummins QSK19[1] 19-litre 6-cylinder turbo-Diesel
Power outputEach engine: 560 kW (750 hp) at 1800 rpm
Total: 3,000 hp (2,240 kW)
TransmissionDiesel-electric
UIC classification1A'A1'+1A'A1'+1A'A1'+1A'A1'[2][3]
Braking system(s)Rheostatic
Safety system(s)AWS, TPWS
Coupling systemDellner[4]
Track gauge1,435 mm (4 ft 8 1⁄2 in) standard gauge

They were introduced in 2001 to replace the 20-year-old InterCity 125 and almost 40-year-old Class 47-hauled Mark 2 fleets operating on the Cross Country Route, initially for Virgin CrossCountry and since 2007 by CrossCountry.[5]

Technical details

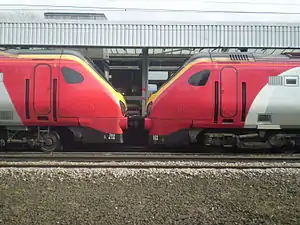

Classes 220 (left) and 221 (right) at Durham, showing the differing bogie designs

All coaches are equipped with a Cummins QSK19 diesel engine of 750 hp (560 kW) at 1800rpm. These power a generator which supplies current to motors driving two axles per coach,[6] with one axle per bogie powered.[7][8]

Voyagers have both air and rheostatic brakes. They are fitted with Dellner couplers, like the Class 222 operated by East Midlands Railway and the Class 390 Pendolino electric trains used by Avanti West Coast, meaning they can be coupled in rescue/recovery mode (air brake only) in the event of a failure. 220s and 221s can also be easily assisted by Dellner fitted Class 57s (Thunderbirds) in the event of a failure. By use of adaptor couplings a failed 220 or 221 can also be assisted by any air braked locomotive such as a Class 37, 47 or 66 or even an HST. The units can work in multiple with Class 221 units but not Class 222 units as the electrical connections of the Class 222 units are incompatible with the Class 220.

The Class 220s and closely related Class 222s have B5005 bogies,[2][7] which are distinctive as they are of inside-frame design and so the axles are supported by bearings behind the wheels, meaning the outside face of the wheel is visible. The related Class 221 Super Voyager has outside-frame bogies and hence a more conventional appearance.

The Class 220s operate in four-coach sets with a carriage mass of between 45 and 48 tonnes and a total train weight of 185.6 tonnes, a top speed of 125 mph (200 km/h) and a maximum range of approximately 1,350 miles (2,170 km) between each refuelling. Their route availability is very good being RA 2[6] - in part due to the lightweight bogie design.

Class 220 units are fitted with an AB Hoses variable rate sanding system.

All Voyagers are maintained at the dedicated Central Rivers TMD near Burton-on-Trent.

Accidents and incidents

Units have sometimes been stopped by salt water, when storm-driven waves broke over the train at Dawlish in south Devon and inundated the resistor banks, causing the control software to shut down.[9] This problem was fixed by an upgrade to the control software.[10]

There were a number of exhaust fires on the Voyager class during 2005–2006 due to incorrect fitting of equipment during overhauls. Fires occurred at Starcross (Class 221), Newcastle and on 19 January 2006 at Congleton.[11]

On 26 May 2006, a passenger was murdered aboard 220 005 as it approached Oxenholme whilst working the Glasgow to Paignton service.[12]

On 14 March 2008, 220 012, forming a service to Derby, had a roof fire at Banbury.[13][14] This fire was caused by a bird getting caught under one of the hot brake resistors on the roof of the train. Damage to the train was not serious and it was repaired and returned to service.

Formation and passenger facilities
The interior of First Class aboard a Class 220

Class 220s operate in four-coach sets. These trains, unlike the older trains they replaced, feature electronic information displays on the exterior walls showing the train number, the departure time, the coach, the train's destination, and the next station. This is also a feature of the Class 221 and Class 222 trains (The Class 390 trains also have such electronic information displays, but in the doors). They are air-conditioned throughout, with powered doors. The coaches are fitted with power sockets for laptop computers and mobile phone charging. Toilet facilities for disabled people and storage facilities for bicycles are provided.

They provide 26 seats in 2+1 formation in first class and 174 seats in 2+2 formation in standard class.

The formation of a four-car Class 220 is as follows:[1]

  • 604## - Coach A - 26 seats - First Class with disabled area, train manager office, first class catering area and driving cab, toilet.
  • 602## - Coach C - 66 seats - Standard Class. Toilet.
  • 607## - Coach D - 66 seats - Standard Class with large luggage area and reservable space for three bikes. No toilet.
  • 603## - Coach F - 42 seats - Standard Class with disabled area, catering base and driving cab. Toilet.

There is no coach B on the four car class 220; it exists on the 5-car Class 221 and is usually a coach which holds no reservations. This aids short-term fleet changes, for example if a Class 220 is running in a diagram that usually has a Class 221, then the loss of a coach will not affect the reservation system, as they will all still be allocated.

CrossCountry has finished updating the interior layout of all its 220 and 221 sets; the aim is to increase seating capacity, in line with its commitments to the franchise agreements, as well as provide an at-seat trolley service for refreshments instead of a shop. Research had shown that the shop was not making as good a turnover as hoped because people prefer not to leave their seats to get refreshments; they feared either losing their seat or having their belongings stolen when away. In Virgin Trains' unsuccessful franchise bid, it also cited removal of the shop from 220s and 221s as a way of trying to improve seating capacity. The interior renovation involved the removal of the shop from coach D and the conversion of the stowage area in coach F to a catering storage area where there is now a fridge, food storage and a space for an on-board trolley to be stored. Bicycle storage has been moved to coach D where the shop was. It can now store three bicycles instead of four.

Operations
220004 New Dawn at Elford in June 2001.
CrossCountry Class 220 unit 220032 on a curve at Langstone Rock near Dawlish.
Main article: Cross Country Route

All units are owned by Beacon Rail, after they were purchased from Voyager Rail Leasing,[15] a consortium of Lloyds Banking Group and Angel Trains.[16] They are leased to the train operating companies; as of 2013, CrossCountry is the only operator of Class 220 units.

Virgin CrossCountry was the sole operator of Class 220 Voyager trains when they were introduced in 2001. When the Cross Country Route franchise was transferred to Arriva CrossCountry in November 2007, most of the Voyager fleet was transferred with it, and by the end of 2007 CrossCountry was the sole operator of Class 220 units.

The 220s often operate in multiple with Class 221 units, which are mechanically similar except for their bogies and have the same coupler type.

Fleet details

There are 34 Class 220 Voyager trains, numbered 220 001–220 034.

Class Operator Number Year Built Cars per Set Unit No.
220 CrossCountry 34 2000–01 4 220001–034

Virgin Trains named all the Class 220 Voyagers after places that they serve or companies that have relations with Virgin Trains.

220 001Somerset Voyager (previously Maiden Voyager)220 018Dorset Voyager (previously Central News)
220 002Forth Voyager220 019Mersey Voyager
220 003Solent Voyager220 020Wessex Voyager
220 004Cumbrian Voyager (previously New Dawn)220 021Staffordshire Voyager (previously Blackpool Voyager)
220 005Guildford Voyager220 022Brighton Voyager
220 006Clyde Voyager220 023Mancunian Voyager
220 007Thames Voyager220 024Sheffield Voyager
220 008Welsh Dragon220 025Severn Voyager (previously Virgin Voyager)
220 009Gatwick Voyager220 026Stagecoach Voyager
220 010Ribble Voyager220 027Avon Voyager
220 011Tyne Voyager220 028Black Country Voyager
220 012Lanarkshire Voyager220 029Cornish Voyager
220 013South Wales Voyager220 030Devon Voyager
220 014South Yorkshire Voyager220 031Tay Voyager
220 015Solway Voyager220 032Grampian Voyager
220 016Midland Voyager220 033Fife Voyager
220 017Bombardier Voyager220 034Yorkshire Voyager

When the Class 220s were transferred to the new operator CrossCountry, all the names were removed. All Class 220 Voyagers are now in CrossCountry livery.[17]
