Coaling tower
A coaling tower, coal stage or coaling station is a facility used to load coal as fuel into railway steam locomotives. Coaling towers were often sited at motive power depots or locomotive maintenance shops.[1]
Coaling towers were constructed of wood, steel-reinforced concrete, or steel. In almost all cases coaling stations used a gravity fed method, with one or more large storage bunkers for the coal elevated on columns above the railway tracks, from which the coal could be released to slide down a chute into the waiting locomotive's coal storage area. The method of lifting the bulk coal into the storage bin varied. The coal usually was dropped from a hopper car into a pit below tracks adjacent to the tower. From the pit a conveyor-type system used a chain of motor-driven buckets to raise the coal to the top of the tower where it would be dumped into the storage bin; a skip-hoist system lifted a single large bin for the same purpose.[2][3] Some facilities lifted entire railway coal trucks or wagons. Sanding pipes were often mounted on coaling towers to allow simultaneous replenishment of a locomotive's sand box.
As railroads transitioned from the use of steam locomotives to the use of diesel locomotives in the 1950s the need for coaling towers ended. Many reinforced concrete towers remain in place if they do not interfere with operations due to the high cost of demolition incurred with these massive structures.[1][4]
Existing Coaling Towers
The sortable tables below list existing steam locomotive coaling towers, coal stages, coal docks, coal chutes, and automatic loaders with the following information when known:
- Place name where the coaling tower is located.
- State, province, or county in which the coaling tower is located.
- Railroad for which the coaling tower was originally built.
- Year in which the coaling tower was built.
- Type of coaling station: tower or stage, chutes, dock, automatic loader.
- Capacity in tons of coal which the coaling tower was built to store.
- Builder or designer company.
- Remarks: whether the tower is adjacent to active tracks, name of the railroad yard, similar towers, number of tracks the tower was built to serve.
- Geographic coordinates.[5]
Australia
Place Name | State | Railroad | Year Built | Type | Capacity (tons) | Builder | Remarks | Coordinates |
---|---|---|---|---|---|---|---|---|
Caron[6] | Western Australia | Western Australian Government Railways | 1931 | Coal stage | 29°34′54″S 116°19′04″E | |||
Casino[7] | New South Wales | Coal stage | Active tracks | 28°51′14″S 153°02′23″E |
Canada
Place Name | Province | Railroad | Year Built | Type | Capacity (tons) | Builder | Remarks | Coordinates |
---|---|---|---|---|---|---|---|---|
Aylmer | Ontario | Wabash Railroad | c1939 | Coaling tower | Active tracks | 42°46′49″N 80°59′46″W | ||
Fire River | Ontario | Canadian National Railway | Coaling tower | Location and status uncertain, similar to Camak, Chaska, Hornepayne, Social Circle, Washago | 48°46′05″N 83°35′57″W | |||
Foleyet | Ontario | Canadian National Railway | Coaling tower | Active tracks | 48°14′52″N 82°26′31″W | |||
Hornepayne | Ontario | Canadian National Railway | 1921 | Coaling tower | Active tracks, similar to Camak, Chaska, Fire River, Social Circle, Washago | 49°13′14″N 84°46′28″W | ||
South River | Ontario | Grand Trunk Railway | Coaling tower | Active tracks | 45°50′41″N 79°22′30″W | |||
Toronto | Ontario | Canadian Pacific Railway | Coaling tower | Moved to Toronto Railway Museum, Roundhouse Park | 43°38′29″N 79°23′12″W | |||
Washago | Ontario | Canadian National Railway | 1936 | Coaling tower | Active tracks, similar to Camak, Chaska, Fire River, Hornepayne, Social Circle | 44°44′46″N 79°20′04″W |
Chile
Place Name | Region | Railroad | Year Built | Type | Capacity (tons) | Builder | Remarks | Coordinates |
---|---|---|---|---|---|---|---|---|
San Rosendo | Bío Bío Region | Ferrocarriles del Estado | 1929 | Coaling tower | 450 | 37°15′55″S 72°43′32″W | ||
Temuco | Araucanía Region | Ferrocarriles del Estado | 1935 | Coaling tower | 3,000 | es:Museo Nacional Ferroviario Pablo Neruda | 38°43′41″S 72°34′14″W |
Poland
Place Name | Province | Railroad | Year Built | Type | Capacity (tons) | Builder | Remarks | Coordinates |
---|---|---|---|---|---|---|---|---|
Gdynia, Grabowek | Pomorskie | Polskie Koleje Państwowe | c1950 | Coaling tower | Ross & White Company | Construction plans and mechanisms provided by UNRRA; similar to Kraków, Sullivan, Tarnowskie Gory, Warszawa | 54°32′07″N 18°30′08″E | |
Kraków, Prokocim | Małopolskie | Polskie Koleje Państwowe | c1950 | Coaling tower | Ross & White Company | Construction plans and mechanisms provided by UNRRA; similar to Gdynia, Sullivan, Tarnowskie Gory, Warszawa | 50°01′28″N 20°01′27″E | |
Tarnowskie Gory | Śląskie | Polskie Koleje Państwowe | c1950 | Coaling tower | Ross & White Company | Construction plans and mechanisms provided by UNRRA; similar to Gdynia, Kraków, Sullivan, Warszawa | 50°28′06″N 18°52′53″E | |
Warszawa, Odolany | Mazowieckie | Polskie Koleje Państwowe | 1951 | Coaling tower | Ross & White Company | Construction plans and mechanisms provided by UNRRA; similar to Gdynia, Kraków, Sullivan, Tarnowskie Gory | 52°13′00″N 20°55′32″E |
South Africa
Place Name | State | Railroad | Year Built | Type | Capacity (tons) | Builder | Remarks | Coordinates |
---|---|---|---|---|---|---|---|---|
Beaconsfield | Kimberley, Cape Provine | Coaling ramp | Active tracks | 28°46′06″S 24°46′17″E | ||||
Voorbaai | Coaling tower | Active tracks | 34°08′08″S 22°06′17″E |
United Kingdom
Place Name | County | Railroad | Year Built | Type | Capacity (tons) | Builder | Remarks | Coordinates |
---|---|---|---|---|---|---|---|---|
Carnforth[8] | Lancashire | London, Midland and Scottish Railway | 1939 | Coaling tower | 150 | Active tracks, at Carnforth Motor Power Depot | 54°07′47″N 2°46′23″W | |
Didcot | Oxfordshire | Great Western Railway | 1932 | Coaling stage | Active tracks, at Didcot Railway Centre | 51°36′45″N 1°14′38″W | ||

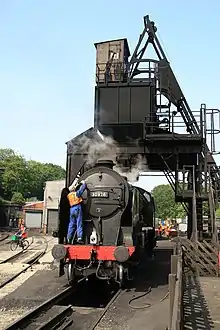

Grosmont | Yorkshire | Coaling stage | Steel tower, active tracks, North Yorkshire Moors Railway | 54°25′57″N 0°43′30″W | ||||
Tyseley | West Midlands | Great Western Railway | 1930s | Coaling stage | Active tracks plant disused, at Tyseley Locomotive Works | 52°27′19″N 1°50′41″W |
A coaling tower was formerly located in Immingham at the old Immingham TMD. The trackwork around the coal tower had been removed years before and the tower had not been used since 1966. Due to the condition of the tower (which was suffering from concrete cancer making it structurally unsafe), the tower was demolished in February 2018.[9]
United States
Gallery
- Hornepayne, Ontario
- Toronto, Ontario
- Temuco, Chile
- Tarnowskie Góry, Poland
- SAR Class 25NC 3437 (4-8-4) at the coal stage at Beaconsfield, South Africa
- Carnforth, United Kingdom
- Didcot, United Kingdom
- Immingham, United Kingdom
- Cedar Hill Yard, Connecticut
- Camak, Georgia
- Macon, Georgia
- Social Circle, Georgia
- Chama, New Mexico
- Bluefield, West Virginia
- Hinton, West Virginia
- Thurmond, West Virginia
- Mescal, Arizona (demolished)
- Locomotive 2576 over ash pit at the roundhouse and coaling station at the Chicago and Northwestern Railroad yards, Chicago, Illinois (demolished)
- Lordsburg, New Mexico (demolished)
- Collinwood Yard, Cleveland, Ohio (demolished)
- Michigan City, Indiana
- Grand Trunk Western coaling tower, Grand Haven, Michigan
- Locomotive coaling trestle, Beacon Park Yard, Boston, Massachusetts, circa 1900
See also
- Grand Trunk Western Railroad Grand Haven Coal Tipple: A coaling tower on the National Register of Historic Properties
- Coalinga, California: A town founded as a coaling tower operation.
- Motive power depot
- Roundhouse
