Fiat 6614

The Fiat Type 6614 is a 4x4 wheeled armoured personnel carrier developed as a joint venture between Fiat and Oto Melara of Italy. The hull is welded steel, and the vehicle is amphibious.[1] The first prototype was built in 1972.

Type 6614
Fiat Type 6614
TypeWheeled Armoured Personnel Carrier
Place of originItaly
Service history
Used bySee: Users
WarsSomali Civil War
Production history
ManufacturerFiat-Oto Melara
Asia Motors (KM900 version only)
VariantsType 6616, KM900
Specifications
Mass8,500 kg (1,340 st)
Length5.86 m (19.2 ft)
Width2.5 m (8.2 ft)
Height1.78 m (5.8 ft)
Crew1-2 crew + 8-10 passengers (Type 6614 & KM900)
ArmourSteel
Main
armament
Type 6614 & KM900:
1 x 7.62mm machine gun or
1 x .50 cal machine gun
Type 6616:
1 x 7.62mm machine gun
1 x 20mm Rheinmetall MK 20 Rh 202 autocannon
Engine1 x IVECO Model 8062.24
160hp @ 3,200rpm
Suspensionwheeled 4x4
Operational
range
700 km
Maximum speed 100 km/h (62 mph)

Description

The 6614 hull is made of welded steel with a uniform thickness of 8 mm; the driver's seat is on the front of the vehicle on the left and is equipped with episcopes that allow observation of the vehicle in front and to the sides. The engine with the transmission is located in the front right side of the vehicle in order to leave as much space as possible to the team of soldiers transported in the rear, equipped with a hatch for the rapid disembarkation / embarkation of men. The Blindo could be armed with a simple turret (which can be folded down to facilitate strategic transport) manually operated (the same as the VCC-1 Camillino) equipped with a 12.7 mm heavy machine gun. There is also has a hatch in the middle of the vehicle and there are side slits and rear equipped with fume extractor from the fighting compartment, that allow the safe use of personal armament by the transported personnel. On each side of the turret there is finally an installation for three electrically operated fog-type grenade launchers.


A particular feature that distinguishes this medium is its ability to act as an amphibious medium. The thrust in the water is provided by the movement created by the wheels, while the buoyancy is allowed thanks to the shape of the vehicle and the joints to make it waterproof. Because of its ability to be amphibious, the Fiat 6614 can be very useful in rescue missions and emergencies such as natural disasters, and for this reason it is still in service in the mobile police of the State Police.

Variants

Type 6616

The Type 6616 was a version of the Type 6614 that incorporated a turret armed with a 20mm autocannon. The turret was designed, built, and installed by Oto Melara.[2]

KM900

The KM900 was a version of the Fiat 6614 produced under license by Asia Motors for use by the Republic of Korea Army. It is expected that the KM900s will be phased out with the introduction of the KNAV (KW1 Scorpion).

Operators

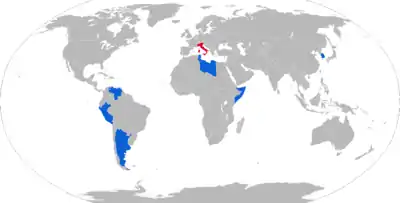

Map of Fiat 6614 operators in blue with former operators in red

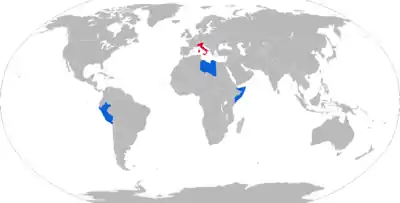

Map of Fiat 6616 operators in blue with former operators in red

Type 6614

Type 6616

Type 6614

Type 6616

Note: Numbers reflect total orders/production for each country. Current holdings may be different.
