Kayenta Formation

Kayenta, Arizona is a settlement in the Navajo reservation.

Kayenta Formation Stratigraphic range: Sinemurian-Pliensbachian,[1] 196.5–183.0 Ma PreꞒ Ꞓ O S D C P T J K Pg N
Kayenta Formation, Capitol Reef National Park, Utah.
Type	Geological formation
Unit of	Glen Canyon Group
Underlies	Navajo Sandstone
Overlies	Wingate Sandstone
Thickness	100 to 120 metres (330 to 390 ft)
Lithology
Primary	Sandstone
Other	Siltstone, Limestone
Location
Coordinates	37.8°N 110.6°W
Country	United States
Extent	northern Arizona, northwest Colorado, Nevada, and Utah
Type section
Named for	Kayenta, Arizona

The Kayenta Formation is a geologic layer in the Glen Canyon Group that is spread across the Colorado Plateau province of the United States, including northern Arizona, northwest Colorado, Nevada, and Utah.

This rock formation is particularly prominent in southeastern Utah, where it is seen in the main attractions of a number of national parks and monuments. These include Zion National Park, Capitol Reef National Park, the San Rafael Swell, and Canyonlands National Park.

The Kayenta Formation frequently appears as a thinner dark broken layer below Navajo Sandstone and above Wingate Sandstone (all three formations are in the same group). Together, these three formations can result in immense vertical cliffs of 2,000 feet (610 m) or more. Kayenta layers are typically red to brown in color, forming broken ledges.

Kayenta Formation in Utah

Southeast Utah

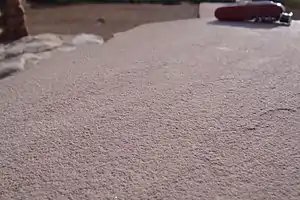

Parting lineation, from lower left to upper right; Kayenta Formation, Canyonlands National Park.

The Permian through Jurassic stratigraphy of the Colorado Plateau area of southeastern Utah that makes up much of the famous prominent rock formations in protected areas such as Capitol Reef National Park and Canyonlands National Park. From top to bottom: Rounded tan domes of the Navajo Sandstone, layered red Kayenta Formation, cliff-forming, vertically-jointed, red Wingate Sandstone, slope-forming, purplish Chinle Formation, layered, lighter-red Moenkopi Formation, and white, layered Cutler Formation sandstone. Picture from Glen Canyon National Recreation Area, Utah.

In most sections that include all three geologic formations of the Glen Canyon group the Kayenta is easily recognized. Even at a distance it appears as a dark-red, maroon, or lavender band of thin-bedded material between two thick, massive, cross bedded strata of buff, tan, or light-red color. Its position is also generally marked by a topographic break. Its weak beds form a bench or platform developed by stripping the Navajo sandstone back from the face of the Wingate cliffs. The Kayenta is made up of beds of sandstone, shale, and limestone, all lenticular, uneven at their tops, and discontinuous within short distances. They suggest deposits made by shifting streams of fluctuating volume. The sandstone beds, from less than 1-inch (25 mm) to more than 10 feet (3.0 m) thick, are composed of relatively coarse, well-rounded quartz grains cemented by lime and iron. The thicker beds are indefinitely cross bedded. The shales are essentially fine-grained, very thin sandstones that include lime concretions and balls of consolidated mud. The limestone appears as solid gray-blue beds, a few inches to a few feet thick, and as lenses of limestone conglomerate. Most of the limestone lenses are less than 25 feet (7.6 m) long, but two were traced for nearly 500 feet (150 m) and one for 1,650 feet (500 m).

Viewed as a whole, the Kayenta is readily distinguished from the geologic formations above and below it. It is unlike them in composition, color, manner of bedding, and sedimentary history. Obviously the conditions of sedimentation changed in passing from the Wingate Sandstone formation to the Kayenta and from the Kayenta to the Navajo sandstone, but the nature and regional significance of the changes have not been determined. In some measured sections the transition from Wingate to Kayenta is gradual; the material in the basal Kayenta, beds seems to have been derived from the Wingate immediately below and redeposited with only the discordance characteristic of fluviatile sediments. But in many sections the contact between the two formations is unconformable; the basal Kayenta consists of conglomerate and lenticular sandstone that fills depressions eroded in the underlying beds. In Moqui Canyon near Red Cone Spring nearly 10 feet (3.0 m) of Kayenta limestone conglomerate rests in a long meandering valley cut in Wingate. Likewise, the contact between the Kayenta and the Navajo in places seems to be gradational, but generally a thin jumbled mass of sandstone and shales, chunks of shale and limestone, mud balls, and concretions of lime and iron, lies at the base of the fine-grained, cross bedded Navajo. Mud cracks, a few ripple marks, and incipient drainage channels were observed in the topmost bed of the Kayenta on Red Rock Plateau; and in west Glen Canyon, wide sand-filled cracks appear at the horizon. These features indicate that, in places at least, the Wingate and Kayenta were exposed to erosion before their overlying geologic formations were deposited, are it may be that the range in thickness of the Kayenta thus in part (is) accounted for.

Southwest Utah

The red and mauve Kayenta siltstones and sandstones that form the slopes at base of the Navajo Sandstone cliffs record the record of low to moderate energy streams. Poole (1997) has shown that the streams still flowed toward the east depositing from 150 to 210 m (500 to about 700 feet) of sediment here. The sedimentary structures showing the channel and flood plain deposits of streams are well exposed on switchbacks below the tunnel in Pine Creek Canyon.

In the southeastern part of Zion National Park a stratum of cross bedded sandstone is found roughly halfway between the top and bottom of the Kayenta Formation. It is a "tongue" of sandstone that merges with the Navajo formation east of Kanab, and it shows that desert conditions occurred briefly in this area during Kayenta time. This tongue is the ledge that shades the lower portion of the Emerald Pool Trail, and it is properly called Navajo, not Kayenta.

Fossil mudcracks attest to occasional seasonal climate, and thin limestones and fossilized trails of aquatic snails or worms mark the existence of ponds and lakes. The most interesting fossils, however, are the dinosaur tracks that are relatively common in Kayenta mudstone.

These vary in size, but all seem to be the tracks of three-toed reptiles that walked upright, leaving their tracks in the muds on the flood plains. Unfortunately, so far no bone materials have been found in Washington County that would enable more specific identification.

Apparently during Kayenta time Zion was situated in a climatic belt like that of Senegal with rainy summers and dry winters at the southern edge of a great desert. The influence of the desert was about to predominate, however, as North America drifted northward into the arid desert belt.

Glen Canyon

The Kayenta Formation is approximately 400 feet (120 m) thick and consists of a fine-grained sandstone interbedded with layers of siltstone. The alternation of these units generally produces a series of ledges and slopes between the cliffs of the Navajo and Moenave formation. Dinosaur tracks are fairly common in the siltstone, and fresh water mussels and snails occur but are rare. The Kayenta Formation is colored pale red and adds to the splendor of the Vermilion Cliffs. It accumulated as deposits of rivers.

Vertebrate paleofauna

Color key Taxon Reclassified taxon Taxon falsely reported as present Dubious taxon or junior synonym Ichnotaxon Ootaxon Morphotaxon		Notes Uncertain or tentative taxa are in small text; crossed out taxa are discredited.

Amphibians

Amphibians reported from the Kayenta Formation
Genus	Species	Location	Stratigraphic position	Material	Notes	Images
Prosalirus[2]		Arizona.[2]				Prosalirus

Testudinatans

Testudinatans reported from the Kayenta Formation
Genus	Species	Location	Stratigraphic position	Material	Notes	Images
Kayentachelys[3]		Arizona[3]				Kayentachelys

Crocodylomorphs

Crocodylomorphs reported from the Kayenta Formation
Genus	Species	Location	Stratigraphic position	Material	Notes	Images
Kayentasuchus[4]	K. walkeri	Geographically present in Arizona.[4]
Eopneumatosuchus[5]	E. colberti	Geographically present in Arizona.
Calsoyasuchus[6]	C. valliceps	Geographically present in Arizona.

Ornithodires

Indeterminate ornithischian remains located in Arizona, USA.[7] Ornithischian tracks located in Arizona, USA.[7] An unnamed Heterodontosaurid genus located in Arizona, USA.[7] Indeterminate theropod remains located in Arizona, USA.[7] Theropod tracks located in Arizona and Utah, USA.[7] Possible theropod tracks located in Arizona, Colorado, and Utah, USA.[7] Unnamed coelophysoid genus located in Arizona, USA.[7] A indeterminate basal thyreophoran is known from the formation.[7]

Ornithodires reported from the Kayenta Formation
Genus	Species	Location	Stratigraphic position	Material	Notes	Images
Dilophosaurus[7]	D. wetherilli[7]	Arizona[7]		"2 associated subadult skeletons, partial skeleton, 4 other fragmentary individuals."[8]		Coelophysis kayentakatae Kayentavenator Dilophosaurus Sarahsaurus Scutellosaurus
Kayentavenator[9]	K. elysiae[9]	Arizona[9]			Originally referred to M. kayentakatae by Rowe.
Sarahsaurus	Sarahsaurus aurifontanalis[7]	Arizona[7]			Originally thought to be Massospondylus[7]
Coelophysis	C. kayentakatae[7]	Arizona[7]		"1 articulated skull and postcranial skeleton, 2 fragmentary skeletons, 1 incomplete skeleton" Both adults and sub adults are known from the formation.[8]	Note: Referred to as Syntarsus by Weishampel et al.[7] Formerly known as Megapnosaurus.[10]
Rhamphinion[11]	R. jenkinsi[11]	Little Colorado River Valley, Arizona.[11]	Middle[11]		A pterosaur, possibly a "rhamphorhynchoid"
Scutellosaurus[7]	S. lawleri[7]	Arizona[7]		"Fragmentary skull and skeleton from at least [two] individuals."[12]

Tritylodonts

Tritylodonts of the Kayenta Formation
Genus	Species	Location	Stratigraphic position	Material	Notes	Images
Dinnebitodon[13]	D. amarali[13]	Geographically located in Arizona, USA.[13]				Skull of Kayentatherium Oligokyphus
Kayentatherium[14]	K. wellesi[14]	Geographically located in Arizona, USA.[14]
Oligokyphus[15]	O. sp.	Geographically located in Arizona, USA.[15]
