Paris Métro Line 11

Paris Métro Line 11 (French: Ligne 11 du métro de Paris) is one of the sixteen lines of the Paris Métro. It links Châtelet to Mairie des Lilas in the northeastern suburbs. At a length of 6.3 km (3.9 mi) and 13 stations served, it is currently the shortest of the 14 main Métro lines (excluding Line 3bis and Line 7bis) but is being extended by 6 stations. With 47.1 million riders in 2017, it is the thirteenth busiest line of the network.

Line 11
Arts et Métiers designed in a steampunk style
Overview
LocaleParis and Les Lilas
TerminiChâtelet
Mairie des Lilas
Connecting lines

Stations13
Service
SystemParis Métro
Operator(s)RATP
Rolling stockMP 59
(24 trains as of 31 October 2010)
MP 73
(1 train as of 3 December 2017)
Ridership47.1 million (avg. per year)
13th/16 (2017)
History
Opened28 April 1935 (28 April 1935)
Technical
Line length6.3 km (3.9 mi)
Track gauge1,435 mm (4 ft 8 1⁄2 in) standard gauge
between roll ways
Electrification750 V DC guide bars on either side of the track
Conduction systemConductor
Average inter-station distance525 m (1,722 ft)
Route map
proposed extension
 Noisy – Champs
Neuilly – Hôpitaux
 Neuilly – Les Fauvettes
 Villemomble
Rosny Maintenance Centre
 Rosny – Bois-Perrier
Côteaux Beauclair
 La Dhuys
 Montreuil - Hôpital
Place Carnot
Serge Gainsbourg
under construction
Lilas Shops
 Mairie des Lilas
 Porte des Lilas
Télégraphe
 Place des Fêtes
Jourdain
 Pyrénées
 Belleville
Goncourt
 République
Arts et Métiers
Rambuteau
 Hôtel de Ville
Victoria Depôt
 Châtelet

Unlike most Paris Métro lines, Line 11 was not included in the original late 19th century scheme. Designed to replace the former Belleville funicular tramway, it was opened in 1935 and intended to create a more effective transportation system which could handle the increasing traffic on the route, as well as to extend it to the center of Paris. An extension from Les Lilas to Rosny-Bois-Perrier station is currently being built; featuring 6 stations, it will be opened in 2023.[1]

Chronology
  • 29 December 1922: Paris council voted for the creation of a new metro line which would replace the Belleville funicular and which would be extended to Châtelet.
  • 28 April 1935: Line 11 was inaugurated from Châtelet to Porte des Lilas.
  • 17 February 1937: The line was extended from Porte des Lilas to Mairie des Lilas.
  • 8 November 1956: The rails were adapted to allow for rubber-tyred trains.

Rolling stock

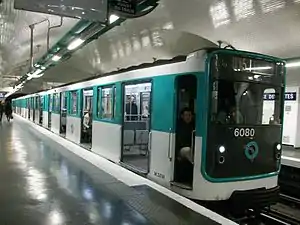

An MP 59-trainset
As the current MP 59 stock is becoming outdated, it is possible that the MP 73 stock from Line 6 may replace them, so now they circulate from this Line.
Another option being considered for the replacement of the MP 59 on Line 11 is the MP 89CC stock from Line 4 (originally from Line 1).

Being the first metro line to be converted to rubber-tyred pneumatic operation, the first set of rubber-tyred rolling stock to be in service on Line 11 was the MP 55, which operated from October 1956 through January 1999. They were then replaced by refurbished MP 59 stock from Line 4. The MP 55 stock consisted of 4 carriages, as well as the current MP 59 stock. One MP 73 of line 6 is in service on the 11 as well.

The current plan, according to Île-de-France Mobilités, is to replace the current fleet of Line 11 with 41 trains of the MP 14 series, around the time when the extension to Rosny-sous-Bois opens. Although the new trains will be driver-operated in the same method as the current fleet, they will be 5 cars long, and have open gangways.[2][3]

Future
  • A six-station, 5 km (3.1 mi) extension eastbound from Mairie des Lilas to Rosny-sous-Bois is under construction to ensure better commuter service to the Northeastern inner suburbs.
  • The scheme was first proposed by the local government authorities, and adopted during the 2007 review of the Ile-de-France Transportation Plan.
  • Preliminary work on this extension to Rosny – Bois-Perrier started in 2015. It is expected to open by 2023.
  • The extension will provide new connections with the RER E and the extended tramway line 1, which will be linked more easily to the downtown and the commuter hub of Châtelet les Halles.
List of new stations and transfers (with expected opening dates)
New stations Towns served Expected opening date
Serge Gainsbourg Les Lilas 2023
Place Carnot (Transfer with Tram 1) Romainville, Noisy-le-Sec 2023
Montreuil – Hôpital Montreuil, Noisy-le-Sec 2023
La Dhuys Montreuil, Noisy-le-Sec, Rosny-sous-Bois 2023
Côteaux Beauclair Noisy-le-Sec, Rosny-sous-Bois 2023
Rosny – Bois-Perrier (Transfer with RER ) Rosny-sous-Bois 2023

Revisions in the Grand Paris Express Plan and possible automation

A revised plan for the proposed Grand Paris Express subway system was unveiled on 6 March 2013. The revisions call for a second extension of Line 11 towards Noisy-Champs by 2030, although it is unclear if this goal will be attainable. Should the second extension commence, it is slated to come with a full automation of Line 11.[4] Automation is currently not planned for the Rosny extension, though the RATP and STIF had considered the possibility of automating the line later on.

Route
Geographically accurate route of Métro Line 11.

Tourism

Metro line 11 passes near several places of interest :

See also
