TranzAlpine

The TranzAlpine is a passenger train operated by The Great Journeys of New Zealand in the South Island of New Zealand over the Midland Line; often regarded to be one of the world's great train journeys for the scenery through which it passes (see famous trains). The journey is 223 kilometres (139 mi) one-way, taking almost five hours. There are 16 tunnels and four viaducts, with the Staircase Viaduct elevated as much as 75 metres (246 ft).

TranzAlpine

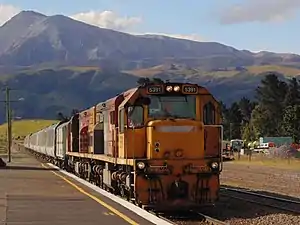

The eastbound TranzAlpine, arriving in Springfield.
Overview
Service type	Inter-city rail
Status	Operating
Locale	South Island, New Zealand
First service	22 November 1987
Current operator(s)	The Great Journeys of New Zealand
Former operator(s)	InterCity Rail (1987–1995) Tranz Scenic 1995–2012 KiwiRail Scenic Journeys 2012–2017
Ridership	204,000 (2006 financial year)
Website	www.greatjourneysofnz.co.nz/tranzalpine/
Route
Start	Christchurch
Stops	9
End	Greymouth
Distance travelled	223 km (139 mi)
Average journey time	4 hours, 50 minutes
Service frequency	Daily each way
On-board services
Class(es)	Scenic Class, Scenic Plus Class
Seating arrangements	Airline style Table bay
Catering facilities	On-board café
Observation facilities	Large windows in all carriages Open-air viewing carriage
Baggage facilities	Overhead glass shelves Baggage carriage
Other facilities	Toilets
Technical
Rolling stock	Two DX locomotives Four to six AK carriages One to two AKCs café carriages One to two open-air observation AKV vans One AKL luggage van
Track gauge	1,067 mm (3 ft 6 in)
Route map km h:mm Main North Line to Picton 00.5 0:00 Christchurch 00.0 0:01 start of Main North Line Main South Line to Lyttelton 0:01 Addington Junction Main South Line 31.9 0:19 Rolleston Main South Line to Timaru 00.0 0:20 start of Midland Line 0:38 Darfield Whitecliffs Branch Oxford Branch to Main North Line Sheffield 1:00 Springfield Tunnel 1 Paterson's Creek bridge Tunnels 2 - 4 Tunnels 5 - 7 Staircase viaduct Tunnels 8 - 10 Broken River viaduct Tunnels 12 - 16 Bridge 28 "Slovens Creek" 1:57 Cass Waimakariri River bridge Bealey River bridge 2:27 Arthur's Pass Otira Tunnel 8.566 km 5.323 mi Rolleston River bridge 2:48 Otira 3:07 Jackson Taramakau River bridge Inchbonnie (flag station) Crooked River bridge 3:32 Moana Arnold River bridge Tunnel 18 3:48 Kokiri Stillwater–Ngākawau Line Stillwater Rapahoe Branch (formerly Rewanui Branch) 212.0 4:30 Greymouth Hokitika Branch (formerly to Ross) km h:mm

KiwiRail passenger trains in the South Island, ━ TranzAlpine (interactive map)

The train has become increasingly popular, and carried 204,000 passengers in the financial year ending 2007.[1] By 2016, passenger numbers were approximately 130,000 a year, but rising again after the setback of the Christchurch earthquake, and were exceeding pre-earthquake levels.[2]

History

The train was introduced on 22 November 1987 to replace the conventional Christchurch-Greymouth express trains and became one of the New Zealand Railways Corporation's new tourist-oriented passenger services utilising refurbished rolling stock. Accompanying this new-look train were a new-look livery and rebranding.

Previous services

From late 1982 until 1983, twelve second class NZR 56-foot carriages, three with luggage compartments at one end, were refurbished with new "Supervent" windows, fluorescent strip lights, wall-to-wall carpet, and later still, new seats designed by Addington Workshops were introduced to replace the former articulated diesel-hauled AC class "Grassgrub" carriages. A matching 56-foot van and six 50-foot wooden bogie box wagons for parcels completed the consist. Some of these wagons had served in the same capacity and in the green colour scheme with the Grassgrubs on the Picton and Greymouth routes and one wagon had served the old yellow Northerner as a parcels van, prior to the introduction of the twelve 56-foot carriages. These carriages and wagons, like their Grassgrub predecessors, worked the Picton Express (out and back) and Greymouth or West Coast Expresses (one each way simultaneously). All were painted in a bright red colour scheme.

1987–2012

The TranzAlpine, hauled by DC 4513 and DCP 4628, skirting the Waimakariri River.

With the deterioration of the yellow Northerner stock, carriages to replace these had to be found by sourcing from the rest of the NZR 56-foot carriage fleet. The change in service was marked, with a refurbished modular FM van turned power-luggage van with handbrake end-mounted 11 kW petrol generator, and three carriages, one from the Endeavour Express and later Southerner Express converted into a servery car seating 31 in reupholstered Addington Workshops-produced seats, in bays of four with two pairs of seats each facing into a table, arranged alcove-style, with windows over double the size of the old ones, enabling better views of the alpine scenery, reupholstered seats and carpet, and a buffet counter service, to replace refreshment stops at railway station cafeterias at Springfield and Otira. The original intention had been to replace each pair of windows with one larger window, but the final solution was to cut out the side of the carriages and to insert a steel ladder frame to which sheets of strengthened glass were glued. The effect, of a continuous sheet of glass the length of the carriage, was spectacular and undoubtedly was a major factor in the success of the new service. The other two carriages were red Picton – Greymouth carriages that were refitted and repainted to the same standard but retained their smaller windows and seated 50, same seating arrangement and type as the servery car.

Reducing the service to an "out and back" format as opposed to "one each way" freed up carriages for other services, and by refurbishing existing stock it was hoped that the move would draw people to the previously poorly-performing Greymouth passenger trains. The service proved to be popular, with patronage doubling in the first year, with 7,183 passengers in January 1988 alone.[3]

Soon, two more Picton – Greymouth carriages were refitted similar to the servery and observation car, so the two small-window carriages could be slotted into the Southerner consists. These new "big window" carriages each sat 51, same seating arrangement and type as the servery car. In the early 1990s, the first generation TranzAlpine panorama carriages had a new pressure ventilation system installed, similar to the Bay Express and the observation carriage introduced to this train in 1991.

In 1988, the train won a Tourism New Zealand Award and was voted as one of the top 10 "short" train journeys in the world. This was the result of the work of a freelance consulting designer and writer Paul Teague, who also worked at the Christchurch Press. His consulting was initiated by John Bennett, Canterbury and Westland Branch manager at the time. John Bennett was soon after promoted to Intercity National Manager, perhaps as a result of the work.[4]

The locomotives that were used on the service were either up to two or three DC class locomotives, two DF class locomotives, two DX class locomotives or a mixture of each.

2012 – present

AK class carriages that are used on the TranzAlpine.

On 26 November 2012, the new AK class carriages that were built at Hillside Workshops, were introduced on the service replacing the "big-window" AO carriages. Since mid-2013, fire-suppressed DXC locomotives have been assigned to the service.

Increasing popularity

The TranzAlpine's popularity increased, and on days the Southerner was not operating it was common to see these carriages bolstering the three hard-pressed TranzAlpine carriages. In 1991, a Southerner power-luggage van had the end module away from the handbrake end converted into an open viewing area for passengers to enhance the already spectacular scenery on the route. Realising this increased public attention, and with the success of air-conditioned panorama carriage trains on the North Island Main Trunk, between August 1994 and April 1995, eight carriages (one a former Southerner then InterCity spare buffet car, one a former Endeavour later Southerner servery car, two from the Northerner, two from the Southerner and two from Auckland suburban services) were extensively overhauled and refitted with panorama windows like the earlier TranzAlpine, TranzCoastal (later Coastal Pacific), pressure-ventilated Bay Express and air-conditioned Northerner/Overlander Express trains and seating 50 (day carriages) and 26 (servery carriages), alcove-style, in new seats like those installed in refitted Wairarapa Connection and North Island Main Trunk carriages. An FM class modular van was refitted with a 90kW generator in the central module as opposed to the handbrake end modules on NIMT vans, to facilitate converting one end module into a public open viewing area.

Open viewing platform of TranzAlpine train

In 1995, the viewing van had its second end module converted for public access to match the first end. This was to facilitate its being marshalled into the centre of the new train, which was now re-organised into two four-car trainsets in one, separated by the power/baggage van. To compensate for luggage on the reformed train, the original TranzAlpine van was stripped of its generator and made to carry luggage only.

In 1998, a second van, which was also one of three so fitted as 11 kW power/baggage vans for the original TranzAlpine and Coastal Pacific, was equipped with 90kW generator housed in the central module, for this train.

Interior of a 56-foot carriage

Even after the eight air-conditioned carriages were introduced in 1994–1995, the train still borrowed panorama carriages from the Southerner because of the train's increasing popularity.

Livery

As part of the rebranding of the New Zealand Railways Corporation during the 1980s, a new dark blue livery was applied to the TranzAlpine, with a horizontal full-length 220 mm thick white stripe sandwiching a 100 mm thick red band. The name InterCity was imposed into the stripe as well. This dark blue livery would become standard and remain contemporary until 18 October 1995. In 1990, when New Zealand Rail Limited took over rail operations from the corporation, the InterCity livery was modified to facilitate the new blue and yellow primary colours, and the red band on carriage sides was replaced by a 100 mm yellow one. In 1993–1994 the yellow band was replaced by a green 100 mm band, the white stripe and dark blue livery retained. In 1995, a new full-length 350 mm light blue stripe, incorporating the Tranz Scenic logo was introduced on carriages that were not painted all over in the new blue colour scheme. However, during the 1995 rebranding, the TranzAlpine carriages were the first long-distance passenger carriages to receive the new paint scheme and did not wear the transitional light blue stripe.

Connoisseur service

In early 1991, a former Endeavour car was completely rebuilt as a panorama and rear-view car to replace the (first) Connoisseur carriage, that car refurbished in the standard "big window" InterCity seats and tables carriage format. In a continuous attempt to attract the travelling public back to rail, InterCity expanded on what had begun in 1987, when a Southerner car had been leased to a private tourist firm. The original carriage offered enhanced services, including complimentary meals, refreshments and newspapers. However, this second carriage, also named a Connoisseurs' car, and which also offered improved services over those afforded to other TranzAlpine passengers, was transferred to the North Island Main Trunk passenger services by the end of 1991.

Route

The train runs daily between Christchurch and Greymouth. After leaving Christchurch, the train travels through the fertile Canterbury Plains past the Waimakariri River along the Main South Line, to Rolleston. It then turns onto the Midland Line, which passes through the Southern Alps past the spectacular Waimakariri River gorge, via the Otira Tunnel and terminates in Greymouth, on the West Coast. There are proposals to extend the service from Greymouth to Hokitika.[5]

•
  A view of the Southern Alps from the TranzAlpine.
•
  DFB 7241 and DXC 5270 departing Springfield with the TranzAlpine.
•
  Highest bridge of the TranzAlpine service.
•
  DCPs 4761 and 4801 with the TranzAlpine in Arthurs Pass.
•
  The TranzAlpine Near Lake Sarah.
•
  DCPs 4761 and 4801 with the TranzAlpine in Springfield.
