German submarine U-380

German submarine U-380 was a Type VIIC U-boat built for Nazi Germany's Kriegsmarine for service during World War II. Her wartime career consisted of 11 patrols and resulted in two ships sunk for 14,063 GRT, one ship damaged, and another of 7,178 GRT that was later declared a total loss.

History
Nazi Germany
Name: U-380
Ordered: 16 October 1939
Builder: Howaldtswerke AG, Kiel
Yard number: 11
Laid down: 1 October 1940
Launched: 5 November 1941
Commissioned: 22 December 1941
Fate: Sunk by US bombs, 11 March 1944[1]
General characteristics
Class and type: Type VII submarine
Displacement:
  • 769 tonnes (757 long tons) surfaced
  • 871 t (857 long tons) submerged
  • 1,070 t (1,053 long tons) total
Length:
  • 67.10 m (220 ft 2 in) total
  • 50.50 m (165 ft 8 in) pressure hull
Beam:
  • 6.20 m (20 ft 4 in) total
  • 4.70 m (15 ft 5 in) pressure hull
Draught: 4.74 m (15 ft 7 in)
Propulsion:
  • Diesel-electric
  • 3,200 PS (2,354 kW; 3,156 shp) surfaced
  • 750 PS (552 kW; 740 shp) submerged
Speed:
  • 17.7 knots (32.8 km/h; 20.4 mph) surfaced
  • 7.66 knots (14.19 km/h; 8.81 mph) submerged
Range:
  • 13,700 nmi (25,400 km; 15,800 mi) at 10 knots (19 km/h; 12 mph) surfaced
  • 125 nmi (232 km; 144 mi) at 4 knots (7.4 km/h; 4.6 mph) submerged
Complement: 44-52 men
Armament:

Design

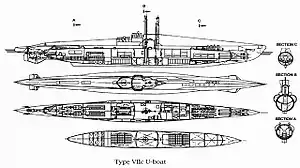

A cross-section of a Type VIIC submarine

German Type VIIC submarines were preceded by the shorter Type VIIB submarines. U-380 had a displacement of 769 tonnes (757 long tons) when at the surface and 871 tonnes (857 long tons) while submerged.[2] She had a total length of 67.10 m (220 ft 2 in), a pressure hull length of 50.50 m (165 ft 8 in), a beam of 6.20 m (20 ft 4 in), a height of 9.60 m (31 ft 6 in), and a draught of 4.74 m (15 ft 7 in). The submarine was powered by two Germaniawerft F46 four-stroke, six-cylinder supercharged diesel engines producing a total of 2,800 to 3,200 metric horsepower (2,060 to 2,350 kW; 2,760 to 3,160 shp) for use while surfaced, two AEG GU 460/8–27 double-acting electric motors producing a total of 750 metric horsepower (550 kW; 740 shp) for use while submerged. She had two shafts and two 1.23 m (4 ft) propellers. The boat was capable of operating at depths of up to 230 metres (750 ft).[2]

The submarine had a maximum surface speed of 17.7 knots (32.8 km/h; 20.4 mph) and a maximum submerged speed of 7.6 knots (14.1 km/h; 8.7 mph).[2] When submerged, the boat could operate for 80 nautical miles (150 km; 92 mi) at 4 knots (7.4 km/h; 4.6 mph); when surfaced, she could travel 8,500 nautical miles (15,700 km; 9,800 mi) at 10 knots (19 km/h; 12 mph). U-380 was fitted with five 53.3 cm (21 in) torpedo tubes (four fitted at the bow and one at the stern), fourteen torpedoes, one 8.8 cm (3.46 in) SK C/35 naval gun, 220 rounds, and a 2 cm (0.79 in) C/30 anti-aircraft gun. The boat had a complement of between forty-four and sixty.[2]

Service history

U-380 was ordered by the Kriegsmarine on 16 October 1939. She was laid down just short of a year later at the Howaldtswerke yard in Kiel, on 1 October 1940. About thirteen months later, U-380 was launched in Kiel on 5 November 1941. She was formally commissioned into the Kriegsmarine later that year, on 22 December.

First patrol

U-380 experienced her first taste of war on her first patrol. While stalking convoy ON-127 on 12 September 1942 in the central Atlantic, the submarine was detected and attacked by the convoy's escorts resulting in the failure of one of her diesel engines. The damage was not severe enough to warrant aborting the patrol, but the U-boat broke off her attack. Her first strike against allied shipping would come less than a week later when she torpedoed and sank the unescorted Norwegian motor merchant Olaf Fostenes (2,994 GRT). All 36 men aboard the merchant survived this attack. The U-boat crew questioned the crew, asking for the ship's master; the mariners lied to the Germans, telling them the master had been killed in the attack. U-380 returned to port on 7 October 1942.

Her next patrol, which lasted only 15 days, was still successful. On 11 November 1942, U-380 torpedoed and sank the 11,069 GRT Dutch passenger liner Nieuw Zeeland. The ship had recently participated in the North African landings of Operation Torch and was returning from that operation. 15 of the 256 souls aboard perished; the remainder were picked up by convoy escorts and later landed at Gibraltar.

Two uneventful patrols followed. It was not until 15 March 1943, while on her fifth patrol, that the U-boat had her next success. The British Liberty Ship Ocean Seaman, traveling with convoy ET-14, was torpedoed and badly damaged. Dead in the water, the stricken vessel was taken in tow and beached the next day near Algiers. She was declared a total loss.

On 10 May 1943, U-380 rescued five German soldiers who were escaping from Tunisia in a small boat. She landed them at La Spezia on 16 May.

A further two uneventful Mediterranean sorties followed. The veteran submarine departed on her eighth patrol on 11 August 1943, again prowling the Mediterranean for enemy shipping. Success arrived on 23 August when the 7,191 GRT American Liberty Ship Pierre Soulé was struck in the rudder by a single torpedo from U-380. The resulting explosion bodily lifted the ship out of the water. Although her rudder was destroyed and the engines and propeller shaft badly damaged, the stricken merchantman was taken in tow by the USS Nauset to Bizerte. She was repaired in dry dock at Taranto and returned to service.

Despite undertaking three further patrols, U-380 had no further successes during her career.

Loss

On 11 March 1944, while in the harbor at Toulon, U-380 along with U-410 were sunk by US bombs during an air raid. One man of the crew, Maschinenmaat Jonny Christoph, was killed aboard U-380.[1]

Commanding officers
  • Josef Röther, 22 December 1941 – 19 November 1943
  • Albrecht Brandi, 20 November 1943 – 11 March 1944

Wolfpacks

U-380 took part in four wolfpacks, namely.

  • Stier (29 August – 2 September 1942)
  • Vorwärts (2–25 September 1942)
  • Delphin (5–12 November 1942)
  • Wal (12–15 November 1942)

Summary of raiding history
Date Ship Name Nationality Tonnage (GRT) Fate[3][4]
18 September 1942 Olaf Fostenes  Norway 2,994 Sunk
11 November 1942 Nieuw Zeeland  Netherlands 11,069 Sunk
15 March 1943 Ocean Seaman  United Kingdom 7,178 Total loss
23 August 1943 Pierre Soulé  United States 7,191 Damaged

References
  1. Kemp 1999, p. 176.
  2. Gröner 1991, pp. 43-46.
  3. Helgason, Guðmundur. "Ships hit by U-380". German U-boats of WWII - uboat.net. Retrieved 26 December 2014.
  4. Busch & Röll 2001, pp. 183–184.

Bibliography
  • Busch, Rainer; Röll, Hans-Joachim (2001). Deutsche U-Boot-Erfolge von September 1939 bis Mai 1945 [German U-boat successes from September 1939 to May 1945]. Der U-Boot-Krieg, 1939-1945 (in German). III. Hamburg: Mittler & Sohn. ISBN 3813205134.
  • Busch, Rainer; Röll, Hans-Joachim (1999). German U-boat commanders of World War II : a biographical dictionary. Translated by Brooks, Geoffrey. London, Annapolis, Md: Greenhill Books, Naval Institute Press. ISBN 1-55750-186-6.
  • Busch, Rainer; Röll, Hans-Joachim (1999). Deutsche U-Boot-Verluste von September 1939 bis Mai 1945 [German U-boat losses from September 1939 to May 1945]. Der U-Boot-Krieg (in German). IV. Hamburg, Berlin, Bonn: Mittler. ISBN 3-8132-0514-2.
  • Edwards, Bernard (1996). Dönitz and the Wolf Packs - The U-boats at War. Cassell Military Classics. pp. 105, 108. ISBN 0-304-35203-9.
  • Gröner, Erich; Jung, Dieter; Maass, Martin (1991). U-boats and Mine Warfare Vessels. German Warships 1815–1945. 2. Translated by Thomas, Keith; Magowan, Rachel. London: Conway Maritime Press. ISBN 0-85177-593-4.
  • Kemp, Paul (1999). U-Boats Destroyed - German Submarine Losses in the World Wars. London: Arms & Armour. ISBN 1-85409-515-3.
  • Röll, Hans-Joachim; Besler, Michael (2014) [2011]. U 380 "Das Kleeblattboot" [U 380 "The Cloverleaf Boat"] (in German) (2nd ed.). Würzburg, Germany: Flechsig. ISBN 978-3-8035-0020-5.
