Tick-borne encephalitis virus

Tick-borne encephalitis virus (TBEV) is a virus associated with tick-borne encephalitis.

Tick-borne encephalitis virus
TBEV at different pH levels
Virus classification
(unranked): Virus
Realm: Riboviria
Kingdom: Orthornavirae
Phylum: Kitrinoviricota
Class: Flasuviricetes
Order: Amarillovirales
Family: Flaviviridae
Genus: Flavivirus
Species:
Tick-borne encephalitis virus

Classification

Taxonomy

TBEV is a member of the genus Flavivirus. Other close relatives, members of the TBEV serocomplex, include Omsk hemorrhagic fever virus, Kyasanur Forest disease virus, Alkhurma virus, Louping ill virus and Langat virus.[1]

Subtypes

TBEV has three subtypes:

  • Western European subtype (formerly Central European encephalitis virus, CEEV; principal tick vector: Ixodes ricinus);
  • Siberian subtype (formerly West Siberian virus; principal tick vector: Ixodes persulcatus);
  • Far Eastern subtype (formerly Russian Spring Summer encephalitis virus, RSSEV; principal tick vector: Ixodes persulcatus).[2]

The reference strain is the Sofjin strain.[3]

Virology

Structure

TBEV is a positive-sense single stranded RNA virus, contained in a 40-60 nm spherical, enveloped capsid.[4]

Genome

The TBEV genome is approximately 11kb in size, which contains a 5' cap, a single open reading frame with 3' and 5' UTRs, and is without polyadenylation.[4] Like other flaviviruses,[5] the TBEV genome codes for ten viral proteins, three structural, and seven nonstructural (NS). The structural proteins are C (capsid), PrM (premembrane, which is cleaved to produce the final membrane protein, M), and E (envelope). The seven nonstructural proteins are: NS1, NS2A, NS2B, NS3, NS4A, NS4B, and NS5. The role of some nonstructural proteins is known, NS5 serves as RNA-dependent polymerase, NS3 has protease (in complex with NS2B) and helicase activity.[6][4] Structural and nonstructural proteins are not required for the genome to be infectious.[4] All viral proteins are expressed as a single large polyprotein, with the order C, PrM, E, NS1, NS2A, NS2B, NS3, NS4A, NS4B, NS5.[6]

Transmission

Infection of the vector begins when a tick takes a blood meal from an infected host. This can occur at any part of the tick's life cycle but a "horizontal" transmission between infected nymphs and uninfected larvae co-feeding on the same host is thought to be key in maintaining the circulation of TBEV.[7][4] TBEV in the blood of the host infects the tick through the midgut, from where it can pass to the salivary glands to be passed to the next host. In non-adult ticks, TBEV is transmitted transtadially by infecting cells that are not destroyed during molting, thus the tick remains infectious throughout its life.[7] Infected adult ticks may be able to lay eggs that are infected, transmitting the virus transorvarially.[8]

Replication
Replication cycle of tick-borne flaviviruses.

In humans, the infection begins in the skin (with the exception of foodborne cases, about 1% of infections) at the site of the bite of an infected tick, where Langerhans cells and macrophages in the skin are preferentially targeted.[6] TBEV envelope (E) proteins recognize heparan sulfate (and likely other receptors) on the host cell surface and are endocytosed via the clathrin mediated pathway. Acidification of the late endosome triggers a conformational change in the E proteins, resulting in fusion, followed by uncoating, and release of the single-stranded RNA genome into the cytoplasm.[9][4] The viral polyprotein is translated and inserts into the ER membrane, where it is processed on the cytosolic side by host peptidases and in the lumen by viral enzyme action. The viral proteins C, NS3, and NS5 are cleaved into the cytosol (though NS3 can complex with NS2B or NS4A to perform proteolytic or helicase activity), while the remaining nonstructural proteins alter the structure of the ER membrane. This altered membrane permits the assembly of replication complexes, where the viral genome is replicated by the viral RNA-dependent polymerase, NS5.[9][6] Newly replicated viral RNA genomes are then packaged by the C proteins while on the cytosolic side of the ER membrane, forming the immature nucleocapsid, and gain E and PrM proteins, arranged as a heterodimer, during budding into the lumen of the ER. The immature virion is spiky and geometric in comparison to the mature particle. The particle passes through the golgi apparatus and trans-golgi network, under increasingly acidic conditions, by which the virion matures with cleavage of the Pr segment from the M protein and formation fusion competent E protein homodimers. Though the cleaved Pr segment remains associated with protein complex until exit.[4][9] The virus is released from the host cell upon fusion of the transport vesicle with the host cell membrane, the cleaved Pr now segments dissociate, resulting in a fully mature, infectious virus.[4][9] However, partially mature and immature viruses are sometimes released as well; immature viruses are noninfectious as the E proteins are not fusion competent, partially mature viruses are still capable of infection.[9]

Pathogenesis and immune response

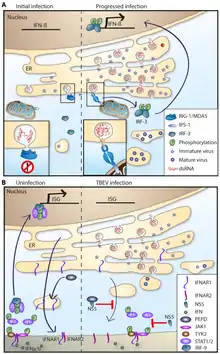

IFN evasion strategies of Tick-borne encephalitis virus (TBEV).

With the exception of food-borne cases, infection begins in the skin at the site of the tick bite. Skin dendritic (or Langerhans) cells (DCs) are preferentially targeted.[6] Initially, the virus replicates locally and immune response is triggered when viral components are recognized by cytosolic pattern recognition receptors (PRRs), such as Toll-like receptors (TLRs).[10] Recognition causes the release of cytokines including interferons (IFN) α, β , and γ and chemokines, attracting migratory immune cells to the site of the bite.[6] The infection may be halted at this stage and cleared, before the onset of noticeable symptoms. Notably, tick saliva enhances infection by modulating host immune response, dampening apoptotic signals.[10] If the infection continues, migratory DCs and macrophages become infected and travel to the local draining lymph node where activation of polymorphonuclear leukocytes, monocytes and the complement system are activated.[10]

The draining lymph node can also serve as a viral amplification site, from where TBEV gains systemic access. This viremic stage corresponds to the first symptomatic phase in the prototypical biphasic pattern of tick-borne encephalitis.[4] TBEV has a strong preference for neuronal tissue, and is neuroinvasive.[11] The initial viremic stage allows access to a number of the preferential tissues. However, the exact mechanism by which TBEV crosses into the central nervous system (CNS) is unclear.[11][10][8][4] There are several proposed mechanism for TBEV breaching the blood-brain barrier (BBB): 1)The "Trojan Horse" mechanism, whereby TBEV gains access to the CNS while infecting an immune cell that passes through the BBB;[10][6][11] 2) Disruption and increased permeability of the BBB by immune immune cytokines;[11] 3) Via infection of the olfactory neurons;[6] 4) Via retrograde transport along peripheral nerves to the CNS;[6] 5) Infection of the cells that make up part of the BBB.[6][10]

CNS infection brings on the second phase in the classic biphasic infection pattern associated with the European subtype. CNS disease is immunopathological; release of inflammatory cytokines coupled with the action of cytotoxic CD8+ T cells and possibly NK cells results in inflammation and apoptosis of infected cells that is responsible for many of the CNS symptoms.[10][11]

Humoral response

TBEV specific IgM and IgG antibodies are produced in response to infection.[4] IgM antibodies appear and peak first, as well as reaching higher levels, and typically dissipates in about 1.5 months post infection, though there exists considerable variation from patient to patient. IgG levels peak at about 6 weeks after the appearance of CNS symptoms, then decline slightly but do not dissipate, likely conferring life long immunity to the patient.[4][6]

Evolution

The ancestor of the extant strains appears to have separated into several clades approximately 2750 years ago.[12] The Siberian and Far Eastern subtypes diverged about 2250 years ago.

A second analysis suggests an earlier date of evolution (3300 years ago) with a rapid increase in the number of strains starting ~300 years ago.[13]

This virus has been transmitted at least three times into Japan between 260–430 years ago.[14][15]

The strains circulating in Latvia appear to have originated from both Russia and Western Europe[16] while those in Estonia appear to have originated in Russia.[17] The Lithuanian strains appear to be related to those from Western Europe.[18]

Phylogenetic analysis indicates that the European and Siberian TBEV sub-types are closely related while the Far-eastern sub-type is closer to the Louping Ill Virus.[1] However, in antigenic relatedness, based on the E, NS3, and NS5 proteins, all three sub-types are highly similar, and Louping Ill virus is the closest relative outside the collective TBEV group.[19]

History

Though the first description of what may have been TBE appears in records in the 1700s in Scandinavia,[11] identification of the TBEV virus occurred in the Soviet Union in the 1930s.[20] The investigation began due to an outbreak of what was believed to be Japanese Encephalitis ("Summer encephalitis"), among Soviet troops stationed along the border with the Japanese empire (present day People's Republic of China), near the Far Eastern city of Khabarovsk. The expedition was lead by virologist Lev A. Zilber, who assembled a team of twenty young scientists in a number of related fields such as acarology, microbiology, neurology, and epidemiology.[21][20] The expedition arrived in Khabarovsk on May 15, 1937, and divided into squads, Northern- led by Elizabeth N. Levkovich and working in the Khabarovski Krai- and Southern- led by Alexandra D. Sheboldaeva, working in the Primorski Krai.[20]

Inside the month of May, the expedition had identified ticks as the likely vector, collected I. persucatus ticks by exposure of bare skin by entomologist Alexander V. Gutsevich, and virologist Mikhail P. Chumakov had isolated the virus from ticks feeding on intentionally infected mice. During the summer, five expeditions members became infected with TBEV, and while there were no fatalities, three of the five suffered damaging sequelae.[20]

The expedition returned in mid August and in October of 1937 Zilber and Sheboldova were arrested, falsely accused of spreading Japanese encephalitis. Expedition epidemiologist Tamara M. Safonov, was arrested the following January for protesting the charges against Zilber and Sheboldova. As a consequence of the arrests, the one of the important initial works was published under the authorship of expedition acarologist, Vasily S. Mironov. Zilber was released in 1939 and managed to restore, along with Sheboldova, co-authorship on this initial work; however, Safanov and Sheboldova (who was not released) spent 18 years in labor camps.[20][21]
