The McDonnell Douglas F-4 Phantom II[N 1] is a tandem two-seat, twin-engine, all-weather, long-range supersonic jet interceptor and fighter-bomber originally developed for the United States Navy by McDonnell Aircraft.[2] It first entered service in 1961 with the Navy.[3] Proving highly adaptable, it was also adopted by the United States Marine Corps and the United States Air Force, and by the mid-1960s had become a major part of their air arms.[4]

"F-4" redirects here. For other uses, see F4.

F-4 Phantom II
A U.S. Air Force F-4 flies with the 82nd Aerial Targets Squadron over White Sands Missile Range
Role Interceptor, fighter-bomber
National origin United States
Manufacturer McDonnell Aircraft Corporation
McDonnell Douglas
First flight 27 May 1958
Introduction 1961
Retired 1992 (United Kingdom)
1996 (U.S. combat use)
2013 (Germany)
2016 (U.S. target drone)[1]
2020 (Japan combat use)
Status In limited service
Primary users United States Air Force (historical)
United States Navy (historical)
United States Marine Corps (historical)
Iranian Air Force
Produced 1958–1981
Number built 5,195
Variants McDonnell Douglas Phantom FG.1/FGR.2

The Phantom is a large fighter with a top speed of over Mach 2.2. It can carry more than 18,000 pounds (8,400 kg) of weapons on nine external hardpoints, including air-to-air missiles, air-to-ground missiles, and various bombs. The F-4, like other interceptors of its time, was initially designed without an internal cannon. Later models incorporated an M61 Vulcan rotary cannon. Beginning in 1959, it set 15 world records for in-flight performance,[5] including an absolute speed record and an absolute altitude record.[6]

The F-4 was used extensively during the Vietnam War. It served as the principal air superiority fighter for the U.S. Air Force, Navy, and Marine Corps and became important in the ground-attack and aerial reconnaissance roles late in the war. During the Vietnam War, one U.S. Air Force pilot, two weapon systems officers (WSOs),[7] one U.S. Navy pilot and one radar intercept officer (RIO) became aces by achieving five aerial kills against enemy fighter aircraft.[8] The F-4 continued to form a major part of U.S. military air power throughout the 1970s and 1980s, being gradually replaced by more modern aircraft such as the F-15 Eagle and F-16 Fighting Falcon in the U.S. Air Force, the F-14 Tomcat in the U.S. Navy, and the F/A-18 Hornet in the U.S. Navy and U.S. Marine Corps.

The F-4 Phantom II remained in use by the U.S. in the reconnaissance and Wild Weasel (Suppression of Enemy Air Defenses) roles in the 1991 Gulf War, finally leaving service in 1996.[9][10] It was also the only aircraft used by both U.S. flight demonstration teams: the United States Air Force Thunderbirds (F-4E) and the United States Navy Blue Angels (F-4J).[4][11][12] The F-4 was also operated by the armed forces of 11 other nations. Israeli Phantoms saw extensive combat in several Arab–Israeli conflicts, while Iran used its large fleet of Phantoms, acquired before the fall of the Shah, in the Iran–Iraq War. Phantom production ran from 1958 to 1981, with a total of 5,195 built, making it the most produced American supersonic military aircraft.[4][13] As of 2020, 62 years after its first flight, the F-4 remains in service with Iran, Japan, South Korea, Greece, and Turkey. The aircraft has most recently been in service against the Islamic State group in the Middle East.

Development

Origins

In 1952, McDonnell's Chief of Aerodynamics, Dave Lewis, was appointed by CEO Jim McDonnell to be the company's preliminary design manager.[14] With no new aircraft competitions on the horizon, internal studies concluded the Navy had the greatest need for a new and different aircraft type: an attack fighter.[15]

The McDonnell F3H-G/H mockup, 1954

In 1953, McDonnell Aircraft began work on revising its F3H Demon naval fighter, seeking expanded capabilities and better performance. The company developed several projects, including a variant powered by a Wright J67 engine,[16] and variants powered by two Wright J65 engines, or two General Electric J79 engines.[17] The J79-powered version promised a top speed of Mach 1.97. On 19 September 1953, McDonnell approached the United States Navy with a proposal for the "Super Demon". Uniquely, the aircraft was to be modular, as it could be fitted with one- or two-seat noses for different missions, with different nose cones to accommodate radar, photo cameras, four 20 mm (.79 in) cannon, or 56 FFAR unguided rockets in addition to the nine hardpoints under the wings and the fuselage. The Navy was sufficiently interested to order a full-scale mock-up of the F3H-G/H, but felt that the upcoming Grumman XF9F-9 and Vought XF8U-1 already satisfied the need for a supersonic fighter.[18]

The McDonnell design was therefore reworked into an all-weather fighter-bomber with 11 external hardpoints for weapons and on 18 October 1954, the company received a letter of intent for two YAH-1 prototypes. Then on 26 May 1955, four Navy officers arrived at the McDonnell offices and, within an hour, presented the company with an entirely new set of requirements. Because the Navy already had the Douglas A-4 Skyhawk for ground attack and F-8 Crusader for dogfighting, the project now had to fulfill the need for an all-weather fleet defense interceptor. A second crewman was added to operate the powerful radar;[2] designers believed that air combat in the next war would overload solo pilots with information.[19]

XF4H-1 prototype
Key figures in the F-4 development: David Lewis, Robert Little, and Herman Barkey

The XF4H-1 was designed to carry four semi-recessed AAM-N-6 Sparrow III radar-guided missiles, and to be powered by two J79-GE-8 engines. As in the McDonnell F-101 Voodoo, the engines sat low in the fuselage to maximize internal fuel capacity and ingested air through fixed geometry intakes. The thin-section wing had a leading edge sweep of 45° and was equipped with blown flaps for better low-speed handling.[20]

Wind tunnel testing had revealed lateral instability, requiring the addition of 5° dihedral to the wings.[21] To avoid redesigning the titanium central section of the aircraft, McDonnell engineers angled up only the outer portions of the wings by 12°, which averaged to the required 5° over the entire wingspan. The wings also received the distinctive "dogtooth" for improved control at high angles of attack. The all-moving tailplane was given 23° of anhedral to improve control at high angles of attack, while still keeping the tailplane clear of the engine exhaust.[20] In addition, air intakes were equipped with variable geometry ramps to regulate airflow to the engines at supersonic speeds. All-weather intercept capability was achieved thanks to the AN/APQ-50 radar. To accommodate carrier operations, the landing gear was designed to withstand landings with a sink rate of 23 ft/s (7 m/s), while the nose strut could extend by some 20 in (51 cm) to increase angle of attack at takeoff.[21]

An F4H-1F aboard Independence, April 1960

On 25 July 1955, the Navy ordered two XF4H-1 test aircraft and five YF4H-1 pre-production examples. The Phantom made its maiden flight on 27 May 1958 with Robert C. Little at the controls. A hydraulic problem precluded retraction of the landing gear, but subsequent flights went more smoothly. Early testing resulted in redesign of the air intakes, including the distinctive addition of 12,500 holes to "bleed off" the slow-moving boundary layer air from the surface of each intake ramp. Series production aircraft also featured splitter plates to divert the boundary layer away from the engine intakes. The aircraft soon squared off against the XF8U-3 Crusader III. Due to operator workload, the Navy wanted a two-seat aircraft and on 17 December 1958 the F4H was declared a winner. Delays with the J79-GE-8 engines meant that the first production aircraft were fitted with J79-GE-2 and −2A engines, each having 16,100 lbf (71.8 kN) of afterburning thrust. In 1959, the Phantom began carrier suitability trials with the first complete launch-recovery cycle performed on 15 February 1960 from Independence.[21]

There were proposals to name the F4H "Satan" and "Mithras".[21] In the end, the aircraft was given the less controversial name "Phantom II", the first "Phantom" being another McDonnell jet fighter, the FH-1 Phantom. The Phantom II was briefly given the designation F-110A and named "Spectre" by the USAF, but neither name was officially used.[22]

Production
VF-74 was the first operational U.S. Navy Phantom squadron in 1961

Early in production, the radar was upgraded to the Westinghouse AN/APQ-72, an AN/APG-50 with a larger radar antenna, necessitating the bulbous nose, and the canopy was reworked to improve visibility and make the rear cockpit less claustrophobic.[23] During its career the Phantom underwent many changes in the form of numerous variants developed.

The USN operated the F4H-1 (re-designated F-4A in 1962) with J79-GE-2 and -2A engines of 16,100 lbf (71.62 kN) thrust and later builds receiving -8 engines. A total of 45 F-4As were built; none saw combat, and most ended up as test or training aircraft.[24] The USN and USMC received the first definitive Phantom, the F-4B which was equipped with the Westinghouse APQ-72 radar (pulse only), a Texas Instruments AAA-4 Infrared search and track pod under the nose, an AN/AJB-3 bombing system and powered by J79-GE-8,-8A and -8B engines of 10,900 lbf (48.5 kN) dry and 16,950 lbf (75.4 kN) afterburner (reheat) with the first flight on 25 March 1961. 649 F-4Bs were built with deliveries beginning in 1961 and VF-121 Pacemakers receiving the first examples at NAS Miramar.[24]

The USAF received Phantoms as the result of Defense Secretary Robert McNamara's push to create a unified fighter for all branches of the US military. After an F-4B won the "Operation Highspeed" fly-off against the Convair F-106 Delta Dart, the USAF borrowed two Naval F-4Bs, temporarily designating them F-110A "Spectre" in January 1962, and developed requirements for their own version. Unlike the US Navy's focus on air-to-air interception in the Fleet Air Defense (FAD) mission, the USAF emphasized both an air-to-air and an air-to-ground fighter-bomber role. With McNamara's unification of designations on 18 September 1962, the Phantom became the F-4 with the naval version designated F-4B and USAF F-4C. The first Air Force Phantom flew on 27 May 1963, exceeding Mach 2 on its maiden flight.[25]

The F-4J improved both air-to-air and ground-attack capability; deliveries begun in 1966 and ended in 1972 with 522 built.[26] It was equipped with J79-GE-10 engines with 17,844 lbf (79.374 kN) thrust, the Westinghouse AN/AWG-10 Fire Control System (making the F-4J the first fighter in the world with operational look-down/shoot-down capability),[27] a new integrated missile control system and the AN/AJB-7 bombing system for expanded ground attack capability.[28]

The F-4N (updated F-4Bs) with smokeless engines and F-4J aerodynamic improvements started in 1972 under a U.S. Navy-initiated refurbishment program called "Project Bee Line"[29] with 228 converted by 1978. The F-4S model resulted from the refurbishment of 265 F-4Js with J79-GE-17 smokeless engines of 17,900 lbf (79.379 kN), AWG-10B radar with digitized circuitry for improved performance and reliability, Honeywell AN/AVG-8 Visual Target Acquisition Set or VTAS (world's first operational Helmet Sighting System), classified avionics improvements, airframe reinforcement and leading edge slats for enhanced maneuvering.[30] The USMC also operated the RF-4B with reconnaissance cameras with 46 built;[31] pilots flew the RF-4B alone and unarmed, straight and level on predictable flight paths at 5,000 feet while taking photographs, hoping that steady velocity would keep them alive.[19]

Phantom II production ended in the United States in 1979 after 5,195 had been built (5,057 by McDonnell Douglas and 138 in Japan by Mitsubishi). Of these, 2,874 went to the USAF, 1,264 to the Navy and Marine Corps, and the rest to foreign customers.[4] The last U.S.-built F-4 went to South Korea, while the last F-4 built was an F-4EJ built by Mitsubishi Heavy Industries in Japan and delivered on 20 May 1981.[32] As of 2008, 631 Phantoms were in service worldwide,[33] while the Phantoms were in use as a target drone (specifically QF-4Cs) operated by the U.S. military until 21 December 2016, when the Air Force officially ended use of the type.[34]

World records
Transcontinental "Operation LANA" in 1961

To show off their new fighter, the Navy led a series of record-breaking flights early in Phantom development:[4] All in all, the Phantom set 16 world records. Except for Skyburner, all records were achieved in unmodified production aircraft. Five of the speed records remained unbeaten until the F-15 Eagle appeared in 1975.[5]

  • Operation Top Flight: On 6 December 1959, the second XF4H-1 performed a zoom climb to a world record 98,557 ft (30,040 m).[6][35] Commander Lawrence E. Flint Jr., USN accelerated his aircraft to Mach 2.5 (2,660 km/h; 1,650 mph) at 47,000 ft (14,330 m) and climbed to 90,000 ft (27,430 m) at a 45° angle. He then shut down the engines and glided to the peak altitude. As the aircraft fell through 70,000 ft (21,300 m), Flint restarted the engines and resumed normal flight.[36]
  • On 5 September 1960, an F4H-1 averaged 1,216.78 mph (1,958.16 km/h) over a 500 km (311 mi) closed-circuit course.[6]
  • On 25 September 1960, an F4H-1F averaged 1,390.24 mph (2,237.37 km/h) over a 100 km (62.1 mi) closed-circuit course.[6] FAIRecord File Number 8898.
  • Operation LANA: To celebrate the 50th anniversary of Naval aviation (L is the Roman numeral for 50 and ANA stood for Anniversary of Naval Aviation) on 24 May 1961, Phantoms flew across the continental United States in under three hours and included several tanker refuelings. The fastest of the aircraft averaged 869.74 mph (1,400.28 km/h) and completed the trip in 2 hours 47 minutes, earning the pilot (and future NASA Astronaut), Lieutenant Richard Gordon, USN and RIO, Lieutenant Bobbie Young, USN, the 1961 Bendix trophy.[6][37][38][39]
  • Operation Sageburner: On 28 August 1961, a F4H-1F Phantom II averaged 1,452.777 kilometers per hour (902.714 miles per hour) over a 3 mi (4.82 km) course flying below 125 feet (38.1 m) at all times.[6] Commander J.L. Felsman, USN was killed during the first attempt at this record on 18 May 1961 when his aircraft disintegrated in the air after pitch damper failure.[40]
  • Operation Skyburner: On 22 November 1961, a modified Phantom with water injection, piloted by Lt. Col. Robert B. Robinson, set an absolute world record average speed over a 20-mile (32.2 km) long 2-way straight course of 1,606.342 mph (2,585.086 km/h).[6][41][42]
  • On 5 December 1961, another Phantom set a sustained altitude record of 66,443.8 feet (20,252 m).[6]
  • Operation High Jump: A series of time-to-altitude records was set in early 1962: 34.523 seconds to 3,000 m (9,840 ft), 48.787 seconds to 6,000 m (19,700 ft), 61.629 seconds to 9,000 m (29,500 ft), 77.156 seconds to 12,000 m (39,400 ft), 114.548 seconds to 15,000 m (49,200 ft), 178.5 s to 20,000 m (65,600 ft), 230.44 s to 25,000 m (82,000 ft), and 371.43 s to 30,000 m (98,400 ft).[43]

Design

Overview
Cockpit of F-4 Phantom II

The F-4 Phantom is a tandem-seat fighter-bomber designed as a carrier-based interceptor to fill the U.S. Navy's fleet defense fighter role. Innovations in the F-4 included an advanced pulse-Doppler radar and extensive use of titanium in its airframe.[44]

Despite imposing dimensions and a maximum takeoff weight of over 60,000 lb (27,000 kg),[45] the F-4 has a top speed of Mach 2.23 and an initial climb rate of over 41,000 ft/min (210 m/s).[46] The F-4's nine external hardpoints have a capability of up to 18,650 pounds (8,480 kg) of weapons, including air-to-air and air-to-surface missiles, and unguided, guided, and thermonuclear weapons.[47] Like other interceptors of its day, the F-4 was designed without an internal cannon.[48]

The baseline performance of a Mach 2-class fighter with long-range and a bomber-sized payload would be the template for the next generation of large and light/middle-weight fighters optimized for daylight air combat.[49]

Flight characteristics

"Speed is life" was F-4 pilots' slogan. The Phantom's greatest advantage in air combat was acceleration[19] and thrust, which permitted a skilled pilot to engage and disengage from the fight at will. MiGs usually could outturn the F-4 because of the high drag on its airframe;[50] as a massive fighter aircraft designed to fire radar-guided missiles from beyond visual range, the F-4 lacked the agility of its Soviet opponents and was subject to adverse yaw during hard maneuvering. Although thus subject to irrecoverable spins during aileron rolls, pilots reported the aircraft to be very responsive and easy to fly on the edge of its performance envelope. In 1972, the F-4E model was upgraded with leading edge slats on the wing, greatly improving high angle of attack maneuverability at the expense of top speed.[51]

The J79 reacted instantly to controls, unlike earlier engines. While landing on USS Midway (CV-41) John Cheshire's tailhook missed the arresting gear after fully idling the engines. By using full throttle the J79s went to afterburner, turning his bolter into a touch-and-go landing.[19] The J79 produced noticeable amounts of black smoke (at mid-throttle/cruise settings), a severe disadvantage in that it made it easier for the enemy to spot the aircraft.[52] Two decades after the aircraft entered service[19] this was solved on the F-4S, which was fitted with the −10A engine variant with a smokeless combustor.[53]

The lack of an internal gun "was the biggest mistake on the F-4", Cheshire said; "Bullets are cheap and tend to go where you aim them. I needed a gun, and I really wished I had one". Marine Corps general John R. Dailey recalled that "everyone in RF-4s wished they had a gun on the aircraft".[19] For a brief period, doctrine held that turning combat would be impossible at supersonic speeds and little effort was made to teach pilots air combat maneuvering. In reality, engagements quickly became subsonic, as pilots would slow down in an effort to get behind their adversaries. Furthermore, the relatively new heat-seeking and radar-guided missiles at the time were frequently reported as unreliable and pilots had to fire multiple missiles (also known as ripple-firing), just to hit one enemy fighter. To compound the problem, rules of engagement in Vietnam precluded long-range missile attacks in most instances, as visual identification was normally required. Many pilots found themselves on the tail of an enemy aircraft, but too close to fire short-range Falcons or Sidewinders. Although by 1965 USAF F-4Cs began carrying SUU-16 external gunpods containing a 20 mm (.79 in) M61A1 Vulcan Gatling cannon, USAF cockpits were not equipped with lead-computing gunsights until the introduction of the SUU-23, virtually assuring a miss in a maneuvering fight. Some Marine Corps aircraft carried two pods for strafing. In addition to the loss of performance due to drag, combat showed the externally mounted cannon to be inaccurate unless frequently boresighted, yet far more cost-effective than missiles. The lack of a cannon was finally addressed by adding an internally mounted 20 mm (.79 in) M61A1 Vulcan on the F-4E.[51]

Costs
F-4CRF-4CF-4DF-4E
Unit R&D cost–61,200 (1965) by 1973
496,515 (Current) by 1973		–22,700 (1965) by 1973
184,165 (Current) by 1973
Airframe1,388,725 (1965)
11,266,710 (Current)		1,679,000 (1965)
13,621,707 (Current)		1,018,682 (1965)
8,264,555 (Current)		1,662,000 (1965)
13,483,787 (Current)
Engines317,647 (1965)
2,577,066 (Current)		276,000 (1965)
2,239,185 (Current)		260,563 (1965)
2,113,945 (Current)		393,000 (1965)
3,188,404 (Current)
Electronics52,287 (1965)
424,204 (Current)		293,000 (1965)
2,377,106 (Current)		262,101 (1965)
2,126,422 (Current)		299,000 (1965)
2,425,784 (Current)
Armament139,706 (1965)
1,133,433 (Current)		73,000 (1965)
592,248 (Current)		133,430 (1965)
1,082,516 (Current)		111,000 (1965)
900,542 (Current)
Ordnance––6,817 (1965)
55,306 (Current)		8,000 (1965)
64,904 (Current)
Flyaway cost1.9 million (1965)
15.4 million (Current)		2.3 million (1965)
18.7 million (Current)		1.7 million (1965)
13.8 million (Current)		2.4 million (1965)
19.5 million (Current)
Modification costs116,289 (1965) by 1973
943,451 (Current) by 1973		55,217 (1965) by 1973
447,975 (2008) by 1973		233,458 (1965) by 1973
1,894,042 (Current) by 1973		7,995 (1965) by 1973
64,863 (Current) by 1973
Cost per flying hour924 (1965)
7,496 (2008)		867 (1965)
7,034 (Current)		896 (1965)
7,269 (Current)		867 (1965)
7,034 (Current)
Maintenance cost per flying hour545 (1965)
4,422 (Current)

Note: Original amounts were in 1965 U.S. dollars.[54] The figures in these tables have been adjusted for inflation to the current year.

Operational history
See also: McDonnell Douglas F-4 Phantom II U.S. operators

United States Air Force
USAF F-4 Summary for Vietnam War action
Aircraft Weapons/Tactics MiG-17 MiG-19 MiG-21 Total
F-4CAIM-7 Sparrow401014
AIM-9 Sidewinder1201022
20 mm gunpod3014
Maneuvering tactics2002
F-4DAIM-4 Falcon4015
AIM-7 Sparrow422026
AIM-9 Sidewinder0235
20 mm gunpod4.5026.5
Maneuvering tactics0022
F-4EAIM-7 Sparrow02810
AIM-9 Sidewinder0044
AIM-9+20 mm gun0011
20 mm gun0145
Maneuvering tactics0101
Total33.5866107.5

In USAF service, the F-4 was initially designated the F-110 Spectre[55] prior to the introduction of the 1962 United States Tri-Service aircraft designation system. The USAF quickly embraced the design and became the largest Phantom user. The first USAF Phantoms in Vietnam were F-4Cs from the 43rd Tactical Fighter Squadron arrived in December 1964.[56]

Unlike the U.S. Navy and U.S. Marine Corps, which flew the Phantom with a Naval Aviator (pilot) in the front seat and a Naval Flight Officer as a radar intercept officer (RIO) in the back seat, the USAF initially flew its Phantoms with a rated Air Force Pilot in front and back seats. Pilots usually did not like flying in the back seat;[19] while the GIB, or "guy in back", could fly and ostensibly land the aircraft, he had fewer flight instruments and a very restricted forward view. The Air Force later assigned a rated Air Force Navigator qualified as a weapon/targeting systems officer (later designated as weapon systems officer or WSO) in the rear seat instead of another pilot.[57][19]

On 10 July 1965, F-4Cs of the 45th Tactical Fighter Squadron, 15th TFW, on temporary assignment in Ubon, Thailand,[58] scored the USAF's first victories against North Vietnamese MiG-17s using AIM-9 Sidewinder air-to-air missiles.[59] On 26 April 1966, an F-4C from the 480th Tactical Fighter Squadron scored the first aerial victory by a U.S. aircrew over a North Vietnamese MiG-21 "Fishbed".[60] On 24 July 1965, another Phantom from the 45th Tactical Fighter Squadron became the first American aircraft to be downed by an enemy SAM, and on 5 October 1966 an 8th Tactical Fighter Wing F-4C became the first U.S. jet lost to an air-to-air missile, fired by a MiG-21.

Early aircraft suffered from leaks in wing fuel tanks that required re-sealing after each flight and 85 aircraft were found to have cracks in outer wing ribs and stringers.[54] There were also problems with aileron control cylinders, electrical connectors, and engine compartment fires. Reconnaissance RF-4Cs made their debut in Vietnam on 30 October 1965, flying the hazardous post-strike reconnaissance missions. The USAF Thunderbirds used the F-4E from the 1969 season until 1974.[11]

435th TFS F-4Ds over Vietnam

Although the F-4C was essentially identical to the Navy/Marine Corps F-4B in-flight performance and carried the AIM-9 Sidewinder missiles, USAF-tailored F-4Ds initially arrived in June 1967 equipped with AIM-4 Falcons. However, the Falcon, like its predecessors, was designed to shoot down heavy bombers flying straight and level. Its reliability proved no better than others and its complex firing sequence and limited seeker-head cooling time made it virtually useless in combat against agile fighters. The F-4Ds reverted to using Sidewinders under the "Rivet Haste" program in early 1968, and by 1972 the AIM-7E-2 "Dogfight Sparrow" had become the preferred missile for USAF pilots. Like other Vietnam War Phantoms, the F-4Ds were urgently fitted with radar warning receivers to detect the Soviet-built S-75 Dvina SAMs.[61]

From the initial deployment of the F-4C to Southeast Asia, USAF Phantoms performed both air superiority and ground attack roles, supporting not only ground troops in South Vietnam, but also conducting bombing sorties in Laos and North Vietnam. As the F-105 force underwent severe attrition between 1965 and 1968, the bombing role of the F-4 proportionately increased until after November 1970 (when the last F-105D was withdrawn from combat) it became the primary USAF tactical ordnance delivery system. In October 1972 the first squadron of EF-4C Wild Weasel aircraft deployed to Thailand on temporary duty.[62] The "E" prefix was later dropped and the aircraft was simply known as the F-4C Wild Weasel.

USAF F-4 Phantom II destroyed on 18 February 1968, during the enemy attack against Tan Son Nhut, during the Tet Offensive

Sixteen squadrons of Phantoms were permanently deployed between 1965 and 1973, and 17 others deployed on temporary combat assignments.[63] Peak numbers of combat F-4s occurred in 1972, when 353 were based in Thailand.[64] A total of 445 Air Force Phantom fighter-bombers were lost, 370 in combat and 193 of those over North Vietnam (33 to MiGs, 30 to SAMs, and 307 to AAA).[64]

The RF-4C was operated by four squadrons,[65] and of the 83 losses, 72 were in combat including 38 over North Vietnam (seven to SAMs and 65 to AAA).[64] By war's end, the U.S. Air Force had lost a total of 528 F-4 and RF-4C Phantoms. When combined with U.S. Navy and Marine Corps losses of 233 Phantoms, 761 F-4/RF-4 Phantoms were lost in the Vietnam War.[66]

On 28 August 1972, Captain Steve Ritchie became the first USAF ace of the war.[7] On 9 September 1972, WSO Capt Charles B. DeBellevue became the highest-scoring American ace of the war with six victories.[7] and WSO Capt Jeffrey Feinstein became the last USAF ace of the war on 13 October 1972.[67] Upon return to the United States, DeBellevue and Feinstein were assigned to undergraduate pilot training (Feinstein was given a vision waiver) and requalified as USAF pilots in the F-4. USAF F-4C/D/E crews claimed 107½ MiG kills in Southeast Asia (50 by Sparrow, 31 by Sidewinder, five by Falcon, 15.5 by gun, and six by other means).[64]

On 31 January 1972, the 170th Tactical Fighter Squadron/183d Tactical Fighter Group of the Illinois Air National Guard became the first Air National Guard unit to transition to Phantoms from Republic F-84F Thunderstreaks which were found to have corrosion problems.[68] Phantoms would eventually equip numerous tactical fighter and tactical reconnaissance units in the USAF active, National Guard, and reserve.

On 2 June 1972, a Phantom flying at supersonic speed shot down a MiG-19 over Thud Ridge in Vietnam with its cannon. At a recorded speed of Mach 1.2, Major Phil Handley's shoot down was the first and only recorded gun kill while flying at supersonic speeds.[69][70]

USAFE F-4G, A-10A and RF-4C, 6 April 1987

On 15 August 1990, 24 F-4G Wild Weasel Vs and six RF-4Cs were deployed to Shaikh Isa AB, Bahrain, for Operation Desert Storm. The F-4G was the only aircraft in the USAF inventory equipped for the Suppression of Enemy Air Defenses (SEAD) role, and was needed to protect coalition aircraft from Iraq's extensive air defense system. The RF-4C was the only aircraft equipped with the ultra-long-range KS-127 LOROP (long-range oblique photography) camera, and was used for a variety of reconnaissance missions. In spite of flying almost daily missions, only one RF-4C was lost in a fatal accident before the start of hostilities. One F-4G was lost when enemy fire damaged the fuel tanks and the aircraft ran out of fuel near a friendly airbase. The last USAF Phantoms, F-4G Wild Weasel Vs from 561st Fighter Squadron, were retired on 26 March 1996. The last operational flight of the F-4G Wild Weasel was from the 190th Fighter Squadron, Idaho Air National Guard, in April 1996.[71] The last operational USAF/ANG F-4 to land was flown by Maj Mike Webb and Maj Gary Leeder of the Idaho ANG.

Like the Navy, the Air Force has operated QF-4 target drones, serving with the 82d Aerial Targets Squadron at Tyndall Air Force Base, Florida, and Holloman Air Force Base, New Mexico.[72] It was expected that the F-4 would remain in the target role with the 82d ATRS until at least 2015, when they would be replaced by early versions of the F-16 Fighting Falcon converted to a QF-16 configuration.[73] Several QF-4s also retain capability as manned aircraft and are maintained in historical color schemes, being displayed as part of Air Combat Command's Heritage Flight at air shows, base open houses, and other events while serving as non-expendable target aircraft during the week.[74] On 19 November 2013, BAE Systems delivered the last QF-4 aerial target to the Air Force. The example had been in storage for over 20 years before being converted. Over 16 years, BAE had converted 314 F-4 and RF-4 Phantom IIs into QF-4s and QRF-4s, with each aircraft taking six months to adapt. As of December 2013, QF-4 and QRF-4 aircraft had flown over 16,000 manned and 600 unmanned training sorties, with 250 unmanned aircraft being shot down in firing exercises. The remaining QF-4s and QRF-4s held their training role until the first of 126 QF-16s were delivered by Boeing.[75] The final flight of an Air Force QF-4 from Tyndall AFB took place on 27 May 2015 to Holloman AFB.[76] After Tyndall AFB ceased operations, the 53d Weapons Evaluation Group at Holloman became the fleet of 22 QF-4s' last remaining operator. The base continued using them to fly manned test and unmanned live fire test support and Foreign Military Sales testing, with the final unmanned flight taking place in August 2016.[77] The type was officially retired from US military service with a four–ship flight at Holloman during an event on 21 December 2016.[78] The remaining QF-4s were to be demilitarized after 1 January 2017.[79]

United States Navy
A U.S. Navy F-4B from VF-111 dropping bombs over Vietnam, 25 November 1971

On 30 December 1960, the VF-121 "Pacemakers" at NAS Miramar became the first Phantom operator with its F4H-1Fs (F-4As). The VF-74 "Be-devilers" at NAS Oceana became the first deployable Phantom squadron when it received its F4H-1s (F-4Bs) on 8 July 1961.[80] The squadron completed carrier qualifications in October 1961 and Phantom's first full carrier deployment between August 1962 and March 1963 aboard Forrestal.[81] The second deployable U.S. Atlantic Fleet squadron to receive F-4Bs was the VF-102 "Diamondbacks", who promptly took their new aircraft on the shakedown cruise of Enterprise.[82] The first deployable U.S. Pacific Fleet squadron to receive the F-4B was the VF-114 "Aardvarks", which participated in the September 1962 cruise aboard USS Kitty Hawk.[80]

By the time of the Tonkin Gulf incident, 13 of 31 deployable navy squadrons were armed with the type. F-4Bs from Constellation made the first Phantom combat sortie of the Vietnam War on 5 August 1964, flying bomber escort in Operation Pierce Arrow.[83] Navy fighter pilots were unused to flying with a non-pilot RIO, but learned from air combat in Vietnam the benefits of the GiB "guy in back" or "voice in the luggage compartment" helping with the workload.[19] The first Phantom air-to-air victory of the war took place on 9 April 1965 when an F-4B from VF-96 "Fighting Falcons" piloted by Lieutenant (junior grade) Terence M. Murphy and his RIO, Ensign Ronald Fegan, shot down a Chinese MiG-17 "Fresco". The Phantom was then shot down, probably by an AIM-7 Sparrow from one of its wingmen.[21] There continues to be controversy over whether the Phantom was shot down by MiG guns or, as enemy reports later indicated, an AIM-7 Sparrow III from one of Murphy's and Fegan's wingmen.[84] On 17 June 1965, an F-4B from VF-21 "Freelancers" piloted by Commander Louis Page and Lieutenant John C. Smith shot down the first North Vietnamese MiG of the war.[85][86]

On 10 May 1972, Lieutenant Randy "Duke" Cunningham and Lieutenant (junior grade) William P. Driscoll flying an F-4J, call sign "Showtime 100", shot down three MiG-17s to become the first American flying aces of the war. Their fifth victory was believed at the time to be over a mysterious North Vietnamese ace, Colonel Nguyen Toon, now considered mythical. On the return flight, the Phantom was damaged by an enemy surface-to-air missile. To avoid being captured, Cunningham and Driscoll flew their burning aircraft using only the rudder and afterburner (the damage to the aircraft rendered conventional control nearly impossible), until they could eject over water.[8]

The Blue Angels flew the F-4J, 1969–74

During the war, U.S. Navy F-4 Phantom squadrons participated in 84 combat tours with F-4Bs, F-4Js, and F-4Ns. The Navy claimed 40 air-to-air victories at a cost of 73 Phantoms lost in combat (seven to enemy aircraft, 13 to SAMs, and 53 to AAA). An additional 54 Phantoms were lost in mishaps.[87]

In 1984, all Navy F-4Ns were retired from Fleet service in deployable USN squadrons and by 1987 the last F-4Ss were retired from deployable USN squadrons. On 25 March 1986, an F-4S belonging to the VF-151 "Vigilantes," became the last active duty U.S. Navy Phantom to launch from an aircraft carrier, in this case, Midway. On 18 October 1986, an F-4S from the VF-202 "Superheats", a Naval Reserve fighter squadron, made the last-ever Phantom carrier landing while operating aboard America. In 1987, the last of the Naval Reserve-operated F-4S aircraft were replaced by F-14As. The last Phantoms in service with the Navy were QF-4N and QF-4S target drones operated by the Naval Air Warfare Center at NAS Point Mugu, California.[21] These airframes were subsequently retired in 2004.[88]

United States Marine Corps
A U.S. Marine F-4B with VMFA-314, flies over South Vietnam in September 1968

The Marine Corps received its first F-4Bs in June 1962, with the "Black Knights" of VMFA-314 at Marine Corps Air Station El Toro, California becoming the first operational squadron. Marine Phantoms from VMFA-531 "Gray Ghosts" were assigned to Da Nang airbase on South Vietnam's northeast coast on 10 May 1965 and were initially assigned to provide air defense for the USMC. They soon began close air support missions (CAS) and VMFA-314 'Black Knights', VMFA-232 'Red Devils, VMFA-323 'Death Rattlers', and VMFA-542 'Bengals' soon arrived at the primitive airfield.[89] Marine F-4 pilots claimed three enemy MiGs (two while on exchange duty with the USAF) at the cost of 75 aircraft lost in combat, mostly to ground fire, and four in accidents.

The VMCJ-1 Golden Hawks (later VMAQ-1 and VMAQ-4 which had the old RM tailcode) flew the first photo recon mission with an RF-4B variant on 3 November 1966 from Da Nang AB, South Vietnam and remained there until 1970 with no RF-4B losses and only one aircraft damaged by anti-aircraft artillery (AAA) fire.[90] VMCJ-2 and VMCJ-3 (now VMAQ-3) provided aircraft for VMCJ-1 in Da Nang and VMFP-3 was formed in 1975 at MCAS El Toro, CA consolidating all USMC RF-4Bs in one unit that became known as "The Eyes of the Corps." VMFP-3 disestablished in August 1990 after the Advanced Tactical Airborne Reconnaissance System was introduced for the F/A-18D Hornet.[24]

The F-4 continued to equip fighter-attack squadrons in both active and reserve Marine Corps units throughout the 1960s, 1970s and 1980s and into the early 1990s. In the early 1980s, these squadrons began to transition to the F/A-18 Hornet, starting with the same squadron that introduced the F-4 to the Marine Corps, VMFA-314 at MCAS El Toro, California. On 18 January 1992, the last Marine Corps Phantom, an F-4S in the Marine Corps Reserve, was retired by the "Cowboys" of VMFA-112 at NAS Dallas, Texas, after which the squadron was re-equipped with F/A-18 Hornets.[91]

Aerial combat in the Vietnam War

The USAF and the US Navy had high expectations of the F-4 Phantom, assuming that the massive firepower, the best available on-board radar, the highest speed and acceleration properties, coupled with new tactics, would provide Phantoms with an advantage over the MiGs. However, in confrontations with the lighter MiG-21, F-4s did not always succeed and began to suffer losses.[92] Over the course of the air war in Vietnam, between 3 April 1965 and 8 January 1973, each side would ultimately claim favorable kill ratios.[93]

During the war, U.S. Navy F-4 Phantoms downed 40 air-to-air victories at a loss of seven Phantoms to enemy aircraft.[87] USMC F-4 pilots claimed three enemy MiGs at the cost of one aircraft in air-combat. USAF F-4 Phantom crews scored 107½ MiG kills (including 33½ MiG-17s, eight MiG-19s and 66 MiG-21s) at a cost of 33 Phantoms in air-combat.[64] F-4 pilots were credited with a total of 150½ MiG kills at a cost of 42 Phantoms in air-combat.

According to the VPAF, 103 F-4 Phantoms were shot down by MiG-21s at a cost of 54 MiG-21s downed by F-4s.[94] During the war, the VPAF lost 131 MiGs in air combat (63 MiG-17s, eight MiG-19s and 60 MiG-21s) of which one half were by F-4s.[95]

From 1966 to November 1968, in 46 air battles conducted over North Vietnam between F-4s and MiG-21s, VPAF claimed 27 F-4s were shot down by MiG-21s at a cost of 20 MiG-21s[96] In 1970, one F-4 Phantom was shot down by MiG-21.[97] The struggle culminated on 10 May 1972, with VPAF aircraft completing 64 sorties, resulting in 15 air battles. The VPAF claimed seven F-4s were shot down, while U.S. confirmed five F-4s were lost.[97] The Phantoms, in turn, managed to destroy two MiG-21s, three MiG-17s, and one MiG-19.[96] On 11 May, two MiG-21s, which played the role of "bait", brought the four F-4s to two MiG-21s circling at low altitude. The MiGs quickly engaged and shot down two F-4s. On 18 May, Vietnamese aircraft made 26 sorties in eight air engagements, which cost 4 F-4 Phantoms; Vietnamese fighters on that day did not suffer losses.[96]

Non-U.S. users
Main article: McDonnell Douglas F-4 Phantom II non-U.S. operators

The Phantom has served with the air forces of many countries, including Australia, Egypt, Germany, United Kingdom, Greece, Iran, Israel, Japan, Spain, South Korea and Turkey.

Australia
Main article: McDonnell Douglas F-4 Phantom II in Australian service

The Royal Australian Air Force (RAAF) leased 24 USAF F-4Es from 1970 to 1973 while waiting for their order for the General Dynamics F-111C to be delivered. They were so well-liked that the RAAF considered retaining the aircraft after the F-111Cs were delivered.[98] They were operated from RAAF Amberley by No. 1 Squadron and No. 6 Squadron.[99]

Egypt
Egyptian Air Force F-4E Phantom IIs of the 222nd Tactical Fighter Brigade in formation with a U.S. Air Force 347th Tactical Fighter Wing F-4E Phantom II during exercise Proud Phantom

In 1979, the Egyptian Air Force purchased 35 former USAF F-4Es along with a number of Sparrow, Sidewinder, and Maverick missiles from the U.S. for $594 million as part of the "Peace Pharaoh" program.[100] An additional seven surplus USAF aircraft were purchased in 1988.[101] Three attrition replacements had been received by the end of the 1990s.[98]

Egyptian F-4Es have been retired and their former base at Cairo West Airport has been reconfigured for operation of F-16C/D Fighting Falcons.[102]

Germany

The German Air Force (Luftwaffe) initially ordered the reconnaissance RF-4E in 1969, receiving a total of 88 aircraft from January 1971.[103] In 1982, the initially unarmed RF-4Es were given a secondary ground attack capability; these aircraft were retired in 1994.[104]

McDonnell RF-4E Phantom II of the Luftwaffe's AKG52 unit in 1977

In 1973, under the "Peace Rhine" program, the Luftwaffe purchased the F-4F (a lightened and simplified version of the F-4E) which was upgraded in the mid-1980s.[105] 24 German F-4F Phantom IIs were operated by the 49th Tactical Fighter Wing of the USAF at Holloman AFB to train Luftwaffe crews until December 2004. In 1975, Germany also received 10 F-4Es for training in the U.S. In the late 1990s, these were withdrawn from service after being replaced by F-4Fs.[106] Germany also initiated the Improved Combat Efficiency (ICE) program in 1983. The 110 ICE-upgraded F-4Fs entered service in 1992,[105] and were expected to remain in service until 2012.[107] All the remaining Luftwaffe Phantoms were based at Wittmund with Jagdgeschwader 71 (fighter wing 71) in Northern Germany[108] and WTD61 at Manching. Phantoms were deployed to NATO states under the Baltic Air Policing starting in 2005, 2008, 2009, 2011 and 2012. The German Air Force retired its last F-4Fs on 29 June 2013. German F-4Fs flew 279,000 hours from entering service on 31 August 1973 until retirement.[109][110]

Greece
Hellenic Air Force RF-4E Phantom II in a special color scheme, lands at RIAT 2008, UK

In 1971, the Hellenic Air Force ordered brand new F-4E Phantoms, with deliveries starting in 1974. In the early 1990s, the Hellenic AF acquired surplus RF-4Es and F-4Es from the Luftwaffe and U.S. ANG.[111][112]

Following the success of the German ICE program, on 11 August 1997, a contract was signed between DASA of Germany and Hellenic Aerospace Industry for the upgrade of 39 aircraft to the very similar "Peace Icarus 2000" standard.[21] The Hellenic AF operated 34 upgraded F-4E-PI2000 (338 and 339 Squadrons) and 12 RF-4E aircraft (348 Squadron) as of September 2013.

On 5 May 2017, the Hellenic Air Force officially retired the RF-4E Phantom II during a public ceremony.[113]

Iran

In the 1960s and 1970s when the U.S. and Iran were on friendly terms, the U.S. sold 225 F-4D, F-4E, and RF-4E Phantoms to Iran. The Imperial Iranian Air Force saw at least one engagement, resulting in a loss, after an RF-4C was rammed[114] by a Soviet MiG-21 during Project Dark Gene, an ELINT operation during the Cold War.

Iranian Phantom refueling through a boom during Iran-Iraq war, 1982

The Islamic Republic of Iran Air Force Phantoms saw heavy action in the Iran–Iraq War in the 1980s and are kept operational by overhaul and servicing from Iran's aerospace industry.[115] Notable operations of Iranian F-4s during the war included Operation Scorch Sword, an attack by two F-4s against the Iraqi Osirak nuclear reactor site near Baghdad on 30 September 1980,[116] and the attack on H3, a 4 April 1981 strike by eight Iranian F-4s against the H-3 complex of air bases in the far west of Iraq, which resulted in many Iraqi aircraft being destroyed or damaged for no Iranian losses.[117]

On 5 June 1984, two Saudi Arabian fighter pilots shot down two Iranian F-4 fighters. The Royal Saudi Air Force pilots were flying American-built F-15s and fired air-to-air missiles to bring down the Iranian planes. The Saudi fighter pilots had KC-135 aerial tanker planes and Boeing E-3 Sentry AWACS surveillance planes assist in the encounter. The aerial fight occurred in Saudi airspace over the Persian Gulf near the Saudi island Al Arabiyah, about 60 miles northeast of Jubail.[118]

Iranian F-4s were in use as of late 2014;[119] the aircraft reportedly conducted air strikes on ISIS targets in the eastern Iraqi province of Diyala.[120]

Israel
An Israeli F-4E on static display in the Olga's Hill neighborhood of Hadera, Israel

The Israeli Air Force was the largest foreign operator of the Phantom, flying both newly built and ex-USAF aircraft, as well as several one-off special reconnaissance variants. The first F-4Es, nicknamed "Kurnass" (Sledgehammer), and RF-4Es, nicknamed "Orev" (Raven), were delivered in 1969 under the "Peace Echo I" program. Additional Phantoms arrived during the 1970s under "Peace Echo II" through "Peace Echo V" and "Nickel Grass" programs. Israeli Phantoms saw extensive combat during Arab–Israeli conflicts, first seeing action during the War of Attrition.[121] In the 1980s, Israel began the "Kurnass 2000" modernization program which significantly updated avionics.[21] The last Israeli F-4s were retired in 2004.[122]

Japan
JASDF F-4EJ Kais in grey air superiority paint scheme in 2002

From 1968, the Japan Air Self-Defense Force (JASDF) purchased a total of 140 F-4EJ Phantoms without aerial refueling, AGM-12 Bullpup missile system, nuclear control system or ground attack capabilities.[123][124] Mitsubishi built 138 under license in Japan and 14 unarmed reconnaissance RF-4Es were imported. One of the aircraft (17-8440) was the last of the 5,195 F-4 Phantoms to be produced. It was manufactured by Mitsubishi Heavy Industries on 21 May 1981. "The Final Phantom" served with 306th Tactical Fighter Squadron and later transferred to the 301st Tactical Fighter Squadron.[125]

JASDF RF-4 in 2017

Of these, 96 F-4EJs were modified to the F-4EJ Kai (改, modified) standard.[126] 15 F-4EJ and F-4EJ Kai were converted to reconnaissance aircraft designated RF-4EJ. Japan had a fleet of 90 F-4s in service in 2007. After studying several replacement fighters[127][128] the F-35 Lightning II was chosen in 2011.[129] The 302nd Tactical Fighter Squadron became the first JASDF F-35 Squadron at Misawa Air Base when it converted from the F-4EJ Kai on 29 March 2019.[130] The JASDF's sole aerial reconnaissance unit, the 501st Tactical Reconnaissance Squadron, retired their RF-4Es and RF-4EJs on 9 March 2020, and the unit itself dissolved on 26 March. The 301st Tactical Fighter Squadron then became the sole user of the F-4EJ in the Air Defense Command, with their retirement originally scheduled in 2021 along with the unit's transition to the F-35A.[131] However, on 20 November 2020, the 301st Tactical Fighter Squadron announced the earlier retirement of their remaining F-4EJs, concluding the Phantom's long-running career in the JASDF Air Defense Command.[132] Some F-4s are currently operated by the Air Development and Test Wing in Gifu Prefecture.

South Korea
A South Korean F-4E, armed with an AGM-65 Maverick air-to-ground missile, 19 February 1979

The Republic of Korea Air Force purchased its first batch of secondhand USAF F-4D Phantoms in 1968 under the "Peace Spectator" program. The F-4Ds continued to be delivered until 1988. The "Peace Pheasant II" program also provided new-built and former USAF F-4Es.[133]

Spain

The Spanish Air Force acquired its first batch of ex-USAF F-4C Phantoms in 1971 under the "Peace Alfa" program. Designated C.12, the aircraft were retired in 1989. At the same time, the air arm received a number of ex-USAF RF-4Cs, designated CR.12. In 1995–1996, these aircraft received extensive avionics upgrades. Spain retired its RF-4s in 2002.[134][135]

Turkey
Retired Turkish Air Force F-4E Phantom II, serial number 67-0360, housed at the Istanbul Aviation Museum

The Turkish Air Force (TAF) received 40 F-4Es in 1974, with a further 32 F-4Es and 8 RF-4Es in 1977–78 under the "Peace Diamond III" program, followed by 40 ex-USAF aircraft in "Peace Diamond IV" in 1987, and a further 40 ex-U.S. Air National Guard Aircraft in 1991.[136] A further 32 RF-4Es were transferred to Turkey after being retired by the Luftwaffe between 1992 and 1994.[136] In 1995, Israel Aerospace Industries (IAI) implemented an upgrade similar to Kurnass 2000 on 54 Turkish F-4Es which were dubbed the F-4E 2020 Terminator.[21] Turkish F-4s, and more modern F-16s have been used to strike Kurdish PKK bases in ongoing military operations in Northern Iraq.[137] On 22 June 2012, a Turkish RF-4E was shot down by Syrian air defenses while flying a reconnaissance flight near the Turkish-Syrian border.[138][139] Turkey has stated the reconnaissance aircraft was in international airspace when it was shot down, while Syrian authorities stated it was inside Syrian airspace.[140] Turkish F-4s remained in use as of 2015.[119]

On 24 February 2015, two RF-4Es crashed in the Malatya region in the southeast of Turkey, under yet unknown circumstances, killing both crew of two each.[141][142][143] On 5 March 2015, an F-4E-2020 crashed in central Anatolia killing both crew.[144][145] After the recent accidents, the TAF withdrew RF-4Es from active service. Turkey was reported to have used F-4 jets to attack PKK separatists and the ISIS capital on 19 September 2015.[146] The Turkish Air Force has reportedly used the F-4E 2020s against the more recent Third Phase of the PKK conflict on heavy bombardment missions into Iraq on 15 November 2015, 12 January 2016, and 12 March 2016.[147][148]

United Kingdom
Main article: McDonnell Douglas Phantom in UK service
An F-4J of the U.S. Navy (foreground), alongside an F-4K of the Fleet Air Arm (background) wait to be catapulted from USS Independence, March 1975; one of the major differences can be seen by the higher degree of the British aircraft's extendable nose wheel. Both variants were eventually used by the RAF

The United Kingdom bought versions based on the U.S. Navy's F-4J for use with the Royal Air Force and the Royal Navy's Fleet Air Arm. The UK was the only country outside the United States to operate the Phantom at sea, launching them from HMS Ark Royal. The main differences were the use of the British Rolls-Royce Spey engines and of British-made avionics. The RN and RAF versions were given the designation F-4K and F-4M respectively, and entered service with the British military aircraft designations Phantom FG.1 (fighter/ground attack) and Phantom FGR.2 (fighter/ground attack/reconnaissance).[149][150]

Initially, the FGR.2 was used in the ground attack and reconnaissance role, primarily with RAF Germany, while 43 Squadron was formed in the air defence role using the FG.1s that had been intended for the Fleet Air Arm for use aboard HMS Eagle. The superiority of the Phantom over the English Electric Lightning in terms of both range and weapon load, combined with the successful introduction of the SEPECAT Jaguar, meant that, during the mid-1970s, most of the ground attack Phantoms in Germany were redeployed to the UK to replace air defence Lightning squadrons.[151] A second RAF squadron, 111 Squadron, was formed on the FG.1 in 1979 after the disbandment of 892 NAS.

In 1982, during the Falklands War, three Phantom FGR2s of No. 29 Squadron were on active Quick Reaction Alert duty on Ascension Island to protect the base from air attack.[152] After the Falklands War, 15 upgraded ex-USN F-4Js, known as the F-4J(UK) entered RAF service to compensate for one interceptor squadron redeployed to the Falklands.[105]

Around 15 RAF squadrons received various marks of Phantom, many of them based in Germany. The first to be equipped was No. 228 Operational Conversion Unit at RAF Coningsby in August 1968. One noteworthy operator was No. 43 Squadron where Phantom FG1s remained the squadron equipment for 20 years, arriving in September 1969 and departing in July 1989. During this period the squadron was based at Leuchars.[153]

The interceptor Phantoms were replaced by the Panavia Tornado F3 from the late 1980s onwards, and the last British Phantoms were retired in October 1992 when No. 74 Squadron was disbanded.[21][153]

Civilian use

Sandia National Laboratories used an F-4 mounted on a "rocket sled" in a crash test to see the results of an aircraft hitting a reinforced concrete structure, such as a nuclear power plant.[154]

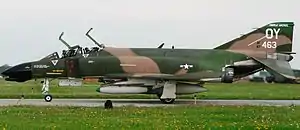

The Collings Foundation F-4D Phantom II, with Vietnam-era "Ritchie/DeBellevue" markings, taxis at Selfridge ANGB, May 2005

One aircraft, an F-4D (civilian registration N749CF), is operated by the Massachusetts-based non-profit organization Collings Foundation as a "living history" exhibit.[21][155] Funds to maintain and operate the aircraft, which is based in Houston, Texas, are raised through donations/sponsorships from public and commercial parties.[156][157]

After finding the Lockheed F-104 Starfighter inadequate, NASA used the F-4 to photograph and film Titan II missiles after launch from Cape Canaveral during the 1960s. Retired U.S. Air Force colonel Jack Petry described how he put his F-4 into a Mach 1.2 dive synchronized to the launch countdown, then "walked the (rocket's) contrail". Petry's Phantom stayed with the Titan for 90 seconds, reaching 68,000 feet, then broke away as the missile continued into space.[19]

NASA's Dryden Flight Research Center acquired an F-4A on 3 December 1965. It made 55 flights in support of short programs, chase on X-15 missions and lifting body flights. The F-4 also supported a biomedical monitoring program involving 1,000 flights by NASA Flight Research Center aerospace research pilots and students of the USAF Aerospace Research Pilot School flying high-performance aircraft. The pilots were instrumented to record accurate and reliable data of electrocardiogram, respiration rate, and normal acceleration. In 1967, the Phantom supported a brief military-inspired program to determine whether an airplane's sonic boom could be directed and whether it could be used as a weapon of sorts, or at least an annoyance. NASA also flew an F-4C in a spanwise blowing study from 1983 to 1985, after which it was returned.[158]

Variants
Main article: List of McDonnell Douglas F-4 Phantom II variants

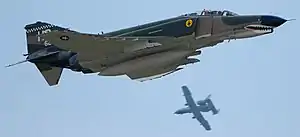

QF-4E AF Serial No. 74-1626 at McGuire AFB in May 2007 with an A-10 in the background
F-4A, B, J, N and S
Variants for the U.S. Navy and the U.S. Marine Corps. F-4B was upgraded to F-4N, and F-4J was upgraded to F-4S.
F-110 Spectre, F-4C, D and E
Variants for the U.S. Air Force. F-4E introduced an internal M61 Vulcan cannon. The F-4D and E were the most numerously built, widely exported, and also extensively used under the Semi Automatic Ground Environment (SAGE) U.S. air defense system.
F-4G Wild Weasel V
A dedicated SEAD variant for the U.S. Air Force with updated radar and avionics, converted from F-4E. The designation F-4G was applied earlier to an entirely different U.S. Navy Phantom.
F-4K and M
Variants for the Royal Navy and Royal Air Force, respectively, re-engined with Rolls-Royce Spey turbofan engines.
F-4EJ and RF-4EJ
Simplified F-4E exported to and license-built in Japan. Some modified for reconnaissance role, carrying photographic and/or electronic reconnaissance pods and designated RF-4EJ.
F-4F
Simplified F-4E exported to Germany.
QRF-4C, QF-4B, E, G, N and S
Retired aircraft converted into remote-controlled target drones used for weapons and defensive systems research by USAF and USN / USMC.
RF-4B, C, and E
Tactical reconnaissance variants.

Operators
F-4Fs of the German Air Force, 21 January 1998
Iranian F-4s, 2009
Spanish Air Force RF-4C Phantom II, 15 June 1993

Operators

Former operators

Culture

Nicknames
An F-4F on display described as the "World's largest distributor of MiG parts", because of the high number of this type of enemy aircraft shot down

The Phantom gathered a number of nicknames during its career. Some of these names included "Snoopy", "Rhino", "Double Ugly",[161] "Old Smokey",[57] the "Flying Anvil", "Flying Footlocker", "Flying Brick", "Lead Sled", the "Big Iron Sled", and the "St. Louis Slugger".[162] In recognition of its record of downing large numbers of Soviet-built MiGs,[163] it was called the "World's Leading Distributor of MiG Parts".[161] As a reflection of excellent performance in spite of its bulk, the F-4 was dubbed "the triumph of thrust over aerodynamics."[164] German Luftwaffe crews called their F-4s the Eisenschwein ("Iron Pig"), Fliegender Ziegelstein ("Flying Brick") and Luftverteidigungsdiesel ("Air Defense Diesel").[165]

Reputation

Imitating the spelling of the aircraft's name, McDonnell issued a series of patches. Pilots became "Phantom Phlyers", backseaters became "Phantom Pherrets", fans of the F-4 "Phantom Phanatics", and call it the "Phabulous Phantom". Ground crewmen who worked on the aircraft are known as "Phantom Phixers".[4]

Several active websites are devoted to sharing information on the F-4, and the aircraft is grudgingly admired as brutally effective by those who have flown it. Colonel (Ret.) Chuck DeBellevue reminisces, "The F-4 Phantom was the last plane that looked like it was made to kill somebody. It was a beast. It could go through a flock of birds and kick out barbeque from the back."[166] It had "A reputation of being a clumsy bruiser reliant on brute engine power and obsolete weapons technology."[167]

The Spook
The Spook

The aircraft's emblem is a whimsical cartoon ghost called "The Spook", which was created by McDonnell Douglas technical artist, Anthony "Tony" Wong, for shoulder patches. The name "Spook" was coined by the crews of either the 12th Tactical Fighter Wing or the 4453rd Combat Crew Training Wing at MacDill AFB. The figure is ubiquitous, appearing on many items associated with the F-4. The Spook has followed the Phantom around the world adopting local fashions; for example, the British adaptation of the U.S. "Phantom Man"[161] is a Spook that sometimes wears a bowler hat and smokes a pipe.[168]

Aircraft on display
Main article: McDonnell Douglas F-4 Phantom IIs on display

As a result of its extensive number of operators and large number of aircraft produced, there are many F-4 Phantom II of numerous variants on display worldwide.

Notable accidents
See also: List of accidents and incidents involving military aircraft

Specifications (F-4E)

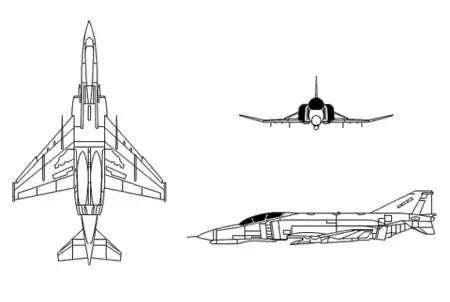

3-side view of the F-4E/F
Structural view of partially disassembled German F-4 Phantoms.
A U.S. Marine Corps RF-4B in September 1982

Data from The Great Book of Fighters[105] Quest for Performance,[20] Encyclopedia of USAF Aircraft,[54] and McDonnell F-4 Phantom: Spirit in the Skies[187]

General characteristics

  • Crew: 2
  • Length: 63 ft 0 in (19.2 m)
  • Wingspan: 38 ft 5 in (11.7 m)
  • Height: 16 ft 5 in (5 m)
  • Wing area: 530 sq ft (49.2 m2)
  • Aspect ratio: 2.77
  • Airfoil: NACA 0006.4–64 root, NACA 0003-64 tip
  • Empty weight: 30,328 lb (13,757 kg)
  • Gross weight: 41,500 lb (18,824 kg)
  • Max takeoff weight: 61,795 lb (28,030 kg)
  • Maximum landing weight: 36,831 lb (16,706 kg)
  • Fuel capacity: 1,994 US gal (1,660 imp gal; 7,550 l) internal, 3,335 US gal (2,777 imp gal; 12,620 l) with 2x 370 US gal (310 imp gal; 1,400 l) external tanks on the outer wing hardpoints and either a 600 or 610 US gal (500 or 510 imp gal; 2,300 or 2,300 l) tank for the center-line station.
  • Powerplant: 2 × General Electric J79-GE-17A after-burning turbojet engines, 11,905 lbf (52.96 kN) thrust each dry, 17,845 lbf (79.38 kN) with afterburner

Performance

  • Maximum speed: 1,280 kn (1,470 mph, 2,370 km/h) at 40,000 ft (12,000 m)
  • Maximum speed: Mach 2.23
  • Cruise speed: 510 kn (580 mph, 940 km/h)
  • Combat range: 370 nmi (420 mi, 680 km)
  • Ferry range: 1,457 nmi (1,677 mi, 2,699 km)
  • Service ceiling: 60,000 ft (18,000 m)
  • Rate of climb: 41,300 ft/min (210 m/s)
  • Lift-to-drag: 8.58
  • Wing loading: 78 lb/sq ft (380 kg/m2)
  • Thrust/weight: 0.86 at loaded weight, 0.58 at MTOW
  • Takeoff roll: 4,490 ft (1,370 m) at 53,814 lb (24,410 kg)
  • Landing roll: 3,680 ft (1,120 m) at 36,831 lb (16,706 kg)
VF-96 F-4J "Showtime 100" armed with Sidewinder and Sparrow missiles, 9 February 1972

Armament

See also

Related development

Aircraft of comparable role, configuration, and era

Related lists

References

Notes
  1. The aircraft was originally designated the AH, and later re-designated F4H, by the United States Navy, while the U.S. Air Force's original designation was "F-110A Spectre". The F-4 designation came about in 1962 when the designation systems for all branches of the U.S. military were unified by the order of U.S. Defense Secretary Robert McNamara. Within McDonnell Aircraft, the F-4 was referred to as Model 98.[2]

Citations
  1. Devine, Jacqueline. "USAF bids farewell to F-4 Phantom". Military 1. Archived from the original on 7 February 2017. Retrieved 6 February 2017.
  2. Swanborough and Bowers 1976, p. 301.
  3. "Boeing: Historical Snapshot: F-4 Phantom II Fighter". www.boeing.com. Retrieved 29 August 2020.
  4. "F-4 Phantoms Phabulous 40th". Boeing. Retrieved : 27 November 2012.
  5. "Phantom 'Phirsts'", Phabulous 40th, Boeing, archived from the original on 29 June 2011, retrieved 27 November 2012.
  6. "World Record Holder", Phabulous 40th, Boeing, archived from the original on 6 July 2009, retrieved 14 December 2007.
  7. Dorr and Bishop 1996, pp. 200–201.
  8. Dorr and Bishop 1996, pp. 188–189.
  9. Donald Spring 1991, p. 26.
  10. Donald Summer 1991, p. 22.
  11. Lake 1992, p. 190.
  12. Lake 1992, p. 203.
  13. "First to Last", Phabulous 40th, Boeing, archived from the original on 13 December 2009, retrieved 19 November 2007.
  14. Thornborough and Davies 1994, p. 13.
  15. Thornborough and Davies 1994, p. 11.
  16. Dorr 2008, p. 61.
  17. "Phabulous 40th: Phantom Development." Archived 7 September 2009 at the Wayback Machine 1978 Commemorative Book. Boeing. Retrieved: 14 February 2008.
  18. Lake 1992, p. 15.
  19. Joiner, Stephen (March 2015). "What Couldn't the F-4 Phantom Do?". Air & Space. Retrieved 5 June 2020.
  20. Loftin, Laurence K. Quest for Performance: The Evolution of Modern Aircraft SP-468. Archived 13 June 2006 at the Wayback Machine Washington, DC: National Aeronautics and Space Administration, History Office, Scientific and Technical Information Branch, 1985. Retrieved: 19 November 2007.
  21. Donald and Lake 2002, pp. 6, 8.
  22. Angelucci 1987, p. 316.
  23. Lake 1992, p. 21.
  24. Eden 2004, p. 278.
  25. Knaack 1978, p. 266.
  26. Gunston 1979, p.246.
  27. "AWG-10 Radar, Antenna Control, Type C-8778/APG-59". Archived from the original on 14 July 2014. Retrieved 10 June 2014.
  28. "McDonnell F-4J Phantom II". Archived from the original on 14 July 2014. Retrieved 10 June 2014.
  29. "Project Bee Line". Archived from the original on 3 May 2012.
  30. Gunston 1981, p. 233.
  31. Dorr 1987, p. 39.
  32. Photos: McDonnell Douglas (Mitsubishi) F-4EJ Kai Phantom II Aircraft Pictures Archived 4 March 2016 at the Wayback Machine. Airliners.net. Retrieved on 28 July 2013.
  33. "Directory: World Air Forces". Archived 11 October 2017 at the Wayback Machine Flight International, 11–17 November 2008, pp. 52–76.
  34. "Final flight farewells Phantom". Archived from the original on 24 April 2017. Retrieved 23 April 2017.
  35. "This day in aviation: 6 December 1959" Archived 26 April 2014 at the Wayback Machine Bryan R. Swopes. Retrieved: 25 April 2014.
  36. Lake 1992, pp. 16, 17.
  37. Stein, Alan J. "Seattle native Dick Gordon orbits the moon on 18 November 1969." Archived 30 May 2008 at the Wayback Machine HistoryLink.org, 13 June 1999. Retrieved: 13 February 2008.
  38. Grossnick, Roy A. "Part 9 – The Sixth Decade 1960–1969." Archived 27 February 2008 at the Wayback Machine history.navy.mil. Retrieved: 21 July 2010.
  39. "United States Naval Aviation 1910–1995." Archived 12 September 2012 at the Wayback Machine Naval Historical Center, 1997. Retrieved: 21 July 2010.
  40. "McDonnell F-4A (F4H-1) Phantom II 'Sageburner'." National Air and Space Museum, Smithsonian Institution. Retrieved: 22 August 2011.
  41. McComb, Enterprise Journal, USM.
  42. "22 November 1961". This Day in Aviation. 22 November 2016. Archived from the original on 15 March 2017. Retrieved 15 March 2017.
  43. Thornborough and Davies 1994, p. 15.
  44. "Phabulous 40th: Current Uses of Titanium: F-4." Archived 9 September 2009 at the Wayback Machine Boeing, 1971. "F-4B/C 1,006 lb. 7.7% of Structure, F-J/E 1,261 lb. 8.5% of Structure". Retrieved: 14 February 2008.
  45. Donald and Lake 1996, p. 268.
  46. Dorr and Donald 1990, p. 198.
  47. McDonnell Douglas F-4D "Phantom II". Archived 23 September 2009 at the Wayback Machine National Museum of the USAF. Retrieved: 20 January 2008.
  48. Angelucci 1987, p. 310.
  49. Donald, David. Warplanes of the Fleet. London: AIRtime Publishing Inc., 2004. ISBN 1-880588-81-1.
  50. Goebel, Greg. "Phantom Over Southeast Asia." Archived 23 January 2008 at the Wayback Machine Vectorsite.net. Retrieved: 18 January 2008.
  51. Higham and Williams 1978.
  52. "McDonnell Douglas F-4S Phantom" Archived 27 February 2010 at the Wayback Machine MAPS Air Museum at Akron-Canton Airport. Retrieved: 28 March 2010.
  53. Richardson and Spick 1984, p. 25.
  54. Knaack 1978
  55. "Fact sheet discussing the F-110." Archived 20 December 2014 at the Wayback Machine National Museum of the U.S. Air Force. Retrieved: 26 May 2008.
  56. Dorr and Bishop 1996, p. 37.
  57. Wetterhahn, Ralph (January 2009). "Where Have All the Phantoms Gone?". Air & Space. Archived from the original on 17 June 2013. Retrieved 9 September 2013.
  58. Dorr and Bishop 1996, p. 38.
  59. Dorr and Bishop 1996, pp. 48–49.
  60. Dorr and Bishop 1996, p. 232.
  61. Knaack 1974, p. 274.
  62. Swanborough and Bowers 1976, p. 188.
  63. Baugher, Joe. "Phantom Service with USAF." Archived 4 November 2010 at the Wayback Machine Joe Baugher's Home Page. Retrieved: 27 February 2010.
  64. Correll, John T. "The Vietnam War Almanac", (PDF). Air Force Magazine, September 2004. (with attribution to USAF Operations Report, 30 November 1973). Retrieved: 19 November 2007.
  65. Thornborough and Davies 1994, p. 222.
  66. Hobson 2001, pp. 268–270.
  67. Dorr and Bishop 1996, pp. 198–199.
  68. "183rd Fighter Wing (183rd FW)." Archived 16 November 2007 at the Wayback Machine Globalsecurity.org. Retrieved: 19 November 2007.
  69. Kirk, R., & Lihani, R. (Producers). (8 February 29). Dogfights "Supersonic" [Transcript, Television series episode]. In Dogfights. Houston, Texas: The History Channel.
  70. Handley, Phil. FU Hero Archived 17 February 2015 at the Wayback Machine. fighterpilotuniversity.com. Retrieved
  71. "Phabulous 40th: Last to Serve." Archived 13 December 2009 at the Wayback Machine Boeing. Retrieved: 19 November 2007.
  72. Bosco, Albert (23 October 2002). "Team Target' keeps Air Force on mark" (Press release). Tyndall Air Force Base: U.S. Air Force. Archived from the original on 1 July 2015. Retrieved 29 June 2015.
  73. Carrara 2006, p. 48.
  74. Melampy 2011, pp. 38–39.
  75. PICTURE: US Air Force gets final QF-4 aerial target Archived 14 December 2013 at the Wayback Machine – Flightglobal.com, 5 December 2013
  76. Echols, SrA Alex (28 May 2015). "Final Tyndall QF-4 takes off". 325th Fighter Wing Public Affairs. Archived from the original on 1 July 2015. Retrieved 28 June 2015.
  77. Phenol unmanned Phantom Mission 31 August 2016 Archived 20 November 2016 at the Wayback Machine combataircraft.net Retrieved 20 November 2016
  78. Archived 23 December 2016 at the Wayback Machine' Retrieved 23 December 2016
  79. USAF QF-4s set for 2017 out of service date Archived 24 December 2015 at the Wayback Machine – Flightglobal.com, 9 November 2015
  80. Thornborough and Davies 1994, p. 260.
  81. Lake 1992, p. 199.
  82. Lake 1992, p. 200.
  83. Dorr 1995, p. 196.
  84. Burgess 1985, p. 388.
  85. Dorr and Bishop 1996, p. 44.
  86. "Navy MiG Killers" Archived 27 July 2011 at the Wayback Machine, phantomphlyers.org
  87. Grossnick 1997.
  88. Hunter, Jamie and Collens, Richard. "In Relentless Pursuit of Excellence:VX-30 Bloodhounds" Archived 26 January 2017 at the Wayback Machine (PDF). Naval Aviation News, September–October 2004, pp. 26–29. Retrieved: 10 November 2015.
  89. Eden 2004, p. 276.
  90. Eden 2004, p. 277.
  91. Crowther, M.J. and Rusty Baker. "The History of VMFA-112." Archived 27 February 2008 at the Wayback Machine Marine Fighter Attack Squadron 112, U.S. Marine Corps. Retrieved: 13 February 2008.
  92. "MiG-21 against the Phantom". Archived from the original on 29 November 2014. Retrieved 14 November 2014.
  93. Anderton 1987, pp. 70–71.
  94. "Nga nói gì về cuộc đấu MiG-21 và F-4 ở Việt Nam(2)". Kienthuc.net.vn. 27 December 2013. Archived from the original on 21 October 2014. Retrieved 14 November 2014.
  95. Migs over North Vietnam: The Vietnam People's Air Force in Combat, 1965–75, Stackpole Military History
  96. "Mig-21 against the Phantom". Archived from the original on 29 November 2014.
  97. "Vietnamese Air-to-Air Victories, Part 2". Archived from the original on 4 March 2013. Retrieved 14 November 2014.
  98. Lake 1992, p. 209.
  99. "RAAF Aircraft Series 3 A69 Phantom". Archived 21 December 2008 at the Wayback Machine RAAF Museum Point Cook. Retrieved: 14 November 2008.
  100. Fricker 2000, p. 59.
  101. Fricker 2000, p. 60.
  102. https://www.arabianaerospace.aero/phantom-wing-finally-re-equipped-with-f-16s.html
  103. Lake 1992, p. 210.
  104. Fricker 2000, p. 80.
  105. Green and Swanborough 2001.
  106. Fricker 2000, p. 81.
  107. List 2006, p. 51.
  108. Jan de Ridder, Dirk. "German Phantoms still going strong." AirForces Monthly magazine, June 2008 issue, p. 40.
  109. "German air force to bid 'Pharewell' to last F-4Fs" Archived 30 June 2013 at the Wayback Machine. Flightglobal.com, 26 June 2013.
  110. "Auf Wiedersehn, Phantom!" Archived 2 January 2014 at the Wayback Machine Aviation Week blog, 1 July 2013.
  111. Dimitropoulos, K. F-4 Phantom (in Greek). Athens: Constantinidis Publications, 1997. ISBN 960-8426-01-4.
  112. Manakanatas, D. and D. Stergiou. Phantom F-4 (in Greek). Athens, Epikoinonies S.A., 2002.
  113. Bozinovski, Igor (8 May 2017). "Hellenic Air Force retires recce squadron, RF-4Es". IHS Jane's 360. Archived from the original on 9 May 2017. Retrieved 9 May 2017.
  114. "Gennadii N. Eliseev Medal record and citation". Archived from the original on 16 September 2011. Retrieved 10 February 2011.
  115. Fricker 2000, p. 64.
  116. Cooper and Bishop Air Enthusiast March/April 2004, pp. 5–6.
  117. Cooper and Bishop Air Enthusiast March/April 2004, pp. 7–8.
  118. Times, Richard Halloran and Special To the New York. "2 Iranian Fighters Reported Downed by Saudi Air Force". Archived from the original on 29 January 2017. Retrieved 11 February 2017.
  119. "US official confirms Iran is bombing Islamic State". Times of Israel. Archived from the original on 29 December 2014. Retrieved 2 December 2014.
  120. "Iran jets bomb Islamic State targets in Iraq – Pentagon". BBC News. Archived from the original on 23 September 2018. Retrieved 20 June 2018.
  121. Nordeen 1991, p. 99.
  122. "Directory: World Air Forces: Israel." Archived 7 January 2012 at the Wayback Machine Flight International, 16–22 November 2004. Retrieved: 14 February 2008.
  123. Fricker 2000, p. 85.
  124. Baugher, Joseph F. "McDonnell F-4EJ Phantom II." Archived 16 April 2009 at the Wayback Machine F-4 history. Retrieved: 31 December 2009.
  125. 17-8440 McDonnell Douglas F-4EJ Kai Archived 28 September 2017 at the Wayback Machine Retrieved 28 September 2017
  126. Baugher, Joseph F. "McDonnell F-4EJ Kai Phantom II." Archived 27 August 2010 at the Wayback Machine F-4 history. Retrieved: 31 December 2009.
  127. Grevatt, Jon. "Japan narrows next-generation fighter requirement choice." Jane's Defence Industry, 21 March 2007. Retrieved: 19 November 2007.
  128. "Japan likely to choose F-35 for F-X requirement – reports." Archived 8 January 2012 at the Wayback Machine Flight International, 14 December 2011. Retrieved: 18 December 2011.
  129. Kallender-Umezu, Paul Japan's Fighter Procurement Crunch 6 June 2015 Defense News Retrieved 15 February 2017
  130. Reim, Garrett (29 March 2019). "Japan's air force stood up its first operational F-35A fighter squadron, the 302nd Tactical Fighter Squadron, on 29 March". Flight Global. Archived from the original on 30 March 2019. Retrieved 13 July 2019.
  131. "Japanese RF-4E Phantoms Have Just Carried Out Their Last Flight". theaviationist.com, 9 March 2020. Quote: "However, the 301 Squadron, also based at Hyakuri, and equipped with the grey F-4EJ “Kai” jets with the squadron emblem, a frog, on the tail, will continue to operate the Phantom for some months..."
  132. https://twitter.com/jasdf_hyakuri/status/1329714345652023297
  133. Lake 1992, p. 218.
  134. "McDonnell Douglas F-4C -Phantom II". (in Spanish) Archived 27 December 2007 at the Wayback Machine Ejército del Aire, Ministerio de Defensa, España. Retrieved: 19 November 2007.
  135. Wierenga, Eddy. "Spanish Air Arms Other Air Forces, Ejército del Aire, FAMET, Armada." Archived 30 November 2007 at the Wayback Machine Scramble (magazine). Retrieved: 19 November 2007.
  136. Fricker 2000, p. 88.
  137. "Turkey kills almost 100 terrorists in offensives led by top commanders." Archived 23 October 2011 at the Wayback Machine Today's Zaman, 23 October 2011.
  138. "Syrian military says it downed Turkish fighter jet." Archived 3 October 2014 at the Wayback Machine BBC, 23 June 2012.
  139. "Turkey to push NATO on jet downing by Syria." Archived 27 June 2012 at the Wayback Machine CBC, 25 June 2012.
  140. "Turkish jet downed by Syria in international airspace." Archived 28 July 2018 at the Wayback Machine BBC. Retrieved: 24 June 2012.
  141. Harro Ranter. "ASN Aircraft accident 24-FEB-2015 McDonnell Douglas RF-4E Phantom II". aviation-safety.net. Archived from the original on 2 April 2015. Retrieved 7 April 2015.
  142. "Two Turkish fighter jets crash, killing four". hurriyetdailynews.com. Archived from the original on 2 April 2015. Retrieved 7 April 2015.
  143. "Four dead as two Turkish military jets crash: official". The Daily Star Newspaper – Lebanon. Archived from the original on 2 April 2015. Retrieved 7 April 2015.
  144. "Turkish F-4 Phantom crashes, two dead". janes.com. Archived from the original on 8 April 2015. Retrieved 7 April 2015.
  145. "Turkish military aircraft crashes, two pilots dead". DailySabah. 5 March 2015. Archived from the original on 2 April 2015. Retrieved 7 April 2015.
  146. "Turkey hits ISIS capital, targets amid war with PKK". Archived from the original on 13 September 2015. Retrieved 14 September 2015.
  147. "Turkish military destroys PKK targets in Northern Iraq". Archived from the original on 4 March 2016. Retrieved 12 March 2016.
  148. "Turkish military hit 44 PKK targets in northern Iraq". Archived from the original on 22 November 2015. Retrieved 12 March 2016.
  149. Donald 1999, p. 11.
  150. Donald 1999, p. 5.
  151. "History". McDonnell-Douglas/BAC F-4K/M Phantom II. Thunder and Lightnings. Archived from the original on 1 June 2013. Retrieved 2 April 2013.
  152. Burden et al. 1986, pp. 417–419.
  153. Jefford 2001.
  154. Footage of 1988 rocket-sled test Archived 21 July 2011 at the Wayback Machine, "Slow motion video." Archived 21 July 2011 at the Wayback Machine Sandia National Laboratories via sandia.gov. Retrieved: 2 March 2011.
  155. "McDonnell Douglas Phantom II." Archived 29 October 2007 at the Wayback Machine Collings Foundation. Retrieved: 19 November 2007.
  156. "Collings Foundation Background." Archived 25 October 2012 at the Wayback Machine Collings Foundation. Retrieved 11 January 2008.
  157. "Sponsors." Archived 1 September 2009 at the Wayback Machine Collings Foundation. Retrieved: 11 January 2008.
  158. "NASA Dryden F-4 Graphics Collection." Archived 1 November 2009 at the Wayback Machine NASA. Retrieved: 1 August 2009.
  159. https://www.asiapacificdefensejournal.com/2020/03/japan-retires-its-last-mcdonnell.html?m=0
  160. https://twitter.com/jasdf_hyakuri/status/1329714345652023297
  161. "Phabulous 40th: Gee Whiz!" Archived 15 December 2009 at the Wayback Machine Boeing. Retrieved: 20 January 2008.
  162. "Basic Aircraft Wisdom and Aircraft Nicknames." Archived 2 November 2007 at the Wayback Machine Bluejacket.com. Retrieved: 19 November 2007.
  163. Thornborough and Davies, 1994. p. 202.
  164. "More QF-4s – And A New Trick for Old Dogs?" Archived 24 January 2008 at the Wayback Machine Defense Industry Daily, 22 January 2008. Retrieved: 26 January 2008. Quote: "These large 2-seat multi-role fighters were a triumph of thrust over aerodynamics, and formed the mainstay of the USAF and U.S. Navy fleets for many years."
  165. "Zwei Alarmrotten mit dem 'Luftverteidigungsdiesel'" (in German) Archived 31 May 2008 at the Wayback Machine Hamburger Abendblatt, 25 November 2004. Retrieved: 26 January 2008.
  166. https://theaviationgeekclub.com/saying-goodbye-old-smokey-phinal-phantom-phlight/
  167. Torrini, R. E. (25 June 2016). "The F-4 Is a Great Fighter With a Bad Reputation". Warisboring.com. Retrieved 3 March 2020.
  168. "Phabulous 40th: UK Spook." Archived 6 July 2009 at the Wayback Machine Boeing. Retrieved: 13 February 2008.
  169. "F-4 Phantom". Wings Over the Rockies. Archived from the original on 19 September 2018. Retrieved 29 September 2018.
  170. Leone, Dario (19 July 2020). "The story of the last MiG kill scored by F-4D 66-7463, the highest-scoring US combat aircraft since the Korean War". The Aviation Geek Club. Retrieved 8 August 2020.
  171. [email protected], Kimberly Barker. "Grove welcomes F-4 Phantom fighter jet to be put on display". Archived from the original on 28 February 2018. Retrieved 10 March 2018.
  172. "F-4D Phantom". Collings Foundation. Archived from the original on 1 December 2017. Retrieved 28 November 2017.
  173. "FAA Registry [N749CF]". Federal Aviation Administration. U.S. Department of Transportation. Archived from the original on 1 December 2017. Retrieved 28 November 2017.
  174. "The McDonnell F4H-1 Phantom II BUNO 145310". Wings and Rotors Air Museum. Archived from the original on 7 November 2009. Retrieved 28 November 2017.
  175. "Wings and Rotors Air Museum proudly presents the McDonnell F4H-1 Phantom II BUNO 145310". Wings and Rotors Air Museum. Archived from the original on 5 January 2010. Retrieved 28 November 2017.
  176. "Airframe Dossier – McDonnell F-4A Phantom II, s/n 145310 USN, c/r N815WF". Aerial Visuals. AerialVisuals.ca. Archived from the original on 1 December 2017. Retrieved 28 November 2017.
  177. "FAA Registry [N815WF]". Federal Aviation Administration. U.S. Department of Transportation. Archived from the original on 27 April 2017. Retrieved 28 November 2017.
  178. Defence, Australian Government, Department of. "RAAF Museum: Royal Australian Air Force". www.airforce.gov.au. Archived from the original on 13 March 2018. Retrieved 15 October 2018.
  179. "Aviation Hall | Royal Museum of the Armed Forces and Military History". www.klm-mra.be. Archived from the original on 15 October 2018. Retrieved 15 October 2018.
  180. "Andersen's F-4 receives face lift; Legacy recalled by CMSAF, wing hist". Andersen Air Force Base. Archived from the original on 16 October 2018. Retrieved 15 October 2018.
  181. "Photos". www.kadena.af.mil. Archived from the original on 15 October 2018. Retrieved 15 October 2018.
  182. "Photos". maps.google.com. Retrieved 22 October 2018.
  183. "Midland Air Museum | Explore our Exhibits". www.midlandairmuseum.co.uk. Retrieved 30 January 2020.
  184. "Das Phantom von Wittmund" (in German). Retrieved 27 July 2020.
  185. https://airheritage.org/aircraft/mcdonnell-douglas-f-4c-phantom-ii/
  186. "The Son Of Singer Dean Martin Killed While Flying His Military Phantom Jet." Archived 27 September 2011 at the Wayback Machine avstop.com. Retrieved: 9 April 2011.
  187. Lake 1992, pp. 92–111.
  188. From 1978 replacing the AIM-7 Sparrow

Bibliography
  • Angelucci, Enzo. The American Fighter. Sparkford, Somerset, UK: Haynes Publishing Group, 1987. ISBN 0-85429-635-2.
  • Beit-Hallahmi, Benjamin. The Israeli Connection: Whom Israel Arms and Why. London: I.G. Tauris, 1987. ISBN 1-85043-069-1.
  • Bishop, Farzad and Tom Cooper. Iranian F-4 Phantom II Units in Combat (Osprey Combat Aircraft #37). Oxford, UK: Osprey Publishing Limited, 2003. ISBN 978-1-84176-658-4.
  • Bowers, Peter M. and Enzo Angellucci. The American Fighter. New York: Orion Books, 1987. ISBN 0-517-56588-9.
  • Burden, Rodney, Michael I. Draper, Douglas A. Rough, Colin R. Smith and David L. Wilton. Falklands: The Air War. London: Arms and Armour Press, 1986. ISBN 0-85368-842-7.
  • Burgess, Richard E. The Naval Aviation Guide, 4th ed. Annapolis, Maryland: Naval Institute Press, 1985. ISBN 0-87021-409-8.
  • Calvert, Denis. Le Tigri della RAF (RAF's Tigers)(in Italian). Aerei magazine N.5, Parma, Italy: Delta editrice, 1991.
  • Carrara, Dino. Phantom Targets: The USAFs Last F-4 Squadron. Air International, Volume 71, no. 5, November 2006. Stamford, Lincolnshire, UK: Key Publishing, pp. 42–48.ISSN 0306-5634.
  • Cooper, Tom and Farzad Bishop. Target Saddam's Reactor: Israeli and Iranian Operations Against Iraqi Planes to Develop Nuclear Weapons. Air Enthusiast, No. 110, March/April 2004. pp. 2–12.ISSN 0143-5450.
  • Davies, Peter E. USAF F-4 Phantom II MiG Killers 1965-68 (Osprey Combat Aircraft #45). Oxford, UK: Osprey Publishing Limited, 2004. ISBN 978-1-84176-656-0.
  • Davies, Peter E. USAF F-4 Phantom II MiG Killers 1972-73 (Osprey Combat Aircraft #55). Oxford, UK: Osprey Publishing Limited, 2005. ISBN 978-1-84176-657-7.
  • Deurenberg, Rudd. Shedding Light on Iranian Phantoms. Air Enthusiast, No. 111, May/June 2004, p. 72. ISSN 0143-5450
  • Donald, David. RAF Phantoms. Wings of Fame. London: Aerospace. Volume 15, 1999. pp. 4–21. ISBN 1-86184-033-0.
  • Donald, David and Jon Lake, eds. Desert Storm: The First Phase. World Air Power Journal. London: Aerospace, Volume 5, Spring 1991.ISSN 0959-7050.
  • Donald, David and Jon Lake, eds. Desert Storm: Gulf Victory. World Air Power Journal. London: Aerospace, Volume 6, Summer 1991.ISSN 0959-7050.
  • Donald, David and Jon Lake, eds. Encyclopedia of World Military Aircraft. London: AIRtime Publishing, 1996. ISBN 1-880588-24-2.
  • Donald, David and Jon Lake, eds. McDonnell F-4 Phantom: Spirit in the Skies. London: AIRtime Publishing, 2002. ISBN 1-880588-31-5.
  • Dorr, Robert F. Navy Phantoms in Vietnam. Wings of Fame, Volume 1, 1995. London: Aerospace Publishing. ISBN 1-874023-68-9.
  • Dorr, Robert F. "McDonnell F3H Demon". Aeroplane. Volume 36, No. 3, March 2008, pp. 58–61. London: IBC.
  • Dorr, Robert F. and Chris Bishop, eds. Vietnam Air War Debrief. London: Aerospace Publishing, 1996. ISBN 1-874023-78-6.
  • Dorr, Robert F. and Jon Lake. Fighters of the United States Air Force. London: Temple Press, 1990. ISBN 0-600-55094-X.
  • Dorr, Robert F. Phantoms Forever. London: Osprey Publishing Limited, 1987. ISBN 0-85045-742-4.
  • Eden, Paul ed. The Encyclopedia of Modern Military Aircraft. London: Amber Books Ltd, 2004. ISBN 1-904687-84-9.
  • Elward, Brad and Peter Davies. US Navy F-4 Phantom II MiG Killers 1965-70 (Osprey Combat Aircraft #26). Oxford, UK: Osprey Publishing Limited, 2001. ISBN 978-1-84176-163-3.
  • Elward, Brad and Peter Davies. US Navy F-4 Phantom II MiG Killers 1972-73 (Osprey Combat Aircraft #30). Oxford, UK: Osprey Publishing Limited, 2002. ISBN 978-1-84176-264-7.
  • Freeman, CJ and Gunston, Bill Consulting ed. The Encyclopedia of World Airpower. Crown Publishers, 1979. ISBN 0-517-53754-0.
  • Fricker, John. "Boeing /McDonnell Douglas F-4 Phantom II Current Operators". World Air Power Journal. London: Aerospace, Volume 40, Spring 2000. ISBN 1-86184-043-8.
  • Green, William and Gordon Swanborough. The Great Book of Fighters. St. Paul, Minnesota: MBI Publishing, 2001. ISBN 0-7603-1194-3.
  • Gimmi, Russell M. Airman: The Life of Richard F. B. Gimmi. Bloomington, Indiana: iUniverse, 2009. ISBN 978-1-4401-5311-2.
  • Grossnick, Roy and William J. Armstrong. United States Naval Aviation, 1910–1995. Annapolis, Maryland: Naval Historical Center, 1997. ISBN 0-16-049124-X.
  • Gunston, Bill ed. The Illustrated History of Fighters. New York, New York: Exeter Books Div. of Simon Schuster, 1981. ISBN 0-89673-103-0.
  • Gunston, Bill Consulting ed. The Encyclopedia of World Airpower. Crown Publishers, 1979. ISBN 0-517-53754-0.
  • Higham, Robin and Carol Williams. Flying Combat Aircraft of USAAF-USAF (Vol.2). Manhattan, Kansas: Sunflower University Press, 1978. ISBN 0-8138-0375-6.
  • Hobson, Chris. Vietnam Air Losses, USAF, USN, USMC, Fixed-Wing Aircraft Losses in Southeast Asia 1961–1973. North Branch, Minnesota: Specialty Press, 2001. ISBN 1-85780-115-6.
  • Howarth, Alan. Spanish Phantoms and Their Legacy. Air Enthusiast 115, January–February 2005, p. 74ISSN 0143-5450
  • Jefford, C.G. RAF Squadrons: A Comprehensive Record of the Movement and Equipment of All RAF Squadrons and Their Antecedents Since 1912:. Shrewsbury, UK: Airlife Publishing, 2nd edition, 2001. ISBN 1-84037-141-2
  • Jones, Lloyd S. U.S. Fighters: 1925–1980s. Fallbrook, California: Aero Publishers, Inc., 1975. ISBN 0-8168-9200-8.
  • Knaack, Marcelle Size. Encyclopedia of U.S. Air Force Aircraft and Missile Systems: Volume 1 Post-World War II Fighters 1945–1973. Washington, DC: Office of Air Force History, 1978. ISBN 0-912799-59-5.
  • Lake Jon. McDonnell F-4 Phantom: Spirit in the Skies. London: Aerospace Publishing, 1992. ISBN 1-880588-04-8.
  • List, Friedrich. "German Air Arms Review". Air International, Volume 70, No. 5, May 2006, pp. 50–57. Stamford, Lincolnshire, UK: Key Publishing.ISSN 0306-5634.
  • Melampy, Jake. "Phantoms West". Air International, Volume 80, No. 1, January 2011, pp. 36–38. Stamford, Lincolnshire, UK: Key Publishing.ISSN 0306-5634.
  • Nordeen, Lon. Fighters Over Israel: The Story of the Israeli Air Force from the War of Independence to the Bekaa Valley. London: Guild Publishing, 1991. ISBN 1-85367-098-7.
  • Richardson, Doug and Mike Spick. F-4 Phantom II (Modern Fighting Aircraft, Volume 4) . New York: Arco Publishing, 1984. ISBN 0-668-06068-9.
  • Swanborough, Gordon and Peter Bowers. United States Military Aircraft Since 1909. Washington, District of Columbia: Smithsonian, 1989. ISBN 0-87474-880-1.
  • Swanborough, Gordon and Peter Bowers. United States Navy Aircraft since 1911. London: Putnam, 1976. ISBN 0-370-10054-9.
  • Taylor, Michael J.H. Jane's American Fighting Aircraft of the 20th century. New York: Mallard Press, 1991. ISBN 0-7924-5627-0.
  • Thetford, Owen. British Naval Aircraft since 1912. London: Putnam, Fourth Edition, 1994, pp. 254–255. ISBN 0-85177-861-5.
  • Thornborough, Anthony M. and Peter E. Davies. The Phantom Story. London: Arms and Armour Press, 1994. ISBN 1-85409-121-2.
  • Wagner, Ray. American Combat Planes, Third Enlarged Edition. New York: Doubleday, 1982. ISBN 0-385-13120-8.
  • Wilson, Stewart. Phantom, Hornet and Skyhawk in Australian Service. Weston Creek, ACT, Australia: Aerospace Publications, 1993. ISBN 1-875671-03-X.
This article is issued from Wikipedia. The text is licensed under Creative Commons - Attribution - Sharealike. Additional terms may apply for the media files.
