North American F-100 Super Sabre

The North American F-100 Super Sabre is an American supersonic jet fighter aircraft that served with the United States Air Force (USAF) from 1954 to 1971 and with the Air National Guard (ANG) until 1979. The first of the Century Series of USAF jet fighters, it was the first USAF fighter capable of supersonic speed in level flight.[2] The F‑100 was designed by North American Aviation as a higher performance follow-on to the F-86 Sabre air superiority fighter.[3]

"Super Sabre" redirects here. For the comic book character, see Super Sabre (comics).

F-100 Super Sabre
A F-100D Super Sabre over Rogers Dry Lake
Role Fighter/fighter-bomber
Manufacturer North American Aviation
First flight 25 May 1953
Introduction 27 September 1954
Retired 1979, United States Air National Guard; 1988, Republic of China Air Force[1]
Primary users United States Air Force
Turkish Air Force
Republic of China Air Force
French Air Force
Produced 1953–1959
Number built 2,294
Developed from North American F-86 Sabre
Developed into North American F-107
The underside of the first of two YF-100A prototypes, s/n 52-5754.

Adapted as a fighter-bomber, the F-100 was superseded by the high speed F‑105 Thunderchief for strike missions over North Vietnam. The F‑100 flew extensively over South Vietnam as the air force's primary close air support jet until being replaced by the more efficient subsonic LTV A-7 Corsair II.[4] The F‑100 also served in other NATO air forces and with other U.S. allies. In its later life, it was often referred to as the Hun, a shortened version of "one hundred".[5]

Design and development
The cockpit of an F-100D

In January 1951, North American Aviation delivered an unsolicited proposal for a supersonic day fighter to the United States Air Force. Named Sabre 45 because of its 45° wing sweep, it represented an evolution of the F-86 Sabre. The mockup was inspected on 7 July 1951, and after over a hundred modifications, the new aircraft was accepted as the F-100 on 30 November 1951. Extensive use of titanium throughout the aircraft was notable.[6] On 3 January 1952, the USAF ordered two prototypes followed by 23 F-100As in February and an additional 250 F-100As in August.

The YF-100A first flew on 25 May 1953, seven months ahead of schedule. It reached Mach 1.04 in spite of being fitted with a de-rated XJ57-P-7 engine. The second prototype flew on 14 October 1953, followed by the first production F-100A on 9 October 1953. The USAF operational evaluation from November 1953 to December 1955 found the new fighter to have superior performance, but declared it not ready for wide-scale deployment due to various deficiencies in the design. These findings were subsequently confirmed during "Project Hot Rod" operational suitability tests.

Six F-100s arrived at the Air Proving Ground Command, Eglin Air Force Base in August 1954. The Air Force Operational Test Center was scheduled to use four of the fighters in operational suitability tests and the other two were to undergo armament tests by the Air Force Armament Center. The Tactical Air Division of AFOTC was conducting the APGC testing under the direction of project office Lieutenant Colonel Henry W. Brown. Initial testing was completed by APGC personnel at Edwards Air Force Base.[7]

Particularly troubling was the yaw instability in certain regimes of flight which produced inertia coupling. The aircraft could develop a sudden yaw and roll which would happen too fast for the pilot to correct and would quickly over-stress the aircraft structure to disintegration. It was under these conditions that North American's chief test pilot, George Welch, was killed while dive testing an early-production F-100A (s/n 52-5764) on 12 October 1954.

Another control problem stemmed from handling characteristics of the swept wing at high angles of attack. As the aircraft approached stall speeds, loss of lift on the tips of the wings caused a violent pitch-up. This particular phenomenon (which could easily be fatal at low altitude where there was insufficient time to recover) became known as the "Sabre dance".

Nevertheless, delays in the Republic F-84F Thunderstreak program pushed the Tactical Air Command to order the raw F-100A into service. Tactical Air Command also requested that future F-100s be fighter-bombers, with the capability of delivering nuclear bombs.

The North American F-107 was a follow-on Mach 2 development of the F-100 with the air intake moved above and behind the cockpit. It was not produced in favor of the Republic F-105 Thunderchief.

Operational history

The F-100A officially entered USAF service on 27 September 1954, with the 479th Fighter Wing at George AFB, California. By 10 November 1954, the F-100As suffered six major accidents[8] due to flight instability, structural failures, and hydraulic system failures, prompting the air force to ground the entire fleet until February 1955. The 479th finally became operational in September 1955. Due to ongoing problems, the air force began phasing out the F-100A in 1958, with the last aircraft leaving active duty in 1961. By that time, 47 aircraft had been lost in major accidents.[9] Escalating tension due to construction of the Berlin Wall in August 1961 forced the USAF to recall the F-100As into active service in early 1962. The aircraft was finally retired in 1970.

The TAC request for a fighter-bomber was addressed with the F-100C which flew in March 1954 and entered service on 14 July 1955, with the 450th Fighter Wing, Foster AFB, Texas. Operational testing in 1955 revealed that the F-100C was at best an interim solution, sharing all the flaws of the F-100A. The uprated J57-P-21 engine boosted performance but continued to suffer from compressor stalls. However, the F-100C was considered an excellent platform for nuclear toss bombing because of its high top speed. The inertia coupling problem was reasonably addressed with the installation of a yaw damper in the 146th F-100C, later retrofitted to earlier aircraft. A pitch damper was added starting with the 301st F-100C, at a cost of US$10,000 per aircraft.[9]

An F-100D showing its elliptical air intake

The addition of "wet" hardpoints meant the F-100C could carry a pair of 275 U.S. gal (1,040 l) and a pair of 200 U.S. gal (770 l) drop tanks. However, the combination caused a loss of directional stability at high speeds and the four tanks were soon replaced by a pair of 450 U.S. gal (1,730 l) drop tanks. The 450s proved scarce and expensive and were often replaced by smaller 335 US gal (1,290 l) tanks. Most troubling to TAC was the fact that, as of 1965, only 125 F-100Cs were capable of utilizing all non-nuclear weapons in the air force inventory, particularly cluster bombs and AIM-9 Sidewinder air-to-air missiles.[9] By the time the F-100C was phased out in June 1970, 85 had been lost in major accidents.

The definitive F-100D aimed to address the offensive shortcomings of the F-100C by being primarily a ground attack aircraft with secondary fighter capabilities. To this effect, the aircraft was fitted with autopilot, upgraded avionics, and, starting with the 184th production aircraft, AIM-9 Sidewinder capability. In 1959, 65 aircraft were modified to also fire the AGM-12 Bullpup air-to-ground missile. To further address the dangerous flight characteristics, the wing span was extended by 26 in (66 cm) and the vertical tail area was increased by 27%.

F-100D of the 417th TFS, 50th TFW post January 1965 ("buzz number" i.e., FW-238 painted over)

The first F-100D (54–2121) flew on 24 January 1956, piloted by Daniel Darnell. It entered service on 29 September 1956 with the 405th Fighter Wing at Langley AFB. The aircraft suffered from reliability problems with the constant speed drive which provides constant-frequency current to the electrical systems. In fact, the drive was so unreliable that the USAF required it to have its own oil system to minimize damage in case of failure. Landing gear and brake parachute malfunctions claimed a number of aircraft, and the refueling probes had a tendency to break away during high speed maneuvers. Numerous post-production fixes created such a diversity of capabilities between individual aircraft that, by 1965, around 700 F-100Ds underwent High Wire modifications to standardize the weapon systems. High Wire modifications took 60 days per aircraft at a cost for the entire project of US$150 million. In 1966, the Combat Skyspot program fitted some F-100Ds with an X band radar transmitter to allow for ground-directed bombing in inclement weather or at night.

In 1961, at England AFB, Louisiana, (401st Tactical Wing), there were four fighter-bomber squadrons. These were the 612th, 613th, 614th and the 615th (Fighting Tigers). During the Berlin Crisis (approximately September 1961) the 614th was deployed to Ramstein Air Base, Germany, to support the West Germans. At the initial briefing, the 614th personnel were informed that, due to the close proximity of the USSR, if an ICBM were to be launched, they would have only 30 minutes to launch the 614th's aircraft and retire to the nearest German bunker.

F-100D in trial of zero-length-launch system. Pilot is Maj R. Titus. (USAF photo)

In 1967, the USAF began a structural reinforcement program to extend the aircraft's service life from the designed 3,000 flying hours to 7,000. The USAF alone lost 500 F-100Ds, predominantly in accidents. After one aircraft suffered wing failure, particular attention was paid to lining the wings with external bracing strips. During the Vietnam War, combat losses constituted as many as 50 aircraft per year. On 7 June 1957, an F-100D fitted with an Astrodyne booster rocket making 150,000 lbf (667.2 kN) of thrust successfully performed a zero length launch (ZeLL).[10] This was accomplished with the addition of a large canister to the underside of the aircraft. This canister contained a black powder compound and was ignited electro-mechanically, driving the jet engine to minimal ignition point.[11] The capability was incorporated into late-production aircraft. After a major accident, the USAF Thunderbirds reverted from F-105 Thunderchiefs to the F-100D which they operated from 1964 until it was replaced by the F-4 Phantom II in 1968.[12]

A USAF KB-50D of the Air Proving Ground Command at Eglin AFB Florida, carrying out the first triple-point refuelling operation with three F-100Cs in 1956

The F-100 was the subject of many modification programs over the course of its service. Many of these were improvements to electronics, structural strengthening, and projects to improve ease of maintenance. One of these was the replacement of the original afterburners of the J-57 engines with the more advanced afterburners from retired Convair F-102 Delta Dagger interceptors. This modification changed the appearance of the aft end of the F-100, doing away with the original "petal-style" exhaust. The afterburner modification started in the 1970s and solved maintenance problems with the old type as well as operational problems, including compressor stall issues.

The F-100F two-seat trainer entered service in 1958. It received many of the same weapons and airframe upgrades as the F-100D, including the new afterburners. By 1970, 74 F-100Fs were lost in major accidents.

By 1972, the F-100 was mostly phased out of USAF active service and turned over to tactical fighter groups and squadrons in the ANG. In Air National Guard units, the F-100 was eventually replaced by the F-4 Phantom II, LTV A-7 Corsair II, and A-10 Thunderbolt II, with the last F-100 retiring in 1979, with the introduction of the F-16 Fighting Falcon. In foreign service, the Royal Danish Air Force and Turkish Air Force F-100s soldiered on until 1982.

Over the lifetime of its USAF service, a total of 889 F-100 aircraft were destroyed in accidents, involving the deaths of 324 pilots.[13] The deadliest year for F-100 accidents was 1958, with 116 aircraft destroyed, and 47 pilots killed.[13]

After Super Sabres were withdrawn from service, a large number were converted into remote-controlled drones (QF-100) under the USAF Full Scale Aerial Target (FSAT) program for use as targets for various anti-aircraft weapons, including missile-carrying fighters and fighter-interceptors, with FSAT operations being conducted primarily at Tyndall AFB, Florida. A few F-100s also found their way into civilian hands, primarily with defense contractors supporting USAF and NASA flight test activities at Edwards AFB, California.

Project Slick Chick
An RF-100A in flight, marked with the AF serial number of a Northrop F-89 Scorpion (53-2600)
North American RF-100A-10-NA Super Sabre 53-1551. Used by Detachment 1 of 7407th Support Sqn of 7499th Support Group. Crashed near Neidenbach, West Germany 1 October 1956. Pilot ejected safely.

North American received a contract to modify six F-100As to RF-100As carrying five cameras, three Fairchild K-17 cameras (see Fairchild K-20 camera) in a trimetrogon mounting for photo-mapping and two Fairchild K-38 cameras in a split vertical mounting with the cameras mounted horizontally, shooting via a mirror angled at 45° to reduce the effects of airframe vibrations. All gun armament was removed and the cameras installed in the gun and ammunition bays covered by a bulged fairing under the forward fuselage.[14]

The selected pilots trained on the F-100A at Edwards Air Force Base and George Air Force Base in California and then at Palmdale Air Force Base for training with the actual RF-100As they would be deployed with. Flight tests revealed that the RF-100A in its intended operational fit of four external tanks was lacking in directional and longitudinal stability, requiring careful handling and close attention to speed limitations for the drop tanks.

Once pilot training was completed in April 1955, three aircraft were deployed to Bitburg Air Base in Germany, flying to Brookley AFB in Mobile, Alabama, cocooned, loaded on an aircraft carrier and delivered to Short Brothers at Sydenham, Belfast, for re-assembly and preparation for flight. At Bitburg they were allocated to Detachment 1 of the 7407th Support Squadron, and commenced operations flying over Eastern Bloc countries at high altitude (over 50,000 ft) to acquire intelligence on military targets. Many attempts were made to intercept these aircraft to no avail, with some photos of fighter airfields clearly showing aircraft climbing for attempted intercepts. The European detachment probably only carried out six missions between mid-1955 and mid-1956 when the Lockheed U-2 took over as the deep penetration aerial reconnaissance asset.

Three RF-100As were also deployed to the 6021st Reconnaissance Squadron at Yokota Air Base in Japan, but details of operations there are not available. Two RF-100A aircraft were lost in accidents, one due to probable overspeeding which caused the separation of one of the drop tanks and resulted in complete loss of control, and the other due to an engine flame-out. In mid-1958, all four remaining RF-100As were returned to the US and later supplied to the Republic of China Air Force in Taiwan.

Project High Wire
F-100D Super Sabre delivering Napalm during a military exercise.
Main article: Project High Wire

"High Wire" was a modernization program for selected F-100Cs, Ds and Fs. It comprised two modifications: an electrical rewiring upgrade, and a heavy maintenance and IRAN (inspect and repair as necessary) upgrade. Rewiring upgrade operations consisted of replacing old wiring and harnesses with improved maintainable designs. Heavy maintenance and IRAN included new kits, modifications, standardized configurations, repairs, replacements and complete refurbishment.

This project required all new manuals and incremented (i.e. -85 to -86) block numbers. All later production models, especially the F models, included earlier High Wire modifications. New manuals included colored illustrations and had the Roman numeral (I) added after the aircraft number (i.e. T.O. 1F-100D(I)-1S-120, 12 January 1970).[15][16]

Total production 2,294

Fighter and Close Air Support missions
F-100Ds of the 416th Tactical Fighter Squadron at Bien Hoa Air Base, South Vietnam, in late June or early July 1965
A USAF F-100D firing rockets in South Vietnam, 1967
A USAF F-100F of the 352d TFS at Phu Cat Air Base, South Vietnam, 1971

On 16 April 1961, six Super Sabres were deployed from Clark Air Base in the Philippines to Don Muang Royal Thai Air Force Base in Thailand for air defense purposes; the first F-100s to enter combat in Southeast Asia.[17] From that date until their redeployment in 1971, the F-100s were the longest serving U.S. jet fighter-bomber to fight in the Vietnam War. Serving as MiG combat air patrol escorts for F-105 Thunderchiefs, Misty FACs, and Wild Weasels over North Vietnam, and then relegated to close air support and ground attacks within South Vietnam.

On 18 August 1964, the first F-100D shot down by ground fire, piloted by 1st Lt Colin A. Clarke, of the 428th TFS; Clarke ejected and survived. On 4 April 1965, as escorts protecting F-105s attacking the Thanh Hoa Bridge, F-100 Super Sabres fought the USAF's first air-to-air jet combat duel in the Vietnam War, in which an F-100 piloted by Captain Donald W. Kilgus of the 416th Fighter Squadron shot down a Vietnam People's Air Force MiG-17, using cannon fire, while another fired AIM-9 Sidewinder missiles.[18] The surviving North Vietnamese pilot confirmed three of the MiG-17s had been shot down.[19] Although recorded by the U.S. Air Force as a probable kill, this represented the first aerial victory by the U.S. Air Force in Vietnam.[20] However, the small force of four MiG-17s had penetrated the escorting F-100s to claim two F-105s.

The F-100 was soon replaced by the F-4C Phantom II for MiG CAP which pilots noted suffered for lacking built-in guns for dogfights.[21]

The Vietnam War was not known for utilizing activated Army National Guard, Air National Guard or other U.S. Reserve units; but rather, had a reputation for conscription during the course of the war. During a confirmation hearing before Congress in 1973, Air Force General George S. Brown, who had commanded the 7th Air Force during the war, stated that five of the best Super Sabre squadrons in Vietnam were from the Air National Guard.[22] This included the (120 TFS) of the Colorado Air National Guard, the 136 TFS of the New York Air National Guard TFS, the 174 TFS of the Iowa Air National Guard and the 188 TFS of the New Mexico Air National Guard. The fifth unit was a regular AF squadron manned by mostly air national guardsmen.

The Air National Guard F-100 squadrons increased the regular USAF by nearly 100 Super Sabres in theater, averaging, for the Colorado ANG F-100s, 24 missions a day, delivering ordnance and munitions with a 99.5% reliability rate.[23] From May 1968 to April 1969, the ANG Super Sabres flew more than 38,000 combat hours and more than 24,000 sorties. Between them, at the cost of seven F-100 Air Guard pilots killed (plus one staff officer) and the loss of 14 Super Sabres to enemy action, the squadrons expended over four million rounds of 20mm shells, 30 million pounds of bombs and over 10 million pounds of napalm against their enemy.[24]

The Hun was also deployed as a two-seat F-100F model which saw service as a "fast FAC" or Misty FAC in North Vietnam and Laos, spotting targets for other fighter-bomber aircraft, performing road reconnaissance, and conducting Search And Rescue missions as part of the top-secret Commando Sabre project, based out of Phu Cat and Tuy Hoa air bases.

By the war's end, 242 F-100 Super Sabres had been lost in Vietnam, as the F-100 was progressively replaced by the F-4 Phantom II and the F-105 Thunderchief.[25] The Hun had logged 360,283 combat sorties during the war and its wartime operations came to end on 31 July 1971.[26] The four fighter wings with F-100s flew more combat sorties in Vietnam than over 15,000 P-51 Mustangs flew during World War II. After 1965, they did not fly into North Vietnam and mainly performed close air support missions. Despite the April 1965 dogfight, the air force classified the engagement as resulting in a "probable" kill, and no F-100 was ever officially credited with any aerial victories. No F-100 in Vietnam was lost to enemy fighters, but 186 were shot down by anti-aircraft fire, seven were destroyed from Vietcong attacks on airbases, and 45 crashed in operational incidents.[27]

Wild Weasel

The F-100 was also the first Wild Weasel air defense suppression aircraft, whose specially trained crews were tasked with locating and destroying enemy missile defenses. Four F-100F Wild Weasel Is were fitted with an APR-25 vector radar homing and warning receiver, IR-133 panoramic receivers with greater detection range, and KA-60 panoramic cameras. The APR-25 could detect early-warning radars and emissions from SA-2 Guideline tracking and guidance systems. These aircraft deployed to Korat Royal Thai Air Force Base, Thailand, in November 1965, began flying combat missions with the 388th Tactical Fighter Wing in December. They were joined by three more aircraft in February 1966. All Wild Weasel F-100Fs were eventually modified to fire the AGM-45 Shrike anti-radiation missile.

Algerian war
F-100D 54-2122 (the second receipt by the French Air Force) with the colors of the 3/11 "Corsica" at Toul-Rosières Air Base in June 1970.

French Air Force Super Sabres of the EC 1/3 Navarre flew combat missions, striking from bases within France against targets in Algeria. The planes were based at Reims, refuelling at Istres on the return flight from Algeria.[28] The F-100 was the main fighter-bomber in the French Air Force during the 1960s, until it was replaced by the Jaguar.

Turkey

Turkish Air Force F-100 units were used during the Turkish invasion of Cyprus in 1974. Together with F-104G Starfighters, they provided close air support to Turkish ground troops and bombed targets around Nicosia.[29] In March 1987, Turkish Super Sabres bombed Kurdish bases in Northern Iraq.[30]

Taiwan

Taiwan took delivery of 119 F-100As, 4 RF-100As and 14 F-100Fs and lost a number of F-100As and Fs in the course of service, but never lost a single RF-100As in either combat or accident. Those four RF-100As had never been sent on reconnaissance mission over mainland China as they could only produce photographic images of mediocre quality at best. Moreover, after each flying hour, the ground personnel had to spend over one hundred hours on the aircraft maintenance. All of the RF-100As were returned to the US after one year and 11 months (1 January 1959 – 1 December 1960) in ROCAF service.

Achievements
An F-100D of the United States Air Force Thunderbirds on display at the National Museum of the United States Air Force.

Source: Knaack[9]

  • The first operational aircraft in United States Air Force inventory capable of exceeding the speed of sound in level flight.
  • On 29 October 1953, the first YF-100A prototype set a world speed record of 755.149 mph (656.207 kn, 1,215.295 km/h) at low altitude.
  • On 20 August 1955, an F-100C set a supersonic world speed record of 822.135 mph (714.416 kn, 1,323.098 km/h).
  • On 4 September 1955, an F-100C won the Bendix Trophy, covering 2,235 mi (2,020 nmi, 3,745 km) at an average speed of 610.726 mph (530.706 kn, 982.868 km/h).
  • On 26 December 1956, two F-100Ds became the first-ever aircraft to successfully perform buddy refueling.
  • On 13 May 1957, three F-100Cs set a new world distance record for single-engine aircraft by covering the 6,710 mi (5,835 nmi, 10,805 km) distance from London to Los Angeles in 14 hours and 4 minutes. The flight was accomplished using inflight refueling.
  • On 7 August 1959, two F-100Fs became the first-ever jet fighters to fly over the North Pole.
  • On 16 April 1961, the first USAF combat jets to enter the Vietnam War.
  • On 4 April 1965, the first USAF aircraft to engage in aerial jet combat during the Vietnam War, while escorting F-105 Thunderchiefs to target.
  • The United States Air Force Thunderbirds operated the F-100C from 1956 until 1964. After briefly converting to the F-105 Thunderchief, the team flew F-100Ds from July 1964 until November 1968, before converting to the F-4E Phantom II.

Costs

The costs are in contemporary United States dollars and have not been adjusted for inflation.[9]

F-100AF-100CF-100DF-100F
R&D23.2 million for the program or 10,134 prorated per aircraft
Airframe748,259439,323448,216577,023
Engine217,390178,554162,995143,527
Electronics8,54912,05010,90413,667
Armament19,90521,12566,23066,332
Ordnance20,80712,1258,6843,885
Flyaway cost1,014,910663,181697,029804,445
Additional modification costs224,048110,559105,604
Cost per flying hour583583
Maintenance cost per flying hour215249249249

Variants
Prototype YF-100A (serial number: 52-5754)
F-100As different tail fins, 1955
F-100D-50-NH
A QF-100D pilotless drone near Tyndall Air Force Base, Florida, in 1986.
F-100F at Wright-Patterson National Air Force Museum
YF-100A
Prototype, model NA-180 two built, s/n 52-5754 and 5755.[31]
YQF-100
Nine test unmanned drone version: two D-models, one YQF-100F F-model,see DF-100F, and six other test versions.[32]
F-100A
Single-seat day fighter; 203 built, model NA-192.[31]
RF-100A ("Slick Chick")
Six F-100A aircraft modified for photo reconnaissance in 1954. Unarmed, with camera installations in lower fuselage bay. Used for overflights of Soviet Bloc countries in Europe and the Far-East. Retired from USAF service in 1958, the surviving four aircraft were transferred to the Republic of China Air Force and retired in 1960.
F-100B
See North American F-107
F-100BI
Proposed interceptor version of F-100B, did not advance beyond mock-up.
F-100C
Seventy Model NA-214 and 381 Model NA-217.[31] Additional fuel tanks in the wings, fighter-bomber capability, probe-and-drogue refueling capability, uprated J57-P-21 engine on late production aircraft. First flight: March 1954; 476 built.
TF-100C
One F-100C converted into a two-seat training aircraft.
F-100D
Single-seat fighter-bomber, more advanced avionics, larger wing and tail fin, landing flaps. First flight: 24 January 1956; 1,274 built.
F-100F
Two-seat training version, armament decreased from four to two cannon. First flight: 7 March 1957; 339 built.
DF-100F
This designation was given to one F-100F that was used as drone director.[32]
NF-100F
Three F-100Fs used for test purposes, the prefix "N" indicates that modifications prevented return to regular operational service.
TF-100F
Specific Danish designation given to 14 F-100Fs exported to Denmark in 1974 in order to distinguish these from the 10 F-100Fs delivered 1959–1961.
QF-100
Another 209 D and F models were ordered and converted to unmanned radio-controlled Full Scale Aerial Target[33] drones and drone directors for testing and destruction by modern air-to-air missiles used by current U.S. Air Force fighter jets.[32]
F-100J
Unbuilt all-weather export version for Japan
F-100K
Unbuilt design study for a two-seat F-100F powered by a J57-P-55 engine
F-100L
Unbuilt design study for a single-seat F-100D powered by a J57-P-55 engine
F-100N
Unbuilt version with simplified avionics for NATO customers
F-100S
Proposed French-built F-100F with Rolls-Royce Spey turbofan engine

Operators
Operational Danish AF F-100D Super Sabre in 1965
North American F-100 Super Sabre of the Turkish Air Force displayed at Istanbul Aviation Museum, Turkey
 Denmark
Flyvevåbnet operated a total of 72 aircraft. 48 F-100Ds and 10 Fs were delivered to Denmark from 1959 to 1961 as MDAP equipment. The F-100 replaced the F-84G Thunderjet as a strike fighter in three squadrons; 725, 727 and 730. The F-100s of Eskadrille 725 were replaced by Saab F-35 Draken in 1970 and in 1974 14 two-seated ex-USAF TF-100F were bought. The last Danish F-100s were retired from service in 1982, replaced by F-16s. The surviving MDAP F-100s were transferred to Turkey (21 F-100Ds and two F-100Fs), while six TF-100Fs were sold for target towing.[34][35]
 France
The Armee de l'Air was the first Western-aligned air force to receive the F-100 Super Sabre. The first aircraft arrived in France on 1 May 1958. A total of 100 aircraft (85 F-100Ds and 15 F-100Fs) were supplied to France, and assigned to the NATO 4th Allied Tactical Air Force. They were stationed at German-French bases. French F-100s were used on combat missions flying from bases in France against targets in Algeria. In 1967, France left NATO, and German-based F-100s were transferred to France, using bases vacated by the USAF. The last unit on F100D/F was the Escadron 4/11 Jura, based at Djibouti, which kept the Super Sabre until 1978.
 Taiwan (Republic of China)
It was the only allied air force to operate the F-100A model. The first F-100 was delivered in October 1958. It was followed by 15 F-100As in 1959, and by 65 more F-100As in 1960. In 1961, four unarmed RF-100As were delivered.[36] Additionally, 38 ex-USAF/Air National Guard F-100As were delivered later, to bring the total strength to 118 F-100As and four RF-100As. F-100As were retrofitted with the F-100D vertical tail with its AN/APS-54 tail-warning radar and equipped to launch Sidewinder air-to-air missiles. Several were lost in intelligence missions over the People's Republic of China.
 Turkey
The Turk Hava Kuvvetleri received 206 F-100C, D and F Super Sabres. Most came from USAF stocks, and 21 F-100Ds and two F-100Fs were supplied by Denmark. Turkish F-100s saw extensive action during the 1974 military operation against Cyprus.
 United States
List of F-100 units of the United States Air Force
  • F100 D E.C 3/11"corse"
  • F100 D E.C 1/3"navarre
  • F100 D E.C 4/11"Jura"
  • F100 C Skyblazers Aerobatic Team

Surviving aircraft

Denmark
Retired RDAF F-100F Super Sabre
F-100F
  • 56-3927/GT-927 – Denmark Flying Museum, Stauning

France
F-100D

Germany
F-100D
F-100F

Italy
F-100D
  • 54-2290 – Aviano Air Base gate guardian; marked as 56-2927 "Thor's Hammer" used in Vietnam, wrong colors though.

Netherlands
F-100D
  • 54-2265 - (painted as 54-1871, 32nd FIS) – On display at the Nationaal Militair Museum, Soesterberg. After service with the French Air Force it was returned to USAF, repainted in USAF markings and in 1976 to gate guardian at RAF Wethersfield, England. It was then removed 20 January 1988 and reported at the time to be destined for AMARC, to be held in storage on behalf of USAFM (now NMUSAF).[41]

Taiwan
F-100A
  • 53-1550 – Taiwan International (Chiang Kai Shek).[42]
  • 53-1571 – Tamkang University.[43]
  • 53-1577 – National Tainan Industrial Vocational High School Aircraft Maintenance Department.[44]
  • 53-1589 – National Taiwan University.[45]
  • 53-1696 – Chung Cheng Armed Forces Preparatory School, CCAFPS.[46]

Turkey
F-100C "3-089" at Istanbul Aviation Museum, Turkey
F-100C
F-100D
F-100F

United Kingdom
F-100D
F-100F

United States
A CH-54 Tarhe lifting an F-100A to Hill Air Force Base, Utah for static display, 1979
F-100D delivered to Carolinas Aviation Museum
Hun at Castle Air Museum, California

Airworthy
F-100F
YF-100A
F-100A
F-100C
F-100D
An F-100D Super Sabre at the Udvar-Hazy Center.
F-100F
F-100F at the USAF Museum

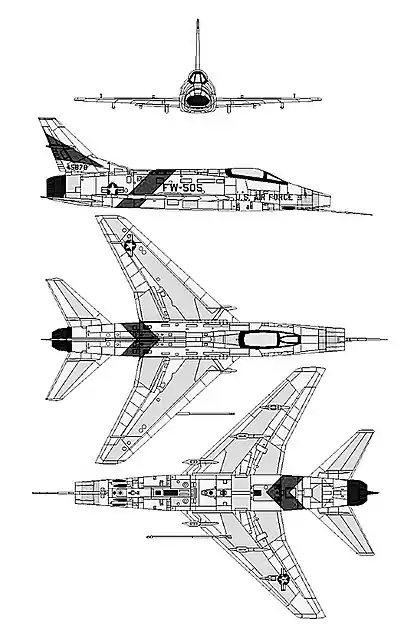

Specifications (F-100D)
D-model nose shot, oval intake
D-model cockpit, instrument panel

Data from Quest for Performance[157]

General characteristics

  • Crew: 1
  • Length: 50 ft (15 m)
  • Wingspan: 38 ft 9 in (11.81 m)
  • Height: 16 ft 2.75 in (4.9467 m)
  • Wing area: 400 sq ft (37 m2)
  • Aspect ratio: 3.76
  • Airfoil: NACA 64A007[158]
  • Zero-lift drag coefficient: CD0.0130
  • Drag area: 5.0 sq ft (0.46 m2)
  • Empty weight: 21,000 lb (9,525 kg)
  • Gross weight: 28,847 lb (13,085 kg)
  • Max takeoff weight: 34,832 lb (15,800 kg)
  • Powerplant: 1 × Pratt & Whitney J57-P-21/21A afterburning turbojet engine, 10,200 lbf (45 kN) thrust dry, 16,000 lbf (71 kN) with afterburner

Performance

  • Maximum speed: 924 mph (1,487 km/h, 803 kn)
  • Maximum speed: Mach 1.4
  • Range: 1,995 mi (3,211 km, 1,734 nmi)
  • Service ceiling: 50,000 ft (15,000 m)
  • Rate of climb: 22,400 ft/min (114 m/s)
  • Lift-to-drag: 13.9
  • Wing loading: 72.1 lb/sq ft (352 kg/m2)
  • Thrust/weight: 0.55

Armament

Avionics

  • Minneapolis-Honeywell MB-3 automatic pilot[161]
  • AN/AJB-1B low-altitude bombing system[161]
  • AN/APR-26 rearward radar warning[161]

See also

Related development

Aircraft of comparable role, configuration, and era

Related lists

References

Notes
  1. "Historical Listings: China, Nationalist (Taiwan) (NCH)." Archived 10 June 2011 at the Wayback Machine World Air Forces. Retrieved: 19 May 2011.
  2. Rendall, Ivan (1999). Rolling Thunder: jet combat from World War II to the Gulf War (First U.S. ed.). New York: Simon & Schuster Inc. p. 110. ISBN 0-684-85780-4.
  3. "North American F-100C "Super Sabre"". fas.org. 29 June 1999. Retrieved 23 July 2017.
  4. "A-7 Corsair II". globalsecurity.org. Retrieved 23 July 2017.
  5. "F-100 Super Sabre; Historical Snapshot". Boeing. Retrieved 23 July 2017.
  6. "Production Fighter Tops Speed of Sound." Popular Mechanics, December 1953, p. 81.
  7. Playground News, 26 August 1954, "6 F-100s At Eglin For Test."
  8. Including the death of British Air Commodore Geoffrey D. Stephenson while on an exchange tour
  9. Knaack, Marcelle Size. Encyclopedia of U.S. Air Force Aircraft and Missile Systems: Volume 1 Post-World War II Fighters 1945–1973. Washington, DC: Office of Air Force History, 1978. ISBN 0-912799-59-5.
  10. "North American Aviation NF-100D (56-2904)". thexhunters.com. Retrieved 23 July 2017.
  11. Davis, Jim (20 May 2008). "1958 F-100 Uses Short "Runway"". YouTube. Retrieved 23 July 2017.
  12. Martin Caidin's book Thunderbirds was written while the team flew F-100s, he was the only journalist to ever fly with them.
  13. "Official USAF F-100 accident rate table (PDF)." Archived 22 July 2011 at the Wayback Machine afsc.af.mil. Retrieved: 12 April 2011.
  14. Gordon, Doug. "Through the Curtain". Flypast, December 2009. Key Publishing. Stamford. ISSN 0262-6950.
  15. USAF F-100 Super Sabre – Flight Manual – Technical Order: 1F-100D(I)-1S-120; 12 January 1970.
  16. USAF F-100 Super Sabre – Flight Manual – Technical Order: 1F-100C(I)-1S-65; 2 February 1971.
  17. Anderton 1987, p. 57.
  18. Davies and Menard 2011, cover image of F-100 attacking MiG-17, p. 21: photo of Kilgus's F-100.
  19. Toperczer, Dr. Istvan. Air War Over North Viet Nam: The Vietnamese People's Air Force 1949–1977. Carrollton, Texas: Squadron/Signal Publications, 1998. ISBN 0-89747-390-6.
  20. Dorr, Robert F. (18 April 2014). "F-100 Versus MiG-17: The Air Battle Nobody Told You About". defensemedianetwork.com. Retrieved 23 July 2017.
  21. Anderton 1987, p. 71.
  22. Anderton 1987, p. 136.
  23. Anderton 1987, p. 144.
  24. Anderton 1987, pp. 136, 145.
  25. Hobson 2001, p. 269.
  26. Thompson 2008, pp. 73–74.
  27. Dorr, Robert F. (12 September 2013). "F-100 Super Sabre Flew Most Missions in Vietnam". defensemedianetwork.com. Retrieved 23 July 2017.
  28. Flintham 1989, p. 82.
  29. Flintham 1989, pp. 16-17.
  30. Flintham 1989, p. 180.
  31. Thompson 1999, p. 64.
  32. Baugher, Joe. "QF-100 Drone." USAAC/USAAF/USAF Fighters, 30 January 2010. Retrieved: 12 April 2011.
  33. Gustin, Emmanuel. "Acronyms and Codenames FAQ, FSAT". hazegray.org. Retrieved 23 July 2017.
  34. page 46 & 54 in Jan Jørgensen: "Flyvevåbnet – Scenes from Danish military aviation history", 2010, Nordic Airpower, ISBN 978-87-993688-0-8 (in English)
  35. Schrøder, Hans (1991). "Royal Danish Airforce". Ed. Kay S. Nielsen. Tøjhusmuseet, 1991, p. 1–64. ISBN 87-89022-24-6.
  36. "North American RF-100A Super Sabre". joebaugher.com. 27 November 1999. Retrieved 23 July 2017.
  37. "F-100 Super Sabre/55-2736." Archived 25 March 2016 at the Wayback Machine Virtual Aviation Museum. Retrieved: 7 March 2013.
  38. "F-100F on Display." Archived 25 March 2016 at the Wayback Machine Virtual Aviation Museum. Retrieved: 4 September 2009.
  39. "F-100 Super Sabre/54-2185." Archived 25 March 2016 at the Wayback Machine Virtual Aviation Museum. Retrieved: 7 March 2013.
  40. "F-100 Super Sabre/56-3944." Archived 25 March 2016 at the Wayback Machine Virtual Aviation Museum. Retrieved: 4 September 2009.
  41. "F-100 Super Sabre/54-2265." nmm.nl. Retrieved: 14 October 2017.
  42. "F-100 Super Sabre/53-1550." airliners.net. Retrieved: 7 March 2013.
  43. "F-100 Super Sabre/53-1571." airliners.net. Retrieved: 7 March 2013.
  44. " Retrieved: 7 March 2013.
  45. "F-100 Super Sabre/53-1589." airliners.net Retrieved: 7 March 2013.
  46. "F-100 Super Sabre/53-1696." airliners.net. Retrieved: 7 March 2013.
  47. "F-100 Super Sabre/54-2009/3-089". tayyareci.com. Retrieved: 12 March 2011.
  48. "F-100 Super Sabre/54-2245/E-245". tayyareci.com. Retrieved: 12 March 2011.
  49. "F-100 Super Sabre/56-3788/8-788". tayyareci.com. Retrieved: 12 March 2011.
  50. "F-100 Super Sabre/54-2157." North East Aircraft Museum. Retrieved: 16 June 2013.
  51. "F-100 Super Sabre/54-2165." Imperial War Museum Duxford Retrieved: 23 July 2017.
  52. "F-100 Super Sabre/54-2174." Midland Air Museum. Retrieved: 23 July 2017.
  53. "F-100 Super Sabre/54-2196." Norfolk and Suffolk Aviation Museum. Retrieved: 23 July 2017.
  54. "F-100 Super Sabre/54-2223." Newark Air Museum. Retrieved: 23 July 2017.
  55. "F-100 Super Sabre/54-2613." Dumfries and Galloway Aviation Museum. Retrieved: 23 July 2017.
  56. "F-100 Super Sabre/56-3938." Lashendene Air Warfare Museum. Retrieved: 23 July 2017.
  57. "FAA Registry: N417FS." faa.gov Retrieved: 6 March 2016.
  58. "FAA Registry: N26AZ." faa.gov Retrieved: 7 March 2013.
  59. "F-100 Super Sabre/56-3844." Collings Foundation Retrieved: 12 June 2015.
  60. "FAA Registry: N416FS." faa.gov Retrieved: 6 March 2016.
  61. "FAA Registry: N2011V." faa.gov Retrieved: 6 March 2016.
  62. "FAA Registry: N419FS." faa.gov Retrieved: 6 March 2016.
  63. "FAA Registry: N418FS." faa.gov Retrieved: 6 March 2016.
  64. "F-100 Super Sabre/52-5755." Air Force Flight Test Museum. Retrieved: 1 June 2015.
  65. "F-100 Super Sabre/52-5759." aerialvisuals.ca Retrieved: 23 July 2017.
  66. "F-100 Super Sabre/52-5760." Archived 2 January 2017 at the Wayback Machine Air Force Flight Test Museum. Retrieved: 1 June 2015.
  67. "F-100 Super Sabre/52-5761." New England Air Museum. Retrieved: 23 July 2017.
  68. "F-100 Super Sabre/52-5762. aerialvisuals.ca Retrieved: 23 July 2017.
  69. "F-100 Super Sabre/52-5770." aerialvisuals.ca Retrieved: 23 July 2017.
  70. "F-100 Super Sabre/52-5773." aerialvisuals.ca Retrieved: 23 July 2017.
  71. "F-100 Super Sabre/52-5777." Hill Aerospace Museum. Retrieved: 23 July 2017.
  72. "F-100 Super Sabre/53-1532." aerialvisuals.ca Retrieved: 23 July 2017.
  73. "F-100 Super Sabre/53-1533." aerialvisuals.ca Retrieved: 23 July 2017.
  74. "F-100 Super Sabre/53-1553." aerialvisuals.ca Retrieved: 23 July 2017.
  75. "F-100 Super Sabre/53-1559." aerialvisuals.ca Retrieved: 23 July 2017.
  76. "F-100 Super Sabre/53-1573." aerialvisuals.ca Retrieved: 23 July 2017.
  77. "F-100 Super Sabre/53-1578." aerialvisuals.ca Retrieved: 23 July 2017.
  78. "F-100 Super Sabre/53-1600." aerialvisuals.ca Retrieved: 12 June 2015.
  79. "F-100 Super Sabre/53-1629." aerialvisuals.ca Retrieved: 12 June 2015.
  80. "F-100 Super Sabre/53-1684." aerialvisuals.ca Retrieved: 12 June 2015.
  81. "F-100 Super Sabre/53-1688." aerialvisuals.ca Retrieved: 12 June 2015.
  82. "F-100 Super Sabre/53-1709." Castle AFB Retrieved: 23 July 2017.
  83. "F-100 Super Sabre/53-1712." Grissom Air Museum. Retrieved: 5 March 2013.
  84. "F-100 Super Sabre/53-1716." aerialvisuals.ca Retrieved: 1 June 2015.
  85. "F-100 Super Sabre/54-1748." aerialvisuals.ca Retrieved: 12 June 2015.
  86. "F-100 Super Sabre/54-1752." aerialvisuals.ca Retrieved: 1 June 2015.
  87. "F-100 Super Sabre/54-1753." aerialvisuals.ca Retrieved: 1 June 2015.
  88. "USAF Serial Number Search (54-1784)". Retrieved 14 February 2018.
  89. "Prairie Aviation Museum (F-100)". Retrieved 1 March 2018.
  90. "USAF Serial Number Search (54-1785)". Retrieved 14 February 2018.
  91. "F-100 Super Sabre/54-1786." March Field Museum. Retrieved: 23 July 2017.
  92. "F-100 Super Sabre/54-1823." Pima Air & Space Museum. Retrieved: 23 July 2017.
  93. "F-100 Super Sabre/54-1986." Air Force Armament Museum. Retrieved: 23 July 2017.
  94. "F-100 Super Sabre/54-1993." aerialvisuals.ca Retrieved: 1 June 2015.
  95. "F-100 Super Sabre/54-2005." aerialvisuals.ca Retrieved: 1 June 2015.
  96. "F-100 Super Sabre/54-2091." Yanks Air Museum. Retrieved: 5 March 2013.
  97. "FAA Registry: N2011M." faa.gov Retrieved: 22 October 2018.
  98. "F-100 Super Sabre/54-2106." aerialvisuals.ca Retrieved: 1 June 2015.
  99. "F-100 Super Sabre/54-2145." aerialvisuals.ca Retrieved: 1 June 2015.
  100. "F-100 Super Sabre/54-2151." aerialvisuals.ca Retrieved: 1 June 2015.
  101. "F-100 Super Sabre/54-2281." City of Glendale, Arizona. Retrieved: 2 November 2013.
  102. "F-100 Super Sabre/54-2299." Archived 29 October 2015 at Archive-It City of Palmdale, California. Retrieved: 23 July 2017.
  103. "F-100 Super Sabre/55-2855." aerialvisuals.ca Retrieved: 12 June 2015.
  104. "F-100 Super Sabre/55-2884." aerialvisuals.ca Retrieved: 1 June 2015.
  105. "F-100 Super Sabre/55-3503." Archived 30 October 2013 at the Wayback Machine Pueblo Weisbrod Aircraft Museum. Retrieved: 6 March 2013.
  106. "F-100 Super Sabre/55-3595." aerialvisuals.ca Retrieved: 1 June 2015.
  107. "F-100 Super Sabre/55-3650." aerialvisuals.ca Retrieved: 1 June 2015.
  108. "F-100 Super Sabre/55-3667." aerialvisuals.ca Retrieved: 1 June 2015.
  109. "F-100 Super Sabre/55-3678." aerialvisuals.ca Retrieved: 1 June 2015.
  110. "F-100 Super Sabre/55-3754." National Museum of the USAF. Retrieved: 16 July 2017.
  111. "F-100 Super Sabre/55-3805." aerialvisuals.ca Retrieved: 1 June 2015.
  112. "F-100 Super Sabre/56-2928." aerialvisuals.ca Retrieved: 1 June 2015.
  113. "F-100 Super Sabre/56-2940." aerialvisuals.ca Retrieved: 1 June 2015.
  114. "F-100 Super Sabre/56-2967." aerialvisuals.ca Retrieved: 12 June 2015.
  115. "F-100 Super Sabre/56-2993." aerialvisuals.ca Retrieved: 1 June 2015.
  116. "F-100 Super Sabre/56-2995." aerialvisuals.ca Retrieved: 1 June 2015.
  117. "F-100 Super Sabre/56-3000." aerialvisuals.ca Retrieved: 1 June 2015.
  118. "F-100 Super Sabre/56-3008." aerialvisuals.ca Retrieved: 1 June 2015.
  119. "F-100 Super Sabre/56-3020." aerialvisuals.ca Retrieved: 1 June 2015.
  120. "F-100 Super Sabre/56-3022." aerialvisuals.ca Retrieved: 12 June 2015.
  121. "F-100 Super Sabre/56-3025." Selfridge Military Air Museum. Retrieved: 12 June 2015.
  122. "F-100 Super Sabre/56-3046." aerialvisuals.ca Retrieved: 12 June 2015.
  123. "F-100 Super Sabre/56-3055." aerialvisuals.ca Retrieved : 1 June 2015.
  124. "F-100 Super Sabre/56-3081." MAPS Air Museum. Retrieved: 6 March 2013.
  125. "F-100 Super Sabre/56-3141." Archived 6 August 2017 at the Wayback Machine Planes of Fame. Retrieved: 12 June 2015.
  126. "F-100 Super Sabre/56-3154." Archived 30 June 2013 at the Wayback Machine Lone Star Flight Museum. Retrieved: 6 March 2013.
  127. "F-100 Super Sabre/56-3187." aerialvisuals.ca Retrieved: 1 June 2015.
  128. "F-100 Super Sabre/56-3208." aerialvisuals.ca Retrieved: 12 June 2015.
  129. "F-100 Super Sabre/56-3220." aerialvisuals.ca Retrieved: 1 June 2015.
  130. "F-100D Super Sabre/56-3288." Aerospace Museum of California. Retrieved: 23 July 2017.
  131. "F-100 Super Sabre/56-3299." aerialvisuals.ca Retrieved: 1 June 2015.
  132. "F-100 Super Sabre/56-3320." aerialvisuals.ca Retrieved: 1 June 2015.
  133. "F-100 Super Sabre/56-3417." Wings Over the Rockies Museum. Retrieved: 23 July 2017.
  134. "F-100 Super Sabre/56-3426." aerialvisuals.ca Retrieved: 1 June 2015.
  135. "F-100 Super Sabre/56-3434." aerialvisuals.ca Retrieved: 12 June 2015;
  136. https://www.nbbd.com/godo/vac/un-scramble/1610-unscramble.pdf
  137. "F-100 Super Sabre/56-3440." Steven F. Udvar-Hazy Center Retrieved: 23 July 2017.
  138. "F-100 Super Sabre/56-3727." aerialvisuals.ca Retrieved: 1 June 2015.
  139. "F-100 Super Sabre/56-3730." aerialvisuals.ca Retrieved: 1 June 2015.
  140. "F-100 Super Sabre/56-3812." aerialvisuals.ca Retrieved: 12 June 2015.
  141. "F-100 Super Sabre/56-3813." aerialvisuals.ca Retrieved: 1 June 2015.
  142. "F-100 Super Sabre/56-3814." aerialvisuals.ca Retrieved: 12 June 2015.
  143. "F-100 Super Sabre/56-3819." aerialvisuals.ca Retrieved: 12 June 2015.
  144. "F-100 Super Sabre/56-3825." aerialvisuals.ca Retrieved: 12 June 2015.
  145. "F-100 Super Sabre/56-3825." aerialvisuals.ca Retrieved: 12 June 2015.
  146. "F-100 Super Sabre/56-3832." Archived 30 June 2017 at the Wayback Machine Evergreen Aviation and Space Museum. Retrieved: 23 July 2017.
  147. "North American F-100F Super Sabre." National Museum of the USAF. Retrieved: 12 September 2015.
  148. "F-100 Super Sabre/56-3855." aerialvisuals.ca Retrieved: 12 June 2015.
  149. "F-100 Super Sabre/56-3897." aerialvisuals.ca Retrieved: 1 June 2015.
  150. "F-100 Super Sabre/56-3894." Selfridge Military Air Museum. Retrieved: 12 June 2015.
  151. "F-100 Super Sabre/56-3899." Glenn L. Martin Aviation Museum. Retrieved: 1 June 2015.
  152. "F-100 Super Sabre/56-3904." Aviation Cadet Museum. Retrieved: 23 July 2017.
  153. "F-100 Super Sabre/56-3905." Glenn L. Martin Aviation Museum. Retrieved: 1 June 2015.
  154. "F-100 Super Sabre/56-3929." aerialvisuals.ca Retrieved: 12 June 2015.
  155. "F-100 Super Sabre/56-3982." Hangar 25 Air Museum. Retrieved: 23 July 2017.
  156. "F-100 Super Sabre/56-3990." Archived 26 April 2015 at the Wayback Machine CAF – Highland Lakes Squadron. Retrieved: 12 June 2015.
  157. Loftin, L.K. Jr. Quest for Performance: The Evolution of Modern Aircraft." NASA SP-468. Retrieved: 22 April 2006.
  158. Lednicer, David. "The Incomplete Guide to Airfoil Usage". m-selig.ae.illinois.edu. Retrieved 16 April 2019.
  159. Rhodes, Jeffrey P. "Fighters." USAF Magazine: Archives, 20 February 1997, p. 15.
  160. "Archived copy" (PDF). Archived from the original (PDF) on 23 November 2015. Retrieved 21 June 2015.CS1 maint: archived copy as title (link)
  161. NASM: F-100D

Bibliography
  • Anderton, David A. North American F-100 Super Sabre. London: Osprey Publishing Limited, 1987. ISBN 0-85045-662-2 .
  • Başara, Levent. F-100 Super Sabre in Turkish Air Force – Türk Hava Kuvvetlerinde F-100 Super Sabre. Hobbytime, Ankara-Turkey, 2011. EAN 8680157170010 (in Turkish and English)
  • Davies, Peter E. North American F-100 Super Sabre. Ramsbury, Wiltshire, UK: Crowood Press, 2003. ISBN 1-86126-577-8.
  • Davies, Peter E. and David W. Menard. F-100 Super Sabre Units of the Vietnam War (Osprey Combat Aircraft, No. 89) Oxford, UK: Osprey, 2011. ISBN 978-1-84908-446-8.
  • Donald, David. "North American F-100 Super Sabre". Century Jets: USAF Frontline Fighters of the Cold War. London: AIRtime Publishing Inc., 2003. ISBN 1-880588-68-4.
  • Drendel, Lou. Century Series in Color (Fighting Colors). Carrollton, Texas: Squadron/Signal Publications, 1980. ISBN 0-89747-097-4.
  • Flintham, Victor (1989). Air wars and aircraft: A Detailed Record of Air Combat, 1945 to the Present. Arms and Armour Press. ISBN 0-85368-779-X.
  • Gordon, Doug. "Through the Curtain". Flypast, December 2009 issue. Key Publishing. Stamford. ISSN 0262-6950
  • Green, William. The World's Fighting Planes. London: Macdonald, 1964.
  • Gunston, Bill. Fighters of the Fifties. Minneapolis, Minnesota: Specialty Press Publishers & Wholesalers, Inc., 1981. ISBN 0-933424-32-9.
  • Hobson, Chris. Vietnam Air Losses: United States Air Force, Navy and Marine Corps Fixed-Wing Aircraft Losses in Southeast Asia, 1961–1973. North Branch, Minnesota: Specialty Press, 2001. ISBN 1-85780-115-6.
  • Jenkins, Dennis R. and Tony R. Landis. Experimental & Prototype U.S. Air Force Jet Fighters. North Branch, Minnesota: Specialty Press, 2008. ISBN 978-1-58007-111-6.
  • Pace, Steve. X-Fighters: USAF Experimental and Prototype Fighters, XP-59 to YF-23. St. Paul, Minnesota: Motorbooks International, 1991. ISBN 0-87938-540-5.
  • Thompson, Kevin F. "North American NA-180>NA-262 YF-100A/F-100A/C/D/F Super Sabre." North American: Aircraft 1934–1999 – Volume 2. Santa Ana, California: Johnathan Thompson, Greens, Inc., 1999. ISBN 0-913322-06-7.
  • Thompson, Warren E. "Centuries Series: F-100 Super Sabre." Combat Aircraft, Volume 9, Issue 3, June–July 2008, London: Ian Allan Publishing.

Weaver, Michael E. "The F-100 Super Sabre as an Air Superiority Fighter." Air Power History. 67: 1 (Spring 2020), 8-15.

Bibliography for further reading
This article is issued from Wikipedia. The text is licensed under Creative Commons - Attribution - Sharealike. Additional terms may apply for the media files.
